It is a new type of mixing equipment with high efficiency and high precision. The

machine has a reasonable and simple structure, operates in a closed, and is easy

for material input and output (manual or vacuum feeding). The cylinder is made of

stainless steel, which is easy to clean. The machine's is driven by a motor and a

planetary reducer, ensuring fast mixing speed. It is particularly suitable for mixing

materials with large density differences and high mixing ratios. All of the machine

that come into contact with the material are made of stainless steel.

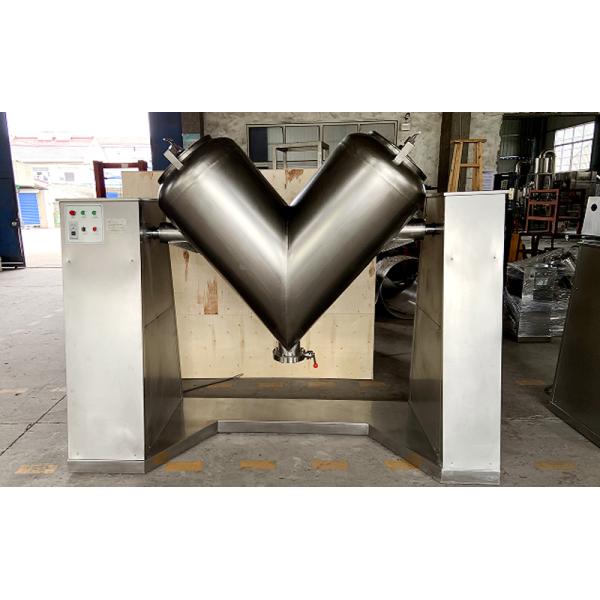

The V-type mixer is composed of two cylindrical drums welded together, with the

container shape being asymmetric relative to the axis. Due to the rotary, the

powder particles in the inclined cylinder continuously alternate, divide, and merge;

the material is randomly transferred from one area to another, while the particles

of the body slip against each other, undergoing multiple spatial superpositions,

and continuously distributing on the newly generated surfaces. This process

repeatedly performs shearing and diffusive mixing.

1. Compact structure, easy operation, stable operation, and noiseless.

2. Can adapt to the mixing of various materials, with uniformity rate of up to 98%.

3. When mixing frictional materials, the V-shaped mixer performs well.

4. When mixing materials with goodity and similar properties, good mixing results

can be achieved.

5. Can operate under vacuum feeding and disc valve discharging, achieving

dust-free operation.

6. mixing materials prone to agglomeration and adhesion, it is necessary to install

forced stirring blades or diffusion plates in the mixing equipment.

7. Adjustable speed timing device, and specially designed forced stirring can

effectively ensure the uniformity of material mixing.

The V-type mixer is suitable for mixing powdery or granular materials in industries

such as chemical, food, pharmaceutical, feed, ceramics, metallurgy.
