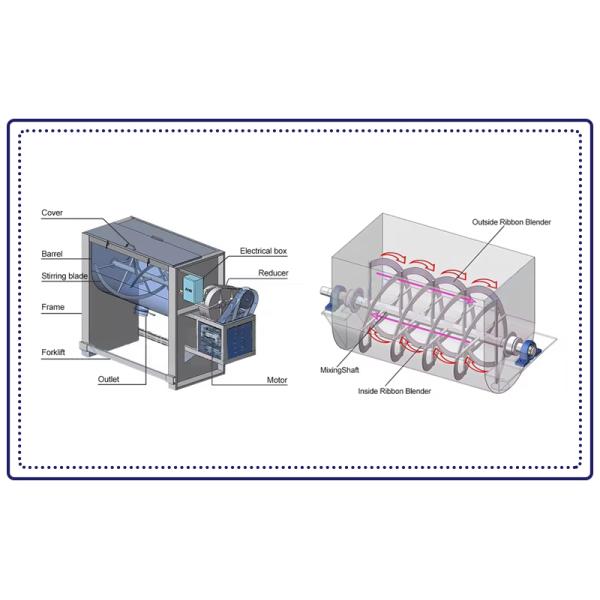

The horizontal screw mixer consists of a U-shaped container, screw stirring blades, and

transmission components. The U-shaped long cylindrical structure ensures that the

materials (powders, semi-liquids) move with low resistance within the cylinder. The positive

and negative rotating screws are installed on the same horizontal shaft, a low-power and

high-efficiency mixing environment. The screw blades are usually made in two or three

layers. The outer layer of the screw pushes the material from sides to the center, while the

inner layer of the screw pushes the material from the center to both sides, which can create

more eddies in the flowing. This speeds up the mixing speed and improves the uniformity of

the mix.

Under the action of the spiral ribbon on the agitator shaft, the inner and outer spiral

ribbons turn over the material in a large, the inner spiral ribbon moves the material to both

sides, the outer spiral ribbon moves the material from both sides to the inside, so that the

material is mixed and forth. In addition, some of the material is pushed by the spiral ribbon

to move axially and radially, thus forming a convective cycle. The material quickly and

evenly mixed in a short period of time.

1. Flexible disassembly: The main shaft of the screw needs to be connected to the flange of

the drive shaft When maintaining or repairing the horizontal screw mixer, or when changing

the type of stirring shaft, the entire disassembly is very quick. Because the design of the dis

is very convenient, the U-shaped cylinder and the two end plates can be completely welded,

avoiding the accumulation of materials due to the large size of the cylinder and existence of

gaps when connected to the flange. This also better reduces the possibility of residues.

2. Convenient cylinder cover design: The overall design of the cylinder is more flexible,

meeting the requirements of half-open, fully open, and completely closed. The fully open

design is more suitable for occasions with higher cleanliness requirements. cylinder cover

door is supported by gas springs, providing higher safety.

3. Driving advantage: All products are selected according to standard requirements. The

driving method uses a-connected gear reducer. Although this design has a large torque, it has

good reliability and very low noise. For larger mixers, a belt transmission design is added In

case of accidents, the transmission components can be effectively protected.

4. Stable mixing process: A stable mixing process reduces damage to fragile materials, and

the addition a flying knife structure also serves a crushing function.

5. Not affected by particle size: Under feasible factors, the mixing effect of the horizontal screw

mixer is not by the size or density of the particles. It also has a good mixing effect on viscous

materials.
