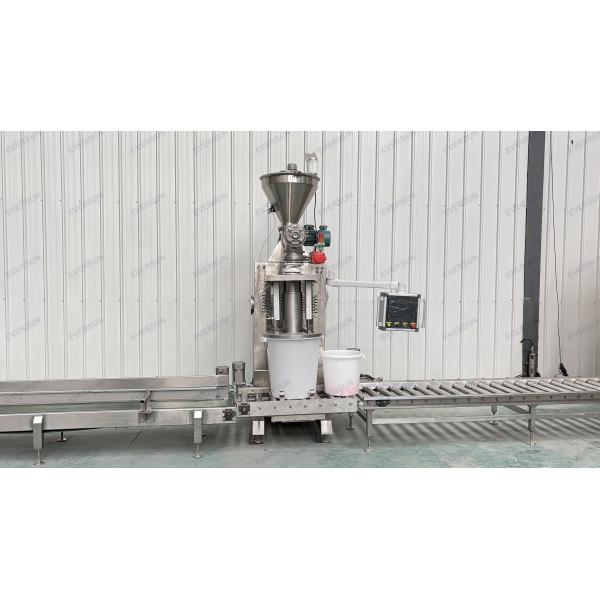

The equipment has automatic weighing, compact and reasonable structure, novel and

beautiful appearance, low noise, low energy consumption, easy operation, which

production efficiency, reduces workers' labor intensity, and improves working environment.

Combined with belt feeding, the material enters the buffer silo through the belt, and the is

fed into the weighing hopper through the belt controlled by variable frequency. The feeding

amount is controlled by controlling the speed of the belt. Once the weighing hop reaches

the set weight, the pneumatic gate of the weighing hopper automatically opens, and the

material directly enters the packaging bag from the weighing hopper. The clamping device is

opened through the control system, and the bag is taken away by the conveyor belt, with

manual assistance for sealing.

When the equipment is powered on and running, the motor drives the pulley to rotate at

high speed, creating a vacuum in the packaging's discharge mechanism. At the same time,

due to the weight of the material at the inlet, the material leaks into the inlet, and then is

discharged from outlet to complete a full packaging process. At this point, when the material

bag is full and its weight reaches the pre-set weight (which can be adjusted by weights or

setting an automatic controller), the signal from the limit switch or sensor will provide

feedback for comparison. At this point, the solenoid valve will operate close the outlet, stop

the filling, and then the bag will be automatically dropped by the automatic bag-dropping

device or the clamping device at the pocket will loosened, and the bag will be manually dropped.

It should be noted that different packaging machines may have some differences in details,

and the specific operating procedures may vary.

1. Fully automatic weighing and packaging machine touch screen control system, supports

Chinese and English, easy and practical operation.

2. The vibrating feeder operates smoothly and quietly, does not damage the raw materials,

and uses a precision counting control device to ensure accuracy. Each feeder in the

equipment can be turned on or off as needed for production.

3. Each feeder is equipped with a material full stop device, low material alarm or stop device,

ensuring accuracy in every bag. The equipment has a self-diagnosis function, which can

automatically alarm or stop in case of failure (users can choose to alarm or stop), and is

equipped with multiple emergency stop buttons for convenient operation.

4. The fully automatic weighing and packaging machine can achieve automatic arrangement,

counting, filling, sealing, packaging, and conveying of materials. The number of products

packaged can be easily adjusted, the number of bags can be controlled, and the number of

packages can be automatically displayed, making it easy to count the machine's workload.

5. The equipment has reliable protective functions (all dangerous parts are equipped with

protective devices).
