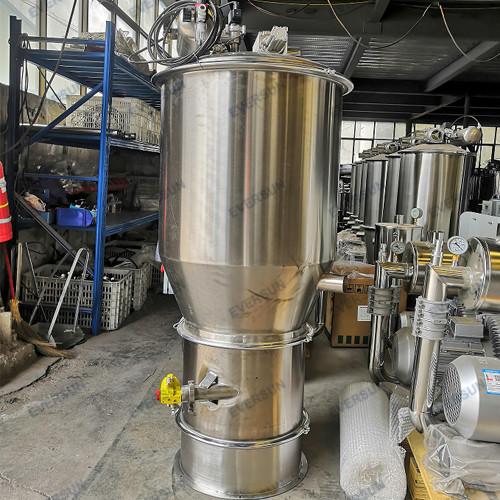

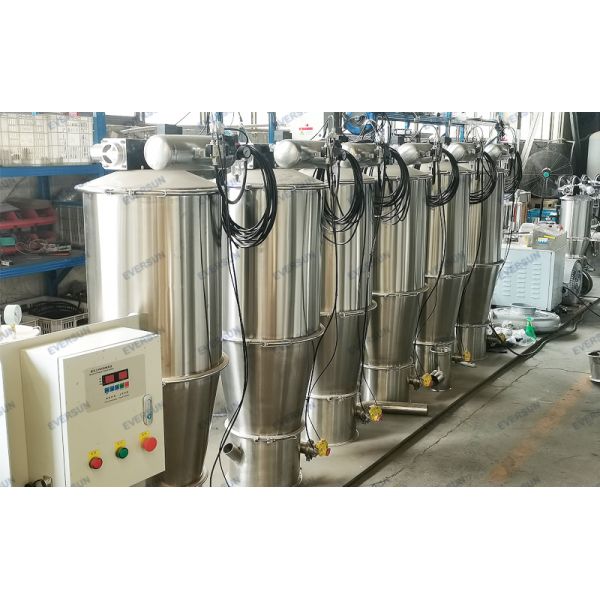

Vacuum feeder, also known as vacuum conveyor, is a kind of dust-free and sealed

pipeline conveying equipment that uses vacuum suction to convey granular powdery

materials. It uses the pressure difference between vacuum and ambient space to

form gas flow in the pipeline, which drives the movement of powdery materials,

completing the conveying of powders. It is now widely used in chemical, pharmaceutical,

food, metallurgy, building materials, agricultural and sideline industries and other light

and industrial industries.

1. Connect power and start the system: Confirm that the power connection is normal,

then turn on the power switch. Start the control of the real equipment and open the

operation interface.

2. Set parameters: Set the required feeding parameters on the operation interface,

such as feeding time, feeding speed.

3. Check the vacuum pump: Check whether the vacuum pump in the equipment is

operating normally and confirm the working status of the pump.

4. Prepare materials: the materials to be fed into the hopper of the feeder, pay

attention to maintain the sealing of the hopper to prevent vacuum leakage.

5. Adjust the position the suction pipe: Adjust the position of the suction pipe of the

feeder to aim at the materials.

6. Start suction: Press the start button to start the suction the vacuum suction cup,

after the vacuum suction pipe sucks the materials, the feeding process begins, and the

materials are sucked up and placed at the required position.

7.Turn off suction and end operation: After feeding is completed, turn off the suction of

the vacuum suction pipe to release the materials. Check whether the feeding process is

and confirm that the materials have been successfully fed. Turn off the control system

and power of the vacuum feeder to end the operation.

1. Safety: No electricity or mechanical energy is required, and the entire system can

be controlled and operated solely through compressed air. The process does not

generate heat, ensuring safety and explosion-proofing. It effectively eliminates static

electricity of materials and does not pollute the surrounding environment.

2. Simp: Automatic control allows for easy and convenient operation with the ability to

set the suction and discharge time within 0 to 30 seconds.

3. Hygiene: conveying prevents dust leakage and cross-contamination, meeting GMP

standards and CIP requirements. It can provide aseptic products with a vacuum feeder.

4. Lightweight Small volume and light weight make installation simple and quick.

5. Quiet: No vibration and low noise.

6. Clean: Dust-free operation, modular design, and dead ends. Disassembly, cleaning,

and material replacement are quick and convenient.

7. Economy: One machine can be used alternately on multiple sets of equipment,

high efficiency and energy saving. There is no need for warm-up or standby, and the

operation and maintenance costs are low.

8. Efficiency: The conveying flow rate reach up to 10 tons per hour, with a horizontal

conveying distance of up to 80m and a vertical conveying height of up to 30, effectively

solving the stratification phenomenon of powder particles.
