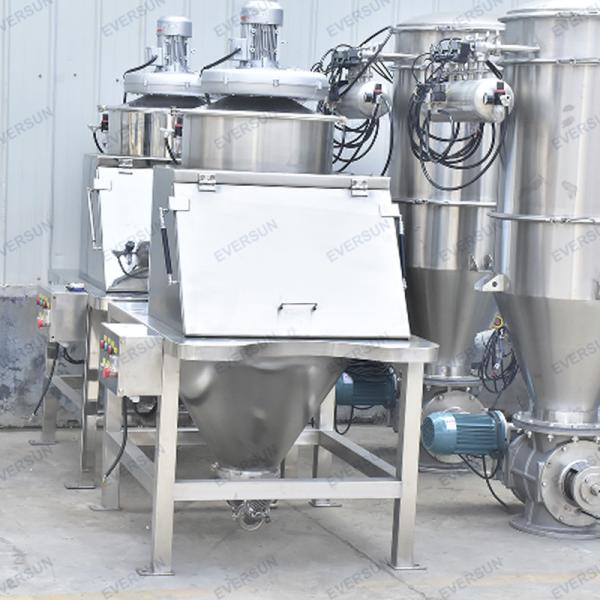

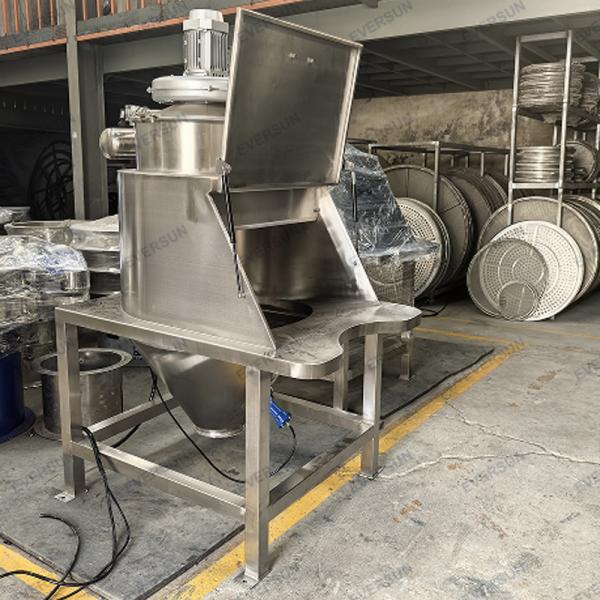

The dust-free feeding station is suitable for the unpacking, feeding, sieving and

unloading of small and medium-sized bag materials in the, chemical, food, battery

material and other industries. During unpacking, due to the effect of the dust collection

fan, it can avoid the material dust flying everywhere When the material is unpacked

and poured into the next process, it only needs to be manually directly unpacked and

put into this system, and the dust-free feeding completes the opening, feeding, and

reverse blowing dust collection, and the material passes through the vibrating screen

(safety screen), which can intercept large pieces of material and objects, thus ensuring

that the particles that meet the requirements are discharged, and the fed materials can

also be transferred to the next process through the vacuum feeder.



The operator places the material belt on the bracket and pushes it into the grid. Then,

the operator cuts a vertical slit in the material belt pours and shakes the material belt to

empty it. The materials fall into the hopper by gravity and can be connected to the

conveying unit equipment through the bottom conveying pipeline effectively convey the

materials to the designated position. The built-in suction dust filter can collect the dust

produced during the emptying of the material belt. Its filter is cleaned reverse

compressed air jet, and the dust removed falls back into the hopper, which can achieve

continuous and uninterrupted feeding.



1. Precise metering: The dust-free feeding station adopts an automated control system,

which can achieve precise metering and mixing of, avoiding the errors and waste

problems that are prone to occur in traditional manual feeding methods.

2. Efficient conveying: The dust-free feeding station uses pneumatic conveying

technology which has a fast conveying speed and a small volume, greatly improving

production efficiency and speed.

3. Dust-free design: The dust-free feeding station adopts a sealed design avoiding the

problems of materials flying and overflowing during the feeding process, thus ensuring

the sanitary standards of the production environment.

4. Diverse applications: The dust-free station can be customized for different types of

equipment according to customer needs, suitable for the feeding of powders, granules,

liquids and other types of materials. At same time, in the pharmaceutical, food and other

industries, it can also achieve a variety of filling methods to meet the needs of different

specifications and different shapes of materials.

5. Intelligent technology: The dust-free feeding station introduces automatic recognition,

remote monitoring, data analysis and other technologies, which can achieve higher

efficiency and higher precision management of feeding work.

We have been specializing in the production of Screening and conveying equipment for 13 years.
China's vibrating screen industry top three. And we have done matching and OEM for many large
companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New
Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our
factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City,
Henan Province.
