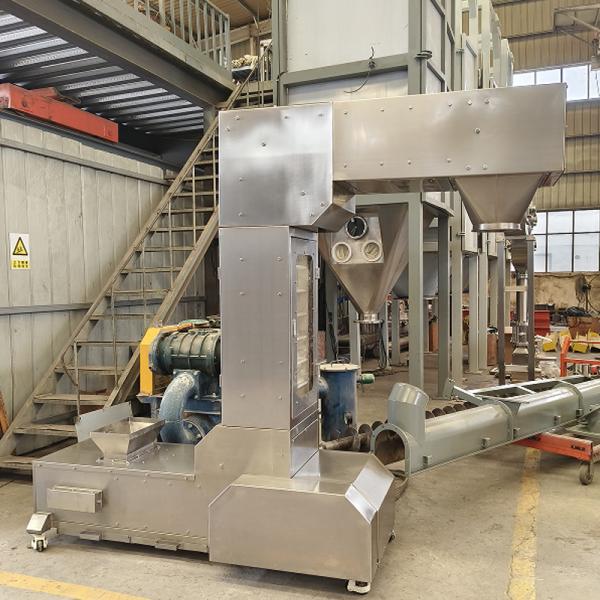

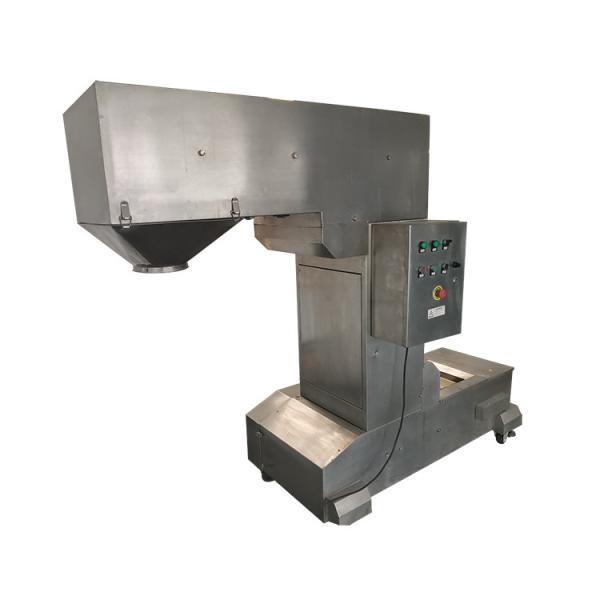

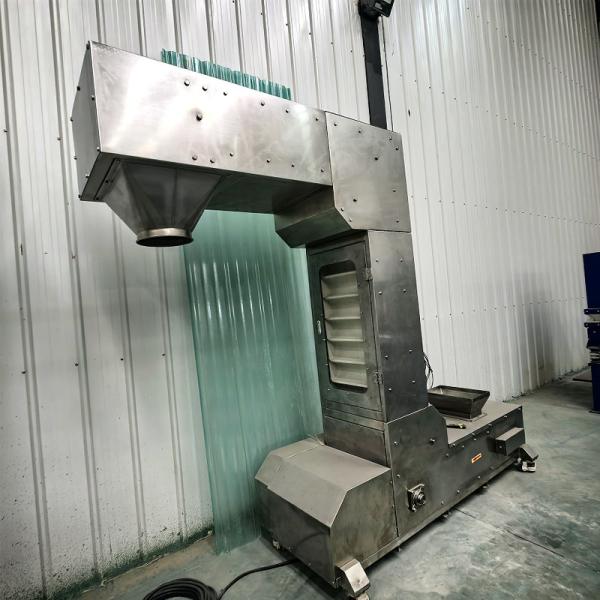

The Z-type elevator, also known as the Z-type bucket elevator, features a large conveying

capacity, high lifting height, stable and reliable operation and long service life. This elevator

can achieve multi-point unloading, ensuring that the material is undamaged. It is suitable

for conveying powdery, gran, and small-sized materials with little or no abrasiveness. It is

currently widely used in material supply for weighing and packaging machines, color sorting

machines, and re material supply, as well as vertical circulation material supply in

automated production lines.

The Z-type bucket elevator is a commonly used material conveying equipment, named for

its shape resembling the letter "Z" formed by the positions of its and outlet.

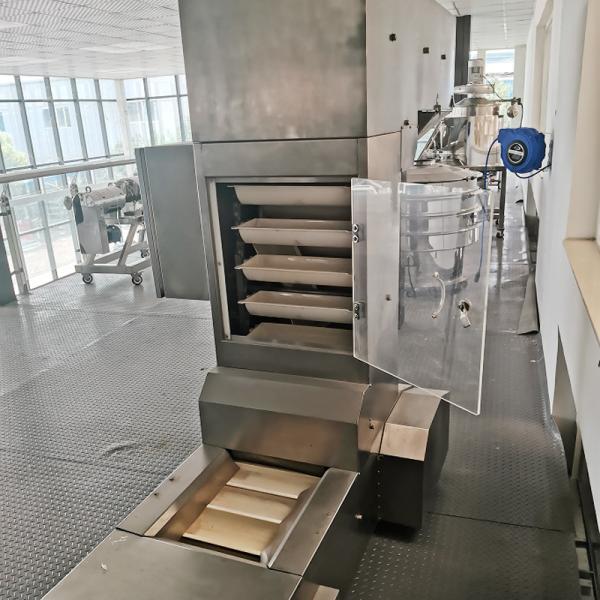

1.Material lifting: The Z-type bucket elevator conveys materials through buckets attached to

the chain. These buckets are evenly secured on the endless traction members, as the chain

lifts, the materials in the buckets are also carried to the top of the elevator.

2. Unloading of materials: After the bucket is lifted to the top with the chain, it will go around

the top wheel and then flip. During this process, the materials in the bucket will be tipped into

the receiving trough, thus completing the unloading of the materials.

3. Multiple discharge points: One of the important features of the Z-type bucket elevator is

that it can meet the requirements of multiple discharge points at position. This is thanks to its

special structural design, which allows for single or multiple discharge points through specially

designed discharge devices, and these discharge points do not discharge.

4. Prevent dust from flying: In order to prevent dust from flying during the lifting process, the

Z-type bucket elevator is usually equipped with an casing. In addition, it has the characteristics

of stable and noiseless operation, no material spillage, no material leakage, and no flying dust

during operation.

1. No material damage: The material will not be damaged during the entire process of

feeding, conveying, and discharging, reducing the scrap rate

2. Compact structure: small footprint, suitable for use in various locations.

3. Good sealing performance: The entire machine shell has good sealing performance,

ensuring no leakage during operation and meeting environmental protection requirements.

4. Low driving power: Utilizing inflow feeding and induced unloading, effectively reducing

useless power.

5. Wide lifting range: Capable of lifting various types of materials, including powders, granules,

and small lumps.

Company Profile

We have been specializing in the production of Screening and conveying equipment for

13 years. China's vibrating screen industry top three. And we have done matching and

OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to

Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
