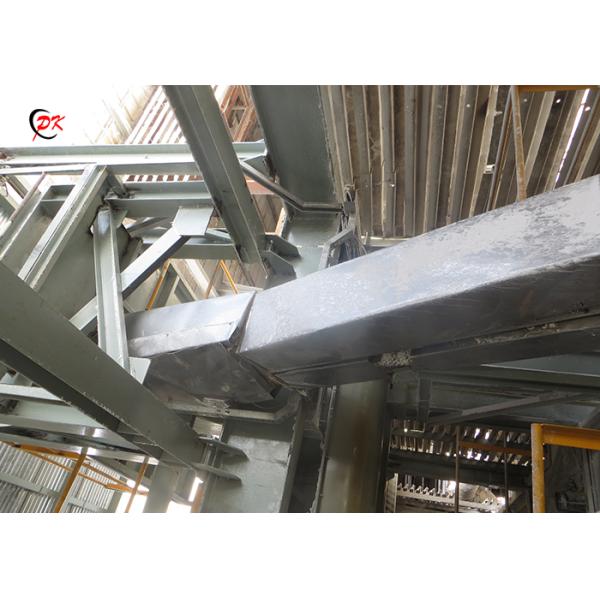

Carbon Steel Bulk Buried Scraper Chain Conveyor Gear Motor
Carbon Steel Bulk Buried Scraper Chain Conveyor Gear Motor
Carbon Steel Bulk Buried Scraper Chain Conveyor Gear Motor
Carbon Steel Bulk Buried Scraper Chain Conveyor Gear Motor
Specifications
Brand Name :
PK
Model Number :
MS160/200/250/320/400/500mm
Certification :
CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600SETS/YEAR
Delivery Time :
ABOUT 30 DAYS
Packaging Details :
Standard export package
Model :
MS
Trough width :
160/200/250/320/400/500mm
Transport Speed :
0.16/0.20/0.25/0.32m/s
Capacity :
15~230m3/h
Conveying Distance :
3~78m
Chain Structure :
Roller Chain
Allowed Material Density Range :
0.2-2.5t/m3
Noise Level :
Less than 82dB
Motor Brand :
Gear Motor
Description

Carbon Steel Bulk Buried Scraper Chain Conveyor Gear Motor

Introduction

MS common type buried scraper conveyor is widely used in metallurgy, chemical industry, building materials, electric power, port, grain, oil, paper, urban waste treatment and other industries, suitable for the transportation of various bulk materials, and designed according to the customer's transportation volume. Dimensions, with multiple protection devices, the machine is highly reliable.

Advantages

1.It can multiple feed food and more points out of material.

2.The guide rail is made of special material.

3.The scraper blade is made of polyurethane material, easy to operate and extend its working life.

4.Chain for high strength high wear resistance, long conveying distance.

5.The engine tail has advanced design, easy to operate, it can extend its working life.

Carbon Steel Bulk Buried Scraper Chain Conveyor Gear Motor

Technical Parameter:

Scraper Conveyor Technical Performance
Type MS16 MS20 MS25 MS32 MS40
Trough Width 160 200 250 320 400
Allowed Material Density Range 0.2-2.5t/m³
Max.Conveying Distance 120m
Conveying Capacity speed m/s 0.16 0.16 0.16 0.16 0.16
capacity m³/h 15 23 36 59 83
speed m/s 0.2 0.2 0.2 0.2 0.2
capacity m³/h 18 29 45 74 104
speed m/s 0.25 0.25 0.25 0.25 0.25
capacity m³/h 23 36 56 92 130
speed m/s 0.32 0.32 0.32 0.32 0.32
capacity m³/h 29 46 72 118 166


Selection Conditions

♦ Material to be processed:

_

♦ Installation angle:

___° (if the installation is inclined)

♦ Bulk density:

t/m3

♦ lifting height:

___m (if there is slope angle)

♦ Water content:

%

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material temperature:

°C

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

mm

♦ Working environment:

(indoor or outdoor)

♦ Max. Granule size:

mm

♦ Working environment temperature:

°C

♦ Handling capacity:

t/h

♦ Working power supply:

3 Phase V Hz
♦ Conveying length (distance between inlet and outlet): m

♦ Quantity:

sets
♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
