Material Handling Conveying Equipment Coal Belt Conveyor Machine
Material Handling Conveying Equipment Coal Belt Conveyor Machine
Material Handling Conveying Equipment Coal Belt Conveyor Machine
Material Handling Conveying Equipment Coal Belt Conveyor Machine
Specifications
Brand Name :
PK
Model Number :
DTIIA
Certification :
CE Certificate,ISO14001:2015, BV, SGS,Business-license,Certificate of environment management system certification
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600SETS/YEAR
Delivery Time :
ABOUT 35 DAYS
Packaging Details :
Standard export package
Motor Brand :
ABB//Siemens/WEG
Bearing Brand :
SKF/NSK/LYC
Belt Brand :
YOKOHAMA/ContiTech
Electric Elements Brand :
Schneider
Structure Technology :
Weld
Working Type :
Continuous
Description

Material Handling Conveying Equipment Coal Belt Conveyor Machine

Introduction

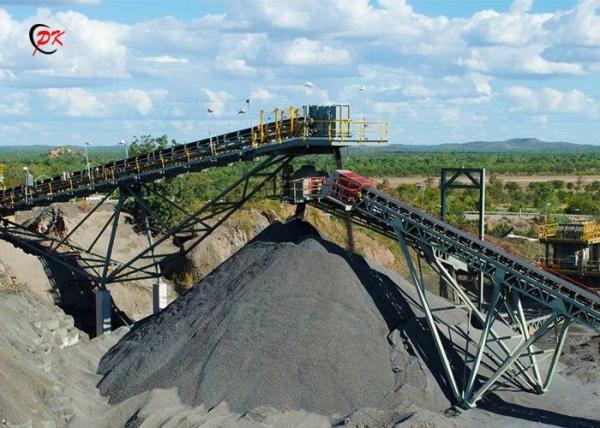

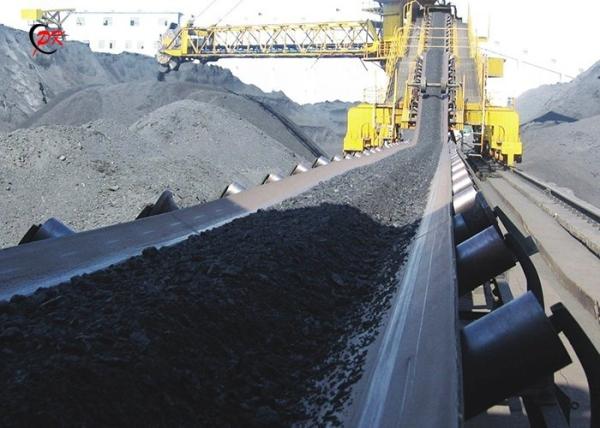

The fixed belt conveyor is a short-distance transportation machine for continuously transporting materials. It is common transportation equipment used in coal mines to connect downhole operations and on-ground production systems. In the course of use, it has many advantages, such as strong transportation capacity, low power consumption, low work resistance, long service life, etc.

Advantages and Features

1. There is no relative movement between material and belt, therefore, no damage for material.
2. Safety protection device can effectively protect the belt conveyor.
3. The driving device can be used according to different purposes of use and site conditions.
4. Belt conveyors can be loaded and unloaded at any point according to the production process.
5. Can be customized, suitable for conveying various materials in the Long distance.
6. Conveyor length can be customized according to your need.
7. Belt conveyor cleaner can be installed to clean the conveyor belt.
8. Conveyor rollers are manufactured by our roller production line to ensure smooth conveyor system.

Material Handling Conveying Equipment Coal Belt Conveyor Machine

Technical datas:

Roller form Running speed(m/s) Belt width (mm)
500 650 800 1000 1200 1400
capacity(m3/h)
Trough roller 0.8 78 130 -- -- -- --
1.0 97 164 278 435 655 891
1.25 122 206 348 544 821 1115
1.6 156 264 445 696 1048 1427
2.0 191 323 546 853 1284 1748
2.5 232 391 664 1033 1556 2118
3.15 -- -- 824 1233 1858 2528
4.0 -- -- -- -- 2202 2996
Falt roller 0.8 41 67 118 -- -- --
1.0 52 88 147 230 345 469
1.25 66 110 184 288 432 588
1.6 84 142 236 368 558 753
2.0 103 174 289 451 677 922
2.5 125 211 350 546 821 1117


Selection Conditions

♦ Material to be processed:

♦ Installation angle:

___°(if the installation is inclined)

♦ Bulk density:

t/m3

♦ Lifting height:

___m (if there is slope angle)

♦ Water content:

%

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material temperature:

°C

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

mm

♦ Working environment:

(indoor or outdoor)

♦ Max. Granule size:

mm

♦ Working environment temperature:

°C

♦ Handling capacity:

t/h

♦ Working power supply:

3 Phase V Hz

♦ Conveying length:

m

♦ Quantity:

sets
♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
