Inclined sidewall large angle corrugated belt conveyor
Inclined sidewall large angle corrugated belt conveyor
Inclined sidewall large angle corrugated belt conveyor
Inclined sidewall large angle corrugated belt conveyor
Inclined sidewall large angle corrugated belt conveyor
Inclined sidewall large angle corrugated belt conveyor
Specifications
Place of Origin :
China
Brand Name :
PK
Certification :
CE ISO BV
Supply Ability :
160 Set/Sets per Month
Packaging Details :
1.standard package 2.as your request
MOQ :
1 Set/Sets
Price :
$3,100.00 - $15,300.00 / Sets
Applicable Industries :
Hotels, Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining
Condition :
New
Material :
Carbon steel
Material Feature :
Heat Resistant
Structure :
Belt Conveyor
Voltage :
customized
Power(W) :
customized
Dimension(L*W*H) :
customized
Warranty :
1 Year
After-sales Service Provided :
Field maintenance and repair service
Belt width :
500/600/800/1000/1200/1400mm
Side wall height :
100/120/160/200/240/300mm
Baffle Shapes :
C/T/TC/TCS
Distance between baffles :
126/252/378mm
Conveying Angle :
30°~90°
Baffle Height :
75mm~260mm
Particle Range :
50mm~450mm
Speed Range :
1.0m/s~4.0m/s
Capacity :
84~5736m3/h
Port :
Tianjin or Qingdao Lianyungang or other port
Description

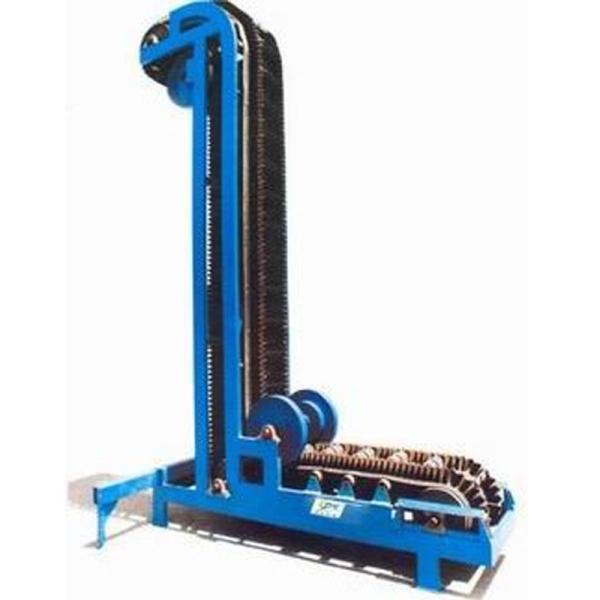

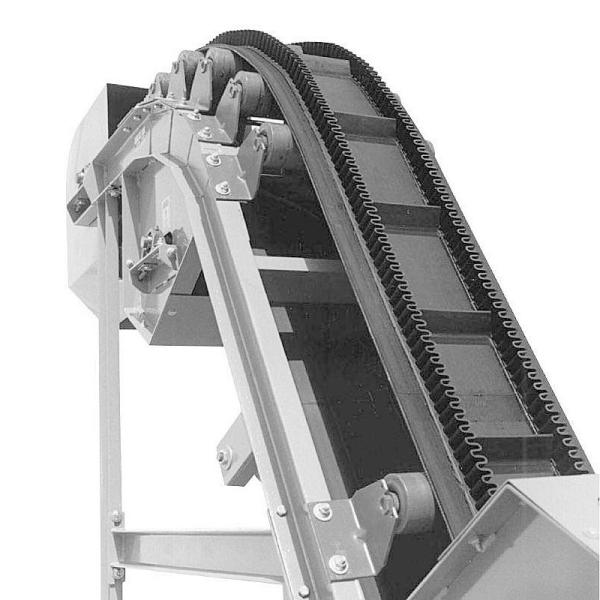

Inclined sidewall large angle corrugated belt conveyor

Introduction

This machine is a continuously conveying equipment for loose bulk material such as coal, sand, stone, grain, etc and some powdered material, so its slope of application is very wide, including mine, cement plant, chemical industry, metallurgy and agriculture, electric power, light industry, grain, port, shipping ect, when the mateial need to be conveyor at a big inclined angle, the steeply inclinded belt conveyor also could conveying material vertically.

Advantages and Features

1. Reduced energy consumption to save money for you
2. Able to conveyor material at any angles up to 90 degree to save space for you
3. Higher conveyance capacity
4. Extremely high stability is provided in the traverse direction, good longitudinal flexibility
5. Low maintenance requirements

Inclined sidewall large angle corrugated belt conveyor

Technical Parameter

Belt Width

(mm)

Height of Sidewall

(mm)

Belt Speed

(m/s)

Angle of

Inclination

(°)

Capacity

(m³/h)
500 80 0.8-2.0 30-90 84
100 112
120 98
650 100 0.8-2.0 156
120 140
160 186
800 120 0.8-2.5 186
160 318
200 360
1000 160 1.0-2.5 428
200 483
240 683
1200 160 1.0-3.15 535
200 765
240 1077
300 1358
1400 200 1.0-3.15 920
240 1298
300 1657
400 2381
1600 200 1.25-3.15 1074
240 1515
300 1953
400 2807
1800 240 1.25-4.0 2200
300 2724
400 4106
500 5036

Capacity is under 30° angle and maximum belt speed.

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦ Material to be processed:

♦ Top horizontal section length:

m

♦ Bulk density:

t/m3

♦ Conveyor angle:

___°

♦ Water content:

%

♦ Lifting height:

___m

♦ Material temperature:

°C

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Downstream equipment (what kind of equipment is used to feed the material):

♦ Material is sticky or not:

(Yes or No)

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Granule size of material:

mm

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Max. Granule size:

mm

♦ Working environment:

(indoor or outdoor)

♦ Handling capacity:

t/h

♦ Working environment temperature:

°C

♦ Conveying length:

m

♦ Working power supply:

3 Phase V Hz
♦ Bottom horizontal section length: m

♦ Quantity:

sets
Product tags

sidewall belt conveyor

,

sidewall conveyor belt

,

corrugated sidewall conveyor belt
Send your message to this supplier
Send Now
