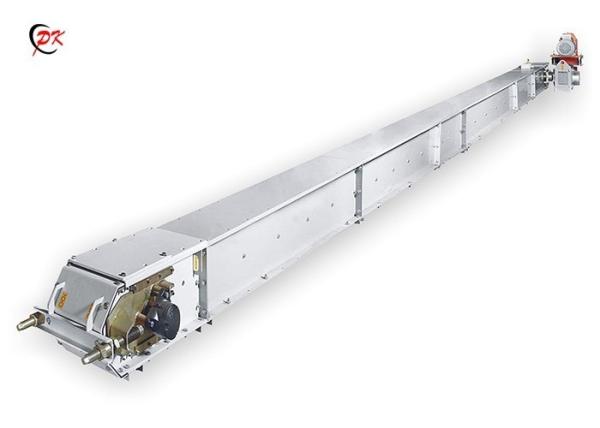

Corn Grain Scraper Chain Conveyor Stainless Steel 11~110 M3/H Capacity
Corn Grain Scraper Chain Conveyor Stainless Steel 11~110 M3/H Capacity
Corn Grain Scraper Chain Conveyor Stainless Steel 11~110 M3/H Capacity
Corn Grain Scraper Chain Conveyor Stainless Steel 11~110 M3/H Capacity
Specifications
Brand Name :
PK
Model Number :
MC160/200/250/320/400mm
Certification :
CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600SETS/YEAR
Delivery Time :
ABOUT 30 DAYS
Packaging Details :
Standard export package
Model :
QMS
Transport Speed :
0.16/0.20/0.25/0.32m/s
Capacity :
11~110m3/h
Inclined angle :
0~80 °
Voltage :
220/380/400 or As Request
Installation :
Technical Guidance
Noise Level :
Less Than 80dB
Warranty :
18 Month
Description

Corn Grain Scraper Chain Conveyor Stainless Steel 11~110 M3/H Capacity



Introduction
Stainless steel grain corn chain conveyor grain scraper conveyor is mainly composed of the first section, the middle section, the optional section, the tail section and the conveyor chain, the import and export materials, and the drive. The drive is divided into two types: left and right, and the drive type is selected according to the delivery volume and the delivery length. The feed inlet is divided into three types: the upper feed inlet, the lateral feed inlet, the two feed inlets, the discharge outlet is the head outlet, and the intermediate outlet and the middle outlet are also available for users to use.

Stainless steel grain corn chain conveyor grain scraper conveyor is a conveying equipment which is traction components on the roller chain plate and continuous. This type of device with compact structure, good sealing, rational layout, application convenient maintenance, etc.
It is mainly used for grinding powder, particle, small lump with strong abrasive in horizontal or inclination, also widely used in chemical industry, metallurgy, mining, building materials, electric power, light industry, traffic, road construction, food processing industry, port, etc.

Corn Grain Scraper Chain Conveyor Stainless Steel 11~110 M3/H Capacity

Advantages and Features

  • Totally enclosed structure without pollution to the environment.
  • Light weight, small volume, space saving.
  • Convenient installation and maintenance.
  • Vertical or large inclined transportation, angles range from 30° to 90°.
  • Multiple material feeding point and discharging point.
  • Conveying distance is up to 40m.
  • Material temperature lower than 120°C.
  • Gear motor brand can be domestic or imported: Tailong, , Siemens etc.


Technical Parameters

Scraper Chain Conveyor
Model

Effective

Working

Area

(WXH)

 Chain

Capacity

(t/h)

Max.

Conveying

Length (m)
Pitch

Chain

Type

Scraper

Type

Speed

(m/s)

ρ=0.5

(t/m3)

ρ=0.75

(t/m3)

ρ=0.5

(t/m3)

ρ=0.75

(t/m3)
QMS20 200 X 200 100

Roller

Chain

 T 0.2 11.5 17.2 60 40
0.25 14.4 21.6
0.32 18.4 27.6
0.4 23 34.5
0.5 28.8 43.2
0.63 34 s
0.8 43.2 64.8
QMS25 250 X 250 125

Roller

Chain

 T 0.2 16.9 25.3 60 40
0.25 21.1 31.6
0.32 27 40.5
0.4 33.7 50.6
0.5 42.1 63.2
0.63 53.1 79.7
0.8 67.5 101.3
QMS32 320 X 320 160

Roller

Chain

 T 0.25 34.5 51.8 60 50
0.32 44.2 66.3
0.4 55.3 82.9
0.5 69.1 103.6
0.63 87.1 130.6
0.8 110.5 165.8


Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦ Material to be processed:
_

♦ Installation angle:
___° (if the installation is inclined)

♦ Bulk density:
t/m3

♦ lifting height:
___m (if there is slope angle)

♦ Water content:
%

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material temperature:
°C

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:
(Yes or No)

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:
(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:
mm

♦ Working environment:
(indoor or outdoor)

♦ Max. Granule size:
mm

♦ Working environment temperature:
°C

♦ Handling capacity:
t/h

♦ Working power supply:
3 Phase V Hz
♦ Conveying length (distance between inlet and outlet): m

♦ Quantity:
sets
♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
