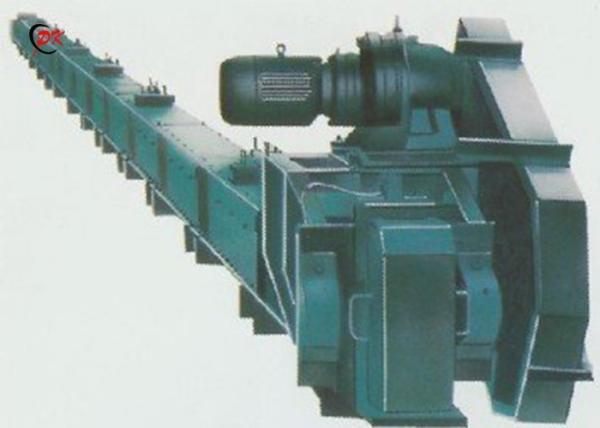

Powder Granule Material Mn Steel Modular Chain Transport Conveyor System

Introduction

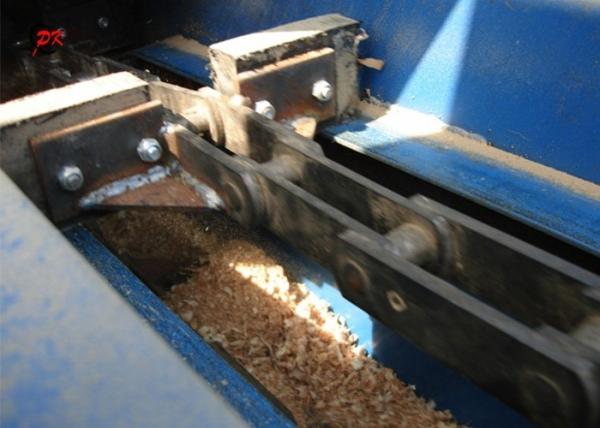

Powder granule material Mn steel modular chain transport conveyor system is the transportation equipment that depend on the running of scraper chain in the closed casing, which make the material be transported towards presumptive object. It has small volume, good air tightness, good rigidity, flexible technique layout, flexible installation and maintenance, it can be loaded and unloaded on multiple points, so it improve worker's labor condition notably and prevent environment from being polluted. En masse conveyor principle depends on material's endo-attrition and wall pressure, during the material be transported, the pressure comes from scraper chain's moving direction and the push force comes from down material to up material when adding material continuously. The synthesis of these forces enough to overcome the weight of material and the external friction which produce between the casing and material when the machine is running. It makes the material both in the horizontal conveyor, inclined conveyor and vertical conveyor form a continuous material and flow forward.

En masse conveyor is widely used in conveying coal, cement, grain, feed, soda ash, wood, reed and other materials. It is increasingly becoming the transport equipment indispensable of power, light industry, food, chemical, metallurgy and other sectors .

Application:

Performance of chain scraper conveyor for transporting powder and small granular material is better than screw conveyor, scraper conveyor and other transport equipments. FU chain conveyor are widely used in building, chemical, thermal power, food processing, mining and other industries.

Technical Parameter

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions
