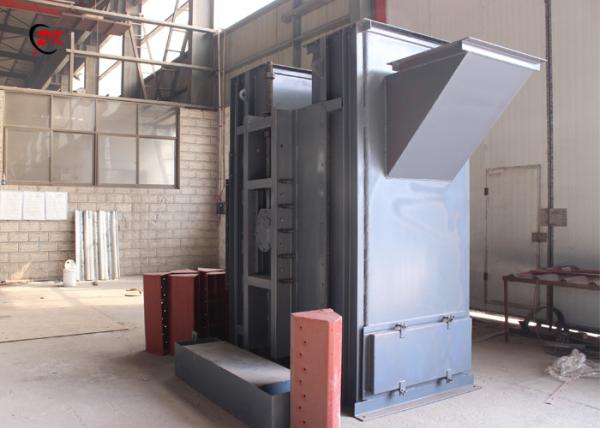

Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying
Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying
Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying
Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying
Specifications
Brand Name :
PK
Model Number :
TDG
Certification :
CE Certificate, ISO9001:2015, ISO14001:2015, BV, SGS, Business-license
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
about 35 days
Packaging Details :
Standard export package
Traction Component :
Conveyor belt
Capacity :
24~1542m3/h
Bucket Running Speed :
0.93/1.20/1.34/1.50/1.68m/s
Max. Lifting height :
80 m
Model :
TDG
Port :
Shanghai, Shenzhen, Shanghai or Ningbo, Qingdao
Bucket Volume :
2.6~ 255L
Pitch of Buckets :
260~820mm
Description

Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying

Introduction

Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying is the upgraded from TD bucket elevator. Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying consists of sprocket/drum, chain/belt, driven device, head section, middle casing and tail section etc. Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying can be widely used in several industries such as mining, mineral, chemical, agriculture, power, food and other industries etc.

Advantages and Features

  • Efficient bucket elevator machine with large capacity, high lifting height.
  • With kinds of buckets, to meet the requirement of different types of material.
  • TDG bucket elevator adopts steel cord rubber belt, good toughness, high strength.
  • Head, tail parts and middle housing cases with good sealing, no material and dust leaked, with no pollution.
  • With holdback to prevent material backflow when shut down in an emergency.
  • Bottom adopts counter weight take-up device, make itself automatic take-up, to avoid belt track slip or chain take off.
  • Increase speed control sensor and mechanical level detector, it is matched by customized.
  • Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, and WEG etc.
  • Bearing brand can be domestic or imported: C&U, LYC, HRB, WZS, FAG, NSK, SKF etc.

Mining Equipment Gypsum Limestone Coal Powder Bucket Elevator For Material Conveying

Technical Parameter

TDG Belt Bucket Elevator (Sh type bucket)
Model

TDG

160

TDG

200

TDG

250

TDG

315

TDG

400

TDG

500

TDG

630

TDG

800

TDG

1000

TDG

1200

TDG

1600

Capacity

(m3/h)

 32 45 72 101 158 220 348 492 788 1.22 1541
Bucket Volume (L) 2.6 4 7 10 16 25 40 64 102 161 255

Bucket Spacing

(mm)

 260 300 325 360 420 460 520 580 650 720 820

Weight of traction belt & bucket per meter

(kg/m)

 22 21.5 33 33.2 42.2 62.3 78.53 106 145 155.5 223
Running Speed (m/s) 1.2 1.2 1.34 1.34 1.5 1.5 1.68 1.65 1.86 1.86 1.86

Max.

Lifting height

(m)

 80 80 80 80 80 80 80 80 80 80 80
Note: the capacity in the table is calculated according to 75% of the fill factor.

TDG Belt Bucket Elevator (Zh type bucket)
Model

TDG

160

TDG

200

TDG

250

TDG

315

TDG

400

TDG

500

TDG

630

TDG

800

TDG

1000

TDG

1200

TDG

1600

Capacity

(m3/h)

 24 31 51 74 118 167 253 361 571 816 1112
Bucket Volume (L) 1.9 2.9 4.6 7.4 12 19 29 47 74 117 184

Bucket Spacing

(mm)

 260 300 325 360 420 460 520 580 650 720 820

Weight of traction belt & bucket per meter

(kg/m)

 22 21.5 33 33.2 42.2 62.3 78.53 106 145 155.5 223
Running Speed (m/s) 1.2 1.2 1.34 1.34 1.5 1.5 1.68 1.65 1.86 1.86 1.86

Max.

Lifting height

(m)

 80 80 80 80 80 80 80 80 80 80 80
Note: the capacity in the table is calculated according to 75% of the fill factor.

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦ Material to be processed:

_

♦ Lifting height (distance between inlet and outlet): m

♦ Bulk density:

t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Water content:

%

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material temperature:

°C

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:

(Yes or No)

♦ Working environment:

(indoor or outdoor)

♦ Granule size of material:

mm

♦ Working environment temperature:

°C

♦ Max. Granule size:

mm

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
