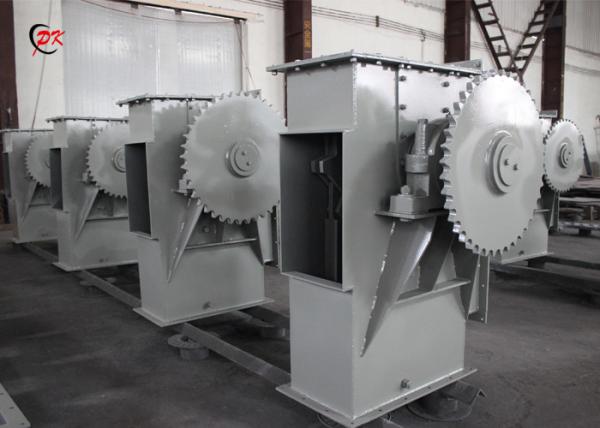

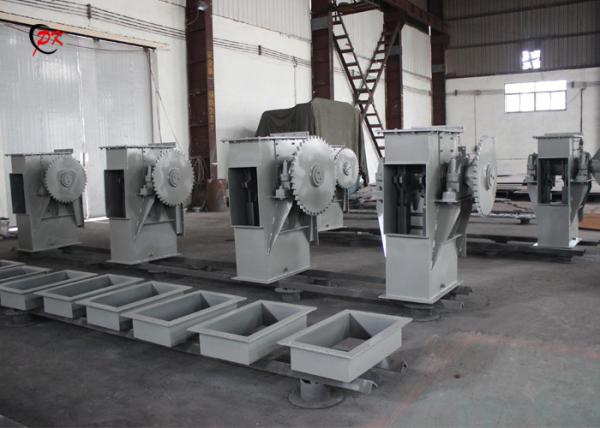

Sand Carbon Steel Bucket Elevator 16.8L Transporter In Construction
Sand Carbon Steel Bucket Elevator 16.8L Transporter In Construction
Sand Carbon Steel Bucket Elevator 16.8L Transporter In Construction
Sand Carbon Steel Bucket Elevator 16.8L Transporter In Construction
Specifications
Brand Name :
PK
Model Number :
TZD
Certification :
CE Certificate, ISO9001:2015, ISO14001:2015, BV, SGS, Business-license
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
about 35 days
Packaging Details :
Standard export package
Color :
as you requirement
Origin :
China
Bucket Running Speed :
1.70/2.00/2.75/3.00m/s
Traction Component :
Conveyor belt
Capacity :
10-850m3/h
Max. Lifting height :
52m
Bucket Volume :
1.21~16.8L
Bucket Pitch :
105/125/145/150/195/215/255/300
Description

Sand Carbon Steel Bucket Elevator 16.8L Transporter In Construction

Introduction

TD series bucket elevator in strict accordance with JB3926-85 " vertical bucket elevator " design and manufacturing standards, currently used in bucket elevators are vertical. TD series bucket elevator features: Simple structure, stable operation, digging loader, centrifugal gravity discharge, the material temperature does not exceed 60 degree centigrade.

TD series bucket elevator Compared with conventional D -type bucket elevator high transmission efficiency, in the form of multi- hopper, should be preferred. TD -type bucket elevator hopper with four kinds, namely: Q -type ( shallow bucket ), H -type ( arc bottom bucket ), ZD type ( deep bucket ), SD type ( deep bucket ).

Advantages and Features

1. Completely enclosed for dust and weather-tight operation

2. The lifting height is up to 60 meters.

3. The temperature of materials is not higher than 100°C;

4. Large capacity from 39m3/h to 184m3/h, including 7 models

5. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.

6. Long service life, it seldom occurs extrusion and collision phenomenon.

Technical Parameters

TZD type Silo Bucket Elevator
Model

Belt

Width

(mm)

Head

Pulley

Diameter

(mm)

Tail

Pulley

Diameter

(mm)

Bucket

Speed

(m/s)

Head

Shaft

Rotation

Speed

(r/min)

Steel

Bucket

Volume

(L)

Steel

Bucket

Spacing

(mm)

Steel

Bucket

Capacity

(t/h)

Plastic

Bucket

Volume

(L)

Plastic

Bucket

Pitch

(mm)

Plastic

Bucket

Capacity

(t/h)
TZD200 200 630 500 1.76 53.5 1.21 300 10 1.21 300 10
1.76 53.5 150 20 150 20
2 60 125 30 125 30
2.75 83.3 105 50 105 50
TZD250 250 630 500 1.76 53.3 2.35 150 30 2.35 150 30
1.76 53.3 125 50 125 50
2.42 73.5 125 80 125 80
3 91.9 125 100 125 100
TZD300 300 710 565 1.93 52.5 6 215 80 3.1 145 50
2.2 60 215 100 145 80
3.05 82.2 215 150 145 100
TZD400 400 710 565 1.93 52.5 8.4 215 100 6.1 195 80
2.2 60 215 150 195 100
3.05 82.2 215 200 195 150
TZD500 500 800 655 1.97 47 10.9 215 150 11.5 255 100
2.2 52.8 215 200 255 150
3.1 74 215 300 255 200
TZD650 650 800 655 2.2 52.8 2X6 215 200 2X3.1 145 150
2.76 66 215 300 145 200
3.87 92.5 215 400 145 300
TZD800 800 1140 930 2.5 41.6 2X8.4 215 400 2X6.1 195 200
3.15 52.5 215 500 195 300
3.94 66 215 600 195 400

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Sand Carbon Steel Bucket Elevator 16.8L Transporter In Construction

Selection Conditions

♦ Material to be processed:

_

♦ Lifting height (distance between inlet and outlet): m

♦ Bulk density:

t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Water content:

%

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material temperature:

°C

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:

(Yes or No)

♦ Working environment:

(indoor or outdoor)

♦ Granule size of material:

mm

♦ Working environment temperature:

°C

♦ Max. Granule size:

mm

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
