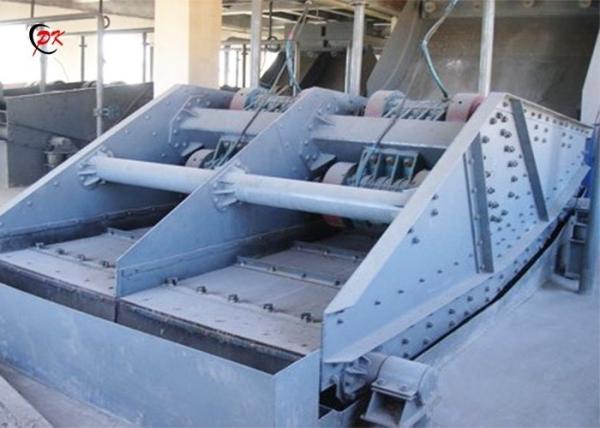

ZS Linear Vibrating Screen , Sediment Vibrating Grizzly Screen Recycling Shaker
ZS Linear Vibrating Screen , Sediment Vibrating Grizzly Screen Recycling Shaker
ZS Linear Vibrating Screen , Sediment Vibrating Grizzly Screen Recycling Shaker
ZS Linear Vibrating Screen , Sediment Vibrating Grizzly Screen Recycling Shaker
Specifications
Brand Name :
PK
Model Number :
ZS
Certification :
CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
AOUT 30 DAYS
Packaging Details :
Standard export package
Capacity :
50~100t/h
Power :
0.37*2~7.5*2(kw)
Application :
Slurry,Coal, Ore Material, Dehydration
Driven Device :
Vibrating Exciter
Screen Mesh Size :
Min0.5mm
Mesh Type :
Slot Screen Plate
Warranty :
18 Months
Surface Treatment :
Sa2.5
Description

ZS Linear Vibrating Screen , Sediment Vibrating Grizzly Screen Recycling Shaker

Introduction

Dewatering screen, also known as high frequency dewatering screen, changes the water tension of the pulp surface by exciting force, and the pulp water becomes the material under the screen through the screen, while the fine material is blocked by the screen to form a filter layer which moves forward and discharges under the influence of vibration force.

Working Principle and Application

The dewatering screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal forces is generated by the eccentric blocks will superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand can be dehydrated and filtered.

Advantages and Feathers
1. Less energy consumption,lower noise,longer service life
2. The beam and screen box are connected by high strength blot without welding
3. High accuracy screening efficiency,simple and stable structure, convenient maintenance
4. Suitable for rough screening with high capacity
5. Long travel distance for materials on the screen surface, high screening efficiency


Technical datas:

Model Screen area
(m2)		 Mesh Size
(mm)		 Feeding Size
(mm)		 Frequency Amplitude
(mm)		 Motor Power
(kW)		 Capacity
(t/h)
ZSM1542 6 0.25-13 ≤300 800 9-10 Y160M-4 11 30-60
ZSM1556 8 13-50 ≤300 800 10 Y160L-4 15 30-60
2ZSM1556 8 U:13-50
L:0.25-13		 ≤300 800 11 Y160L-4 15 30-60
ZSM1556B 8 13-50 ≤300 800 11 Y132M-4 7.5×2 30-60
2ZSM1556B 8 U: 13-50
L:0.25-13		 ≤300 800 11 Y132M-4 7.5×2 30-60
ZSM1756A 9.5 13-50 ≤300 800 10 Y160L-4 15 50-80
2ZSM1756 9.5 U:13-50
L:0.25-13		 ≤300 800 10 Y160L-4 15 50-80
ZSM1756B 9.5 13-50 ≤300 800 10 Y132M-4 7.5×2 50-80
2ZSM1756B 9.5 U:13-50
L:0.25-13		 ≤300 800 10 Y132M-4 7.5×2 50-80
ZSM1856 10 13-50 ≤300 800 11 Y160M-4 11 50-80
ZSM2065 13 13-50 ≤300 800 11 Y180M-4 18.5 70-100
2ZSM2065 13 U:13-50
L:0.25-13		 ≤300 800 1 Y180M-4 18.5 70-100
ZSM2065B 13 13-50 ≤300 800 9 Y160L-4 11×2 70-100
2ZSM2065B 13 U:13-50
L:0.25-13		 ≤300 800 11 Y160L-4 11×2 70-100

ZS Linear Vibrating Screen , Sediment Vibrating Grizzly Screen Recycling Shaker

Selection Conditions

♦ Material to be processed:

♦ Screen layer/deck/sieve number:

♦ Bulk density:

t/m3

♦ Mesh size of every screen layer/deck/sieve:

mm

♦ Material Temperature:

ºC

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Water Content:

%

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Drive: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

mm

♦ Working environment:

(indoor or outdoor)

♦ Max. granule size:

mm

♦ Working environment temperature:

°C

♦ Particle distribution percentage:

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
