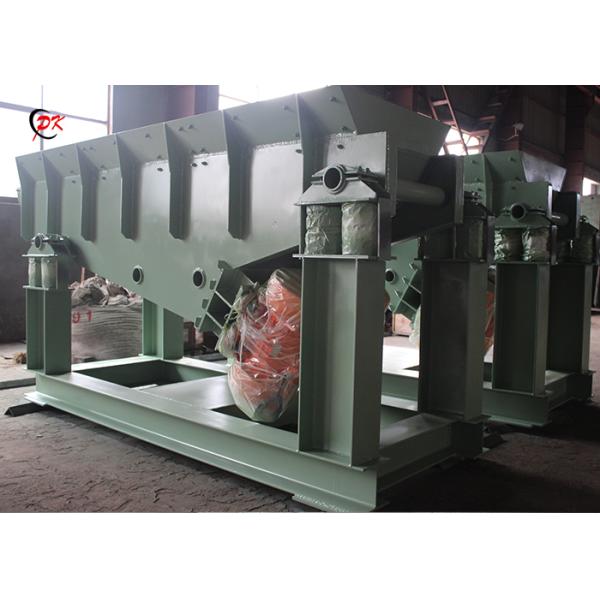

Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity
Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity
Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity
Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity
Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity
Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity
Specifications
Brand Name :
PK
Model Number :
ZG25/30/60/80/100/200/300/400/500/750/1200/1800/2000
Certification :
CE Certificate,ISO9001:2015, BV, SGS,Business-license, ISO14000:2015
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
About 30 days
Packaging Details :
Standard export package
Type :
Seated type
Application :
Gravel
Model :
ZG25/30/60/80/100/200/300/400/500/750/1200/1800/2000
Capacity :
2-2000t/h
Double Amplitude :
2~8mm
Feeding Size :
＜420mm
Model of Vibrating Motor :
YZO-2.5-4,...YZO-75-6
Equipment color :
Customized
Description

Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity

Introduction
Model Seated Type Gravel Vibrating Feeding Equipment Vibratory Feeder is widely used in pharmaceutical, automotive, electronic, food processing, packaging, glass, steel, construction, recycling, plastic industry etc. It can feed the massive, granular materials from the storage bin to the downstream equipment in an uniform, quantitative, continuous way.In addition,vibrating feeder can also feed the material uniformly into the crushing machinery in aggregate production line for coarse sieving, it is widely used in metallurgy. coal, mineral processing, building materials, chemical industry in the use of crushing and sieving combination plant.

Working Principle
The vibration feeding is evenly feeding during the vibration process. The advantage is that the feeding process is uniform according to the vibration frequency of the control motor (the AC motor is completed by the inverter generally ). Simple structure, reliable operation, convenient adjustment and installation, light weight, small volume, convenient maintenance and maintenance, and can prevent dust pollution when using a closed structure body.

Gravel Vibration Feeder Machine ZG Model Seated Type 2000t/h Capacity
Technical data:

Model Feeding Size
(mm)		 Processing Capacity
(t/h)		 Model of Vibrating Motor Power
(kW)		 RPM
(r/min)		 Double Amplitude
(mm)		 Vibrating Force
(N)
ZG-25 60 25 YZO-2.5-4 0.25x2 1500 2-3 5000
ZG-30 60 30 YZO-2.5-4 0.25x2 1500 2-3 5000
ZG-60 90 60 YZO-5-4 0.4x2 1500 2-4 10000
ZG-80 160 80 YZO-5-4 0.4x2 1500 2-4 10000
ZG-100 210 100 YZO-8-4 0.75x2 1500 2-5 16000
ZG-200 270 200 YZO-8-4 0.75x2 1500 2-5 16000
ZG-300 300 300 YZO-17-4 0.75x2 1500 2-5 34000
ZG-400 300 400 YZO-17-4 0.75x2 1500 3-5 34000
ZG-500 300 500 YZO-17-4 0.75x2 1500 3-5 34000
ZG-750 400 750 YZO-30-6 2.5x2 1000 4-6 60000
ZG-1200 400 1200 YZO-30-6 2.5x2 1000 4-6 60000
ZG-1800 420 1800 YZO-75-6 5.5x2 1000 5-8 150000
ZG-2000 420 2000 YZO-75-6 5.5x2 1000 5-8 150000


Selection Conditions

♦ Material to be processed:

♦ Installation forms:

___(Hanging-type or seat-type)

♦ Bulk density:

t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material Temperature:

ºC

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Water Content:

%

 ♦ Motor: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:

(Yes or No)

♦ Working environment:

(indoor or outdoor)

♦ Granule size of material:

mm

♦ Working environment temperature:

°C

♦ Max. granule size:

mm

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
