ZG Type Carbon Steel Coal Feeding Machine Hopper Vibrating Feeder
ZG Type Carbon Steel Coal Feeding Machine Hopper Vibrating Feeder
ZG Type Carbon Steel Coal Feeding Machine Hopper Vibrating Feeder
ZG Type Carbon Steel Coal Feeding Machine Hopper Vibrating Feeder
Specifications
Brand Name :
PK
Model Number :
ZG25/30/60/80/100/200/300/400/500/750/1200/1800/2000
Certification :
CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
About 30 days
Packaging Details :
Standard export package
Model :
ZG25/30/60/80/100/200/300/400/500/750/1200/1800/2000
Capacity :
20~2000t/h
Frequency :
1000/1500rpm
Power :
2*0.25,2*0.4,2*0.75,2*2.5,2*5.5kw
Double Amplitude :
2~8mm
Vibrating Force :
5~150kn
Feeding Size :
＜420mm
Model of Vibrating Motor :
YZO-2.5-4,...YZO-75-6
Description

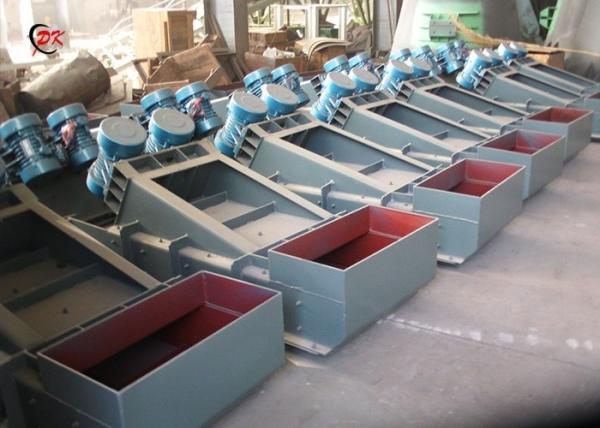

ZG Type Carbon Steel Coal Feeding Machine Hopper Vibrating Feeder

Introduction
Vibrating Feeder is a kind of linear direction feeding equipment, It consists of feed spout, vibration body, vibrating motor, damping device. It can feed material for belt conveyor, vibrating conveyor, bucket elevator, vibrating screen, crusher etc.

Working Principle and Application
The feed process of the vibrating feeder is achieved by the feed spout do line reciprocating vibration periodically which is forced by the special vibrating motor. When the vertical component of the feed spout vibrates, the accelerated speed is bigger than the gravitational acceleration, the material will be upthrow and jumping forward along a parabolic path. Due to the continuous exciting of the vibrating motor, the feed spout will vibrate continuously and the material in the feed spout will jumping forward continuously, so that the purpose of feeding material is achieved.
Vibrating Feeder is widely used in pharmaceutical, automotive, electronic, food processing, packaging, glass, steel, construction, recycling, plastic industry etc.

Advantages and Features
1. Smooth operation, large feeding capacity with high efficiency
2. Low energy consumption,stable vibration,long service life
3. Characterized by even feeding, excellent continuity and adjustable vibrating force
4. Eccentric block as the main source of vibration
5. easy maintenance and the enclosed type can prevent dust pollution
6. Simple structure
ZG Type Carbon Steel Coal Feeding Machine Hopper Vibrating Feeder


Technical data:

Model Feeding Size
(mm)		 Processing Capacity
(t/h)		 Model of Vibrating Motor Power
(kW)		 RPM
(r/min)		 Double Amplitude
(mm)		 Vibrating Force
(N)
ZG-25 60 25 YZO-2.5-4 0.25x2 1500 2-3 5000
ZG-30 60 30 YZO-2.5-4 0.25x2 1500 2-3 5000
ZG-60 90 60 YZO-5-4 0.4x2 1500 2-4 10000
ZG-80 160 80 YZO-5-4 0.4x2 1500 2-4 10000
ZG-100 210 100 YZO-8-4 0.75x2 1500 2-5 16000
ZG-200 270 200 YZO-8-4 0.75x2 1500 2-5 16000
ZG-300 300 300 YZO-17-4 0.75x2 1500 2-5 34000
ZG-400 300 400 YZO-17-4 0.75x2 1500 3-5 34000
ZG-500 300 500 YZO-17-4 0.75x2 1500 3-5 34000
ZG-750 400 750 YZO-30-6 2.5x2 1000 4-6 60000
ZG-1200 400 1200 YZO-30-6 2.5x2 1000 4-6 60000
ZG-1800 420 1800 YZO-75-6 5.5x2 1000 5-8 150000
ZG-2000 420 2000 YZO-75-6 5.5x2 1000 5-8 150000


Selection Conditions

♦ Material to be processed:

♦ Installation forms:

___(Hanging-type or seat-type)

♦ Bulk density:

t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material Temperature:

ºC

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Water Content:

%

 ♦ Motor: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:

(Yes or No)

♦ Working environment:

(indoor or outdoor)

♦ Granule size of material:

mm

♦ Working environment temperature:

°C

♦ Max. granule size:

mm

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
