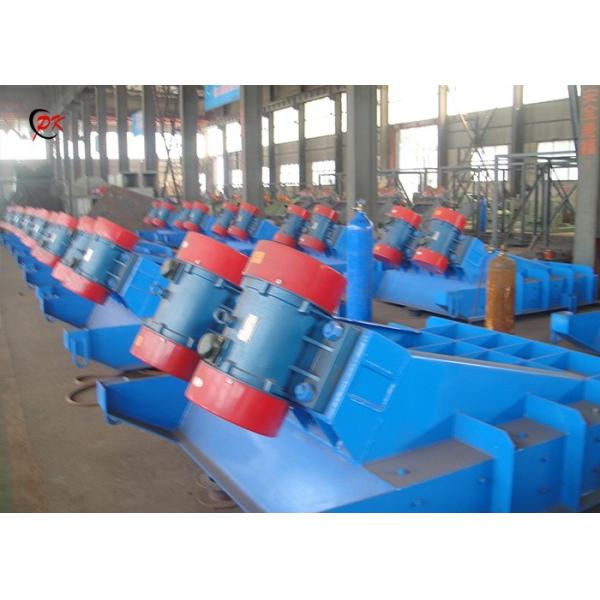

Sand Vibration Feeder Machine Quantitative Feeding Enclosed Type
Sand Vibration Feeder Machine Quantitative Feeding Enclosed Type
Sand Vibration Feeder Machine Quantitative Feeding Enclosed Type
Sand Vibration Feeder Machine Quantitative Feeding Enclosed Type
Specifications
Brand Name :
PK
Model Number :
ZG25/30/60/80/100/200/300/400/500/750/1200/1800/2000
Certification :
CE Certificate,ISO9001:2015, BV, SGS,Business-license, ISO14000:2015
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
About 30 days
Packaging Details :
Standard export package
Application :
Sand
Type :
Hanging type
Function :
Uniform feeding
Capacity :
2-2000t/h
Double Amplitude :
2~8mm
Feeding Size :
＜420mm
Model of Vibrating Motor :
YZO-2.5-4,...YZO-75-6
Description

Sand Vibration Feeder Machine Quantitative Feeding Enclosed Type

Introduction
In the production process, Quantitative Feeding Enclosed Type Sand Vibration Feeder Vibrating Feeder Machine can feed the massive, granular materials from the storage bin to the downstream equipment in an uniform, quantitative, continuous way.In addition,vibrating feeder can also feed the material uniformly into the crushing machinery in aggregate production line for coarse sieving, it is widely used in metallurgy. coal, mineral processing, building materials, chemical industry in the use of crushing and sieving combination plant.

Application

Quantitative Feeding Enclosed Type Sand Vibration Feeder Vibrating Feeder Machine is widely used in pharmaceutical, automotive, electronic, food processing, packaging, glass, steel, construction, recycling, plastic industry etc.


Working Principle
The feed process of the vibrating feeder is achieved by the feed spout do line reciprocating vibration periodically which is forced by the special vibrating motor. When the vertical component of the feed spout vibrates, the accelerated speed is bigger than the gravitational acceleration, the material will be upthrow and jumping forward along a parabolic path. Due to the continuous exciting of the vibrating motor, the feed spout will vibrate continuously and the material in the feed spout will jumping forward continuously, so that the purpose of feeding material is achieved.

Advantages and Features

1. Characterized by even feeding, excellent continuity and adjustable vibrating force.

2. Smooth operation, great feeding capacity and high efficiency.

3. Overhead suspended spring suspension.

4. Two electromechanical motors are used to generate linear motion.

5. Best suited for the extraction of products in bulk from storage bins, hoppers, feeding conveyors etc.

6. Closed structure body can be used to avoid dust pollution.

7. It can operate with vibrating screen, belt conveyor, crusher etc.

8. Exciting force can be adjusted to change and control material flow

9. Vibration motor as vibration source, less consumption, easy regulation

10. Material can be discharged continuously and stably, no blocking phenomenon

Sand Vibration Feeder Machine Quantitative Feeding Enclosed Type


Technical data:

Model Feeding Size
(mm)		 Processing Capacity
(t/h)		 Model of Vibrating Motor Power
(kW)		 RPM
(r/min)		 Double Amplitude
(mm)		 Vibrating Force
(N)
ZG-25 60 25 YZO-2.5-4 0.25x2 1500 2-3 5000
ZG-30 60 30 YZO-2.5-4 0.25x2 1500 2-3 5000
ZG-60 90 60 YZO-5-4 0.4x2 1500 2-4 10000
ZG-80 160 80 YZO-5-4 0.4x2 1500 2-4 10000
ZG-100 210 100 YZO-8-4 0.75x2 1500 2-5 16000
ZG-200 270 200 YZO-8-4 0.75x2 1500 2-5 16000
ZG-300 300 300 YZO-17-4 0.75x2 1500 2-5 34000
ZG-400 300 400 YZO-17-4 0.75x2 1500 3-5 34000
ZG-500 300 500 YZO-17-4 0.75x2 1500 3-5 34000
ZG-750 400 750 YZO-30-6 2.5x2 1000 4-6 60000
ZG-1200 400 1200 YZO-30-6 2.5x2 1000 4-6 60000
ZG-1800 420 1800 YZO-75-6 5.5x2 1000 5-8 150000
ZG-2000 420 2000 YZO-75-6 5.5x2 1000 5-8 150000


Selection Conditions

♦ Material to be processed:

♦ Installation forms:

___(Hanging-type or seat-type)

♦ Bulk density:

t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material Temperature:

ºC

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Water Content:

%

 ♦ Motor: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:

(Yes or No)

♦ Working environment:

(indoor or outdoor)

♦ Granule size of material:

mm

♦ Working environment temperature:

°C

♦ Max. granule size:

mm

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
