Sand Material Rubber Potable Belt Conveyer Machine Requirement Voltage
Sand Material Rubber Potable Belt Conveyer Machine Requirement Voltage
Sand Material Rubber Potable Belt Conveyer Machine Requirement Voltage
Sand Material Rubber Potable Belt Conveyer Machine Requirement Voltage
Specifications
Brand Name :
PK
Model Number :
DY
Certification :
CE Certificate,ISO9001:2015, BV, SGS, ISO14001:2015
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
ABOUT 30 DAYS
Packaging Details :
Standard export package
Belt Width :
400mm-1000mm
Material :
Rubber,Carbon steel,Plastic
Conveying Angle :
0-30 degree
Voltage :
Requirement
Power(w) :
Customer Request
Dimension(l*w*h) :
Customized Size
Description

Sand Material Rubber Potable Belt Conveyer Machine Requirement Voltage

Introduction

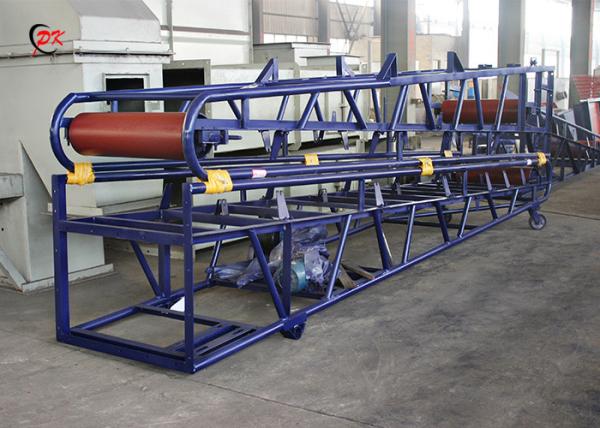

Mobile belt conveyor is a kind of continuous mechanical handling equipment with high efficiency, good safety and good mobility. Mainly used for short-distance transport, handling of bulk material and the product one-piece weight less 100kg on loading and unloading stations which are often changed, such as the port, terminal, station, coal yard, warehouse, building site, sand quarry, farm and so on. It can be divided into lift and not lift type, the running of belt is driven by electric-roller, and the whole lifting and running are non-motorized.

Advantages and Features

1. Light weight, one operator can move it easily.

2. Lifting height can be adjusted according to your need.

3. Low rate of breakdown and adapt to different use condition.

4. With wheels and can be moved to anywhere to save equipment number.

4. Cheap cost and long working life.

5. Easy move with special wheels.

7. The conveyor length can be customized according to your requirement.

Sand Material Rubber Potable Belt Conveyer Machine Requirement Voltage

Technical Parameter

Model

Belt

Width

(mm)

Length

(m)

Belt

Speed

(m/s)

Lifting

Height

(m)

Conveyor

Angle

(degree)

Capacity

(m3/h)
DY50 500 5-20 0.8-1.6 Adjustable 15-26 50-140
DY65 650 5-20 100-250
DY80 800 5-20 170-350
DY100 1000 5-20 270-550

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

For the bulk material

♦ Material to be processed:

♦Max. Granule size of material: mm

♦ Bulk Density: t/m3

♦ Handling capacity: t/h

♦ Material temperature: ºC;

♦ Conveyor length: m

♦ Water content: %

♦ The conveyor angle is adjustable or not: (Yes or No)

♦ Material is corrosive or not: (Yes or No)

♦ Max. Lifting height: m

♦ Material is sticky or not: (Yes or No)

♦ Working power supply: 3 Ph. V Hz
For the bagged / box material

♦ Weight of full-load bag / box:kg

♦ The conveyor angle is adjustable

or not: (Yes or No)

♦ Size of the full-load bag/box(L*W*H): mm

♦ Max. Lifting height: m
♦ Numbers of conveyed bags/boxes per hour:

♦ Working power supply: 3 Ph. V Hz

♦ Conveyor length: m

♦ Quantity: sets
