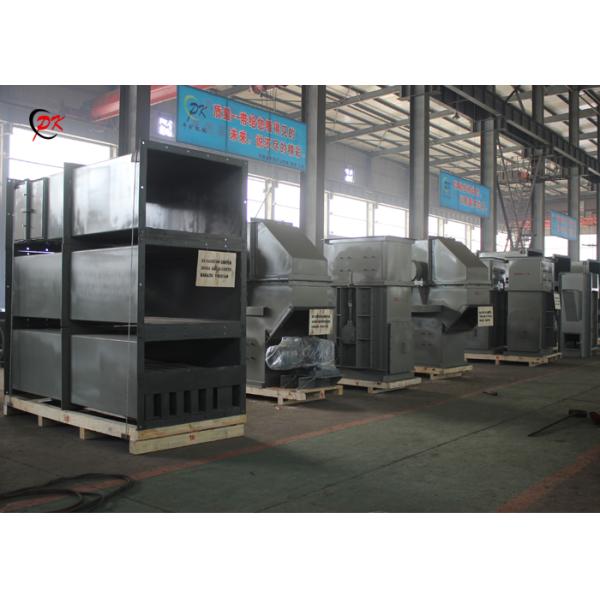

Industry Chain Bucket Elevator In Conveyors NE Food Processing
Industry Chain Bucket Elevator In Conveyors NE Food Processing
Industry Chain Bucket Elevator In Conveyors NE Food Processing
Industry Chain Bucket Elevator In Conveyors NE Food Processing
Specifications
Brand Name :
PK
Model Number :
NE
Certification :
CE Certificate, ISO9001:2015, ISO14001:2015, BV, SGS, Business-license
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
about 35 days
Packaging Details :
Standard export package
Capacity :
15-800m3/h
Model :
NE
Bucket Width :
250/300/400/600/700/800mm
Bucket Running Speed :
0.5m/s
Traction Component :
High strength alloy steel plate chain
Max. Lifting height :
40m
Bucket Volume :
2.5~501.8L
Bucket Pitch :
203~ 800mm
Material :
Stainless Steel,Carbon steel
Structure :
bucket conveyor
Name :
NE Food Processing Industry Chain Plate Bucket Elevator In Conveyors
Description

Industry Chain Bucket Elevator In Conveyors NE Food Processing


Introduction
NE type bucket elevator’s traction configuration is plate chain , which is used for vertically transporting powder , granular and block material , and also high grinding material , such as coal powder , slag , limestone , cement raw material , cement clinker , cement , coal , dry clay etc , material temperature is less than 250℃. Max. Lifting height can be 40m .It is special for cement, so we also call it cement bucket elevator.

Advantages and Features

1. Efficient bucket elevator machine with large capacity, high lifting height.
2. With kinds of buckets, to meet the requirement of different types of material.
3. THG bucket elevator adopts alloy steel ring chain, after surface treating and heat treating, moderate hardness, high strength, better abrasive resistance.
4. TDG bucket elevator adopts steel cord rubber belt, good toughness, high strength.
5. Head, tail parts and middle housing cases with good sealing, no material and dust leaked, with no pollution.
6. With hold back to prevent material back flow when shut down in an emergency.
7. Bottom adopts counter weight take-up device, make itself automatic take-up, to avoid belt track slip or chain take off.

Industry Chain Bucket Elevator In Conveyors NE Food Processing
Technical Parameter

NE type Cement Bucket Elevator
Model NE15 NE30 NE50 NE100 NE150 NE200 NE300 NE400 NE500 NE600 NE800

Capacity

(m3/h)

 15 32 60 110 170 210 320 380 470 600 800

Max. Particle Size

(mm)

 40 55 60 70 90 100 125 130 140 150 165

Bucket Volume

(L)

 2.5 7.8 15.7 35 52.2 84.6 127.5 182.5 260.9 330.2 501.8
Bucket Width (mm) 250 300 300 400 600 600 600 700 700 700 800

Bucket

Spacing

(mm)

 203 305 305 400 400 500 500 600 700 700 800

Bucket Speed

(m/s)

 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5

Max. Lifting Height

(m)

 35 50 45 45 45 40 40 40 30 30 30

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦ Material to be processed:
_

♦ Lifting height (distance between inlet and outlet): m

♦ Bulk density:
t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Water content:
%

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material temperature:
°C

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:
(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:
(Yes or No)

♦ Working environment:
(indoor or outdoor)

♦ Granule size of material:
mm

♦ Working environment temperature:
°C

♦ Max. Granule size:
mm

♦ Working power supply:
3 Phase V Hz

♦ Handling capacity:
t/h

♦ Quantity:
sets
