Power Plant Chain Bucket Elevator THG Mining Efficient Gravel THG Model
Power Plant Chain Bucket Elevator THG Mining Efficient Gravel THG Model
Power Plant Chain Bucket Elevator THG Mining Efficient Gravel THG Model
Power Plant Chain Bucket Elevator THG Mining Efficient Gravel THG Model
Specifications
Brand Name :
PK
Model Number :
THG
Certification :
CE Certificate, ISO9001:2015, ISO14001:2015, BV, SGS, Business-license
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
about 35 days
Packaging Details :
Standard export package
Model :
THG
Bucket Width :
160/200/250/315/400/500/630/800/1000/1250/1600mm
Traction Component :
Conveyor belt/ High strength ring chain
Capacity :
24~1542m3/h
Bucket Running Speed :
0.93/1.20/1.34/1.50/1.68m/s
Max. Lifting height :
80 m
Bucket Volume :
2.6~ 255L
Pitch of Buckets :
260~820mm
Description

Power Plant Chain Bucket Elevator THG Mining Efficient Gravel THG Model

Introduction

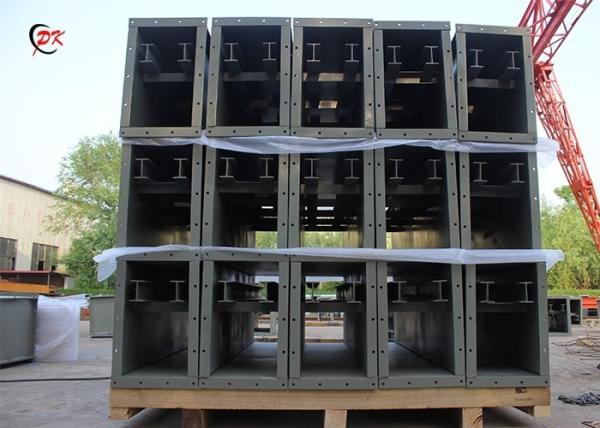

THG Mining Efficient Gravel Chain Bucket Elevator For Power Plant is the upgraded from TH bucket elevator. THG Mining Efficient Gravel Chain Bucket Elevator For Power Plant consists of sprocket/drum, chain/belt, driven device, head section, middle casing and tail section etc. High Efficient Bucket Elevator can be widely used in several industries such as mining, mineral, chemical, agriculture, power, food and other industries etc.


Advantages and Features
1. Efficient bucket elevator machine with large capacity, high lifting height.
2. With kinds of buckets, to meet the requirement of different types of material.
3. THG bucket elevator adopts alloy steel ring chain, after surface treating and heat treating, moderate hardness, high strength, better abrasive resistance.
4. TDG bucket elevator adopts steel cord rubber belt, good toughness, high strength.
5. Head, tail parts and middle housing cases with good sealing, no material and dust leaked, with no pollution.
6. With holdback to prevent material backflow when shut down in an emergency.
7. Bottom adopts counter weight take-up device, make itself automatic take-up, to avoid belt track slip or chain take off.
8. Increase speed control sensor and mechanical level detector, it is matched by customized.
9. Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;
10. Bearing brand can be domestic or imported: C&U, LYC, HRB , WZS, FAG, NSK, SKF etc.

Power Plant Chain Bucket Elevator THG Mining Efficient Gravel THG Model

Technical Parameter:

TDG Belt Bucket Elevator(with Sh bucket)Technical Parameters Table
Main Technical Parameters TDG TDG TDG TDG TDG TDG TDG TDG TDG TDG TDG
160 200 250 315 400 500 630 800 1000 1250 1600
Capacity Q(m³/h) 32 45 72 101 158 220 348 492 788 1.22 1541
Bucket Volume /L 2.6 4 7 10 16 25 40 64 102 161 255
Pitch of Buckets /mm 260 300 325 360 420 460 520 580 650 720 820
Weight of traction belt&bucket per meter(kg/m) 22 21.5 33 33.2 42.2 62.3 78.53 106 145 155.5 223
Running Speed v/(m/s) 1.2 1.2 1.34 1.34 1.5 1.5 1.68 1.65 1.86 1.86 1.836
Lifting height max/m 80 80 80 80 80 80 80 80 80 80 80
Note:the capacity in the table is calculated according to 75% of the fill factor.

TDG Belt Bucket Elevator(with Zh bucket)Technical Parameters Table
Main Technical Parameters TDG TDG TDG TDG TDG TDG TDG TDG TDG TDG TDG
160 200 250 315 400 500 630 800 1000 1250 1600
Capacity Q(m³/h) 24 31 51 74 118 167 253 361 571 816 1112
Bucket Volume /L 1.9 2.9 4.6 7.4 12 19 29 47 74 117 184
Pitch of Buckets /mm 260 300 325 360 420 460 520 580 650 720 820
Weight of traction belt&bucket per meter(kg/m) 22 21.5 33 33.2 42.2 62.3 78.53 106 145 155.5 223
Running Speed v/(m/s) 1.2 1.2 1.34 1.34 1.5 1.5 1.68 1.65 1.86 1.86 1.836
Lifting height max/m 80 80 80 80 80 80 80 80 80 80 80
Note:the capacity in the table is calculated according to 75% of the fill factor.

THG Belt Bucket Elevator(with Sh bucket)Technical Parameters Table
Main Technical Parameters THG THG THG THG THG THG THG THG THG THG THG
160 200 250 315 400 500 630 800 1000 1250 1600
Capacity Q(m³/h) 30 50 70 100 160 210 350 475 715 1120 1550
Bucket Volume /L 2.6 4.1 6.5 10 16 25 40 64 102 161 255
Pitch of Buckets /mm 270 270 336 378 420 480 546 630 756 756 882
weight of traction chain & bucket per meter(kg/m) 31 31.85 33.4 43.25 60.9 79.6 88.66 107 150 187.6 233
Running Speed v/(m/s) 0.93 0.93 1.04 1.04 1.17 1.17 1.32 1.31 1.47 1.47 1.47
Lifting height max/m 60 60 60 60 60 60 60 55 55 40 40
1. Filling factor ψ=1; 2. Bucket volume=Volume of full water 3. Maximum lifting height = axis distance of bucket elevator

THG Belt Bucket Elevator(with Zh bucket)Technical Parameters Table
Main Technical Parameters THG THG THG THG THG THG THG THG THG THG THG
160 200 250 315 400 500 630 800 1000 1250 1600
Capacity Q(m³/h) 21 33 45 74 120 160 250 345 520 810 1110
Bucket Volume /L 1.9 2.9 4.6 7.4 12 19 29 47 74 117 184
Pitch of Buckets /mm 270 270 336 378 420 480 546 630 756 756 882
weight of traction chain & bucket per meter(kg/m) 31 31.85 33.4 43.25 60.9 79.6 88.66 107 150 187.6 233
Running Speed v/(m/s) 0.93 0.93 1.04 1.04 1.17 1.17 1.32 1.31 1.47 1.47 1.47
Lifting height max/m 75 75 75 75 75 75 75 70 70 55 55
1. Filling factor ψ=1; 2. Bucket volume=Volume of full water 3. Maximum lifting height = axis distance of bucket elevator


Selection Conditions

♦ Material to be processed:

_

♦ Lifting height (distance between inlet and outlet): m

♦ Bulk density:

t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Water content:

%

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material temperature:

°C

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:

(Yes or No)

♦ Working environment:

(indoor or outdoor)

♦ Granule size of material:

mm

♦ Working environment temperature:

°C

♦ Max. Granule size:

mm

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
