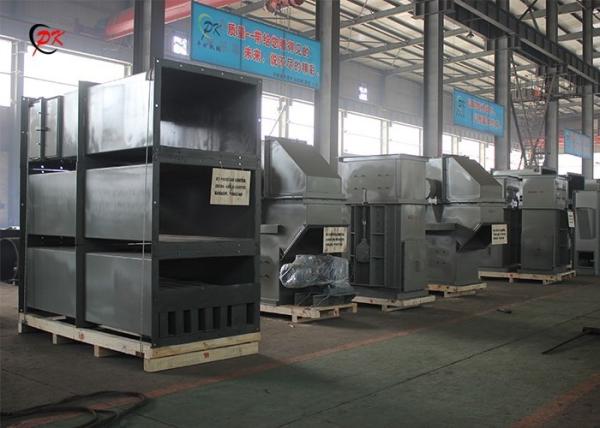

NE Stainless Steel Vertical Cement Bucket Elevator Machine for Cement Lifting
NE Stainless Steel Vertical Cement Bucket Elevator Machine for Cement Lifting
NE Stainless Steel Vertical Cement Bucket Elevator Machine for Cement Lifting
NE Stainless Steel Vertical Cement Bucket Elevator Machine for Cement Lifting
Specifications
Brand Name :
PK
Model Number :
NE
Certification :
CE Certificate, ISO9001:2015, ISO14001:2015, BV, SGS, Business-license
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
about 35 days
Packaging Details :
Standard export package
Model :
NE
Bucket Width :
250/300/600/700/800mm
Bucket Running Speed :
0.5m/s
Traction Component :
Plate sleeve roller chain
Capacity :
20-800m3/h
Max. Lifting height :
50m
Bucket Volume :
2.5~501.8L
bucket chain pitch :
250~ 800mm
Description

NE Stainless Steel Vertical Cement Bucket Elevator Machine for Cement Lifting

Introduction

The bucket elevator is a kind of conveying equipment used for conveying bulk materials vertically. It is widely used in the cement industry, chemical industry, power plant, grain storage and other industry etc.The bucket elevator is widely used for conveying cement, cement clinker, crushed lime, sand, compound fertilizer, coal, grain and other bulk material etc. Our company manufacture different type bucket elevator to meet different demand of customers.

Advantages and Features

  • Cement bucket elevator machine adopts plate chain, gravity discharge material.
  • High strength plate chain of the superior alloy steel is wear-resisting and steady.
  • Adopt several kinds of driving groups to drive, there are maintained frame and guardrail on driven platform.
  • With guard rails to prevent chain deviation while running.
  • With holdback to prevent material return.
  • Bottom part has the self-tension device.
  • Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.
  • Wide lifting range, few requirements of material type and property.
  • Good running reliability.
  • Long life span.

NE Stainless Steel Vertical Cement Bucket Elevator Machine for Cement Lifting

Technical Parameter

NE type Cement Bucket Elevator
Model NE15 NE30 NE50 NE100 NE150 NE200 NE300 NE400 NE500 NE600 NE800

Capacity

(m3/h)

 15 32 60 110 170 210 320 380 470 600 800

Max. Particle Size

(mm)

 40 55 60 70 90 100 125 130 140 150 165

Bucket Volume

(L)

 2.5 7.8 15.7 35 52.2 84.6 127.5 182.5 260.9 330.2 501.8
Bucket Width (mm) 250 300 300 400 600 600 600 700 700 700 800

Bucket

Spacing

(mm)

 203 305 305 400 400 500 500 600 700 700 800

Bucket Speed

(m/s)

 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5

Max. Lifting Height

(m)

 35 50 45 45 45 40 40 40 30 30 30

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦ Material to be processed:

_

♦ Lifting height (distance between inlet and outlet): m

♦ Bulk density:

t/m3

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Water content:

%

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material temperature:

°C

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is corrosive or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Material is sticky or not:

(Yes or No)

♦ Working environment:

(indoor or outdoor)

♦ Granule size of material:

mm

♦ Working environment temperature:

°C

♦ Max. Granule size:

mm

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
