PK Sidewall Conveyor Belt DJB Steep Inclined Corrugated Rubber Skirt
PK Sidewall Conveyor Belt DJB Steep Inclined Corrugated Rubber Skirt
PK Sidewall Conveyor Belt DJB Steep Inclined Corrugated Rubber Skirt
PK Sidewall Conveyor Belt DJB Steep Inclined Corrugated Rubber Skirt
Specifications
Brand Name :
PK
Model Number :
DJB
Certification :
CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
1000SETS/YEAR
Delivery Time :
AOUT 30 DAYS
Packaging Details :
Standard export package
Model :
DJB
Belt width :
500/600/800/1000/1200/1400mm
Side wall height :
100/120/160/200/240/300mm
Baffle Shapes :
C/T/TC/TCS
Distance between baffles :
126/252/378mm
Conveying Angle :
30°~90°
Baffle Height :
75mm~260mm
Particle Range :
50mm~450mm
Description

PK Sidewall Conveyor Belt DJB Steep Inclined Corrugated Rubber Skirt

Introduction

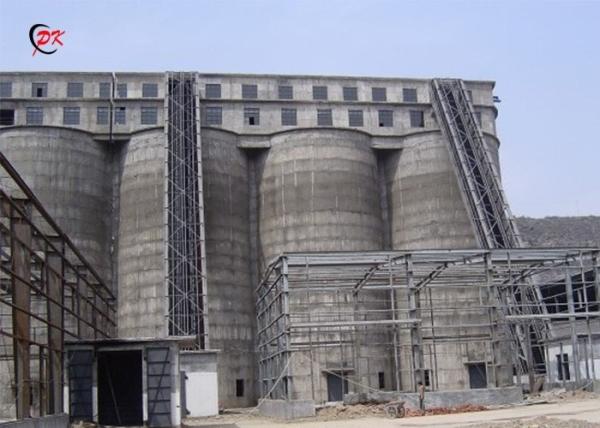

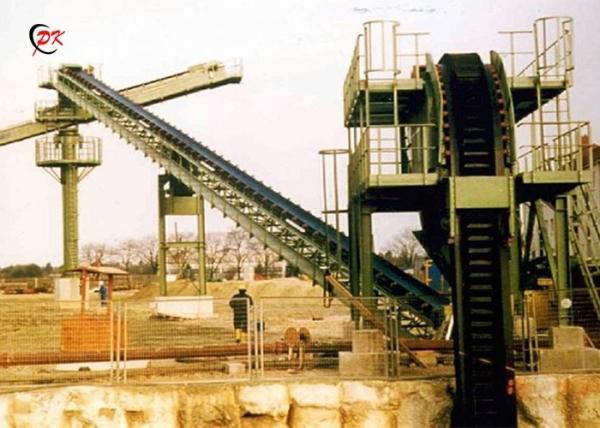

Sidewall belt conveyor is continuous transporting equipment of loose bulk materials such as coke, coal, limestone, sand and gravel. It adopts high quality conveyor belt with corrugated sidewall and horizontal baffle. Sidewall belts are used to convey material up inclines. The sidewall increases the carrying capacity of the belt and prevents product from falling off the edges of the belt. Hot vulcanization provides a 5x greater adhesion between the belt and sidewall, eliminating the need for bolting the sidewall to the base belt. Greater adhesion also prevents the sidewall from lifting and separating from the base belt, extending the belt life.

Advantages and Features

1. No spillage with steep angle conveying, long lifespan.

2. Larger production grain sizes can be handled.

3. Reduced energy consumption to save money for you.

4. Able to conveyor material at any angles up to 90 degree to save space for you.

5. Higher conveyance capacity.

6. Extremely high stability is provided in the traverse direction, good longitudinal flexibility.

7. Low maintenance requirements.

8. Hot vulcanization provides 5 times greater adhesion between the belt and sidewall, eliminating the need for bolting the sidewall to the base belt.

9. Can be sealed and environmental friendly

PK Sidewall Conveyor Belt DJB Steep Inclined Corrugated Rubber Skirt

Technical Parameter

Belt Width

(mm)

Height of Sidewall

(mm)

Belt Speed

(m/s)

Angle of

Inclination

(°)

Capacity

(m³/h)
500 80 0.8-2.0 30-90 84
100 112
120 98
650 100 0.8-2.0 156
120 140
160 186
800 120 0.8-2.5 186
160 318
200 360
1000 160 1.0-2.5 428
200 483
240 683
1200 160 1.0-3.15 535
200 765
240 1077
300 1358
1400 200 1.0-3.15 920
240 1298
300 1657
400 2381
1600 200 1.25-3.15 1074
240 1515
300 1953
400 2807
1800 240 1.25-4.0 2200
300 2724
400 4106
500 5036

Capacity is under 30° angle and maximum belt speed.

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦ Material to be processed:

♦ Top horizontal section length:

m

♦ Bulk density:

t/m3

♦ Conveyor angle:

___°

♦ Water content:

%

♦ Lifting height:

___m

♦ Material temperature:

°C

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Downstream equipment (what kind of equipment is used to feed the material):

♦ Material is sticky or not:

(Yes or No)

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Granule size of material:

mm

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Max. Granule size:

mm

♦ Working environment:

(indoor or outdoor)

♦ Handling capacity:

t/h

♦ Working environment temperature:

°C

♦ Conveying length:

m

♦ Working power supply:

3 Phase V Hz
♦ Bottom horizontal section length: m

♦ Quantity:

sets
