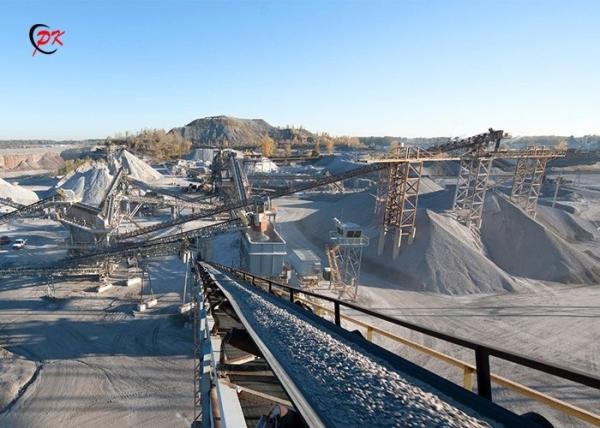

DTIIA Fixed Coal Mining Long Distance Ore Steel Roller Belt Conveyor
DTIIA Fixed Coal Mining Long Distance Ore Steel Roller Belt Conveyor
DTIIA Fixed Coal Mining Long Distance Ore Steel Roller Belt Conveyor
DTIIA Fixed Coal Mining Long Distance Ore Steel Roller Belt Conveyor
Specifications
Brand Name :
PK
Model Number :
DTII（A）
Certification :
CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600SETS/YEAR
Delivery Time :
ABOUT 35 DAYS
Packaging Details :
Standard export package
Model :
DTII（A）
Belt Width :
500/650/800/1000/1200/1400mm/1800mm/2000mm/2400mm
Belt speed :
0.8/1.0/1.25/1.6/2.0/2.5/3.15m/s
Belt type :
Nylon/Polyester/Steel cable/Cotton canvas
Tensioning mode :
Spiral taut/Heavy hammer taut/Car type taut
Capacity :
65~3950m³/h
Inclination :
0° ~30°
Bearing brand can be domestic or imported :
LYC, HRB , WZS, FAG, NSK, SKF etc.
Description

DTIIA Fixed Coal Mining Long Distance Ore Steel Roller Belt Conveyor

Introduction

Belt Conveyor is a kind of conveying machine which transport materials from one place to another place continuously. Belt conveyor machine consist of conveyor frame, conveyor belt, conveyor pulley, conveyor rollers, tension devices, driving unit and other components etc. Belt conveyor system can transport materials in bulk and bagged, such as stone, sand, coal, concrete, cement, gravel, fertilizer, mineral ore, limestone, coke, sawdust, wood chip, bulk material, grain, corn flakes, carbon black, etc.

Advantages and Features
1. Conveyor length can be customized according to your need.
2. 0° - 30° inclination to suit the on-site conditions.
3. Belt width can be 500-2400mm as your require.
4. Low horsepower compared with other types of conveyor
5. Belt conveyor cleaner is installed to clean the conveyor belt.

DTIIA Fixed Coal Mining Long Distance Ore Steel Roller Belt Conveyor

Technical datas:

Roller form Running speed(m/s) Belt width (mm)
500 650 800 1000 1200 1400
capacity(m3/h)
Trough roller 0.8 78 130 -- -- -- --
1.0 97 164 278 435 655 891
1.25 122 206 348 544 821 1115
1.6 156 264 445 696 1048 1427
2.0 191 323 546 853 1284 1748
2.5 232 391 664 1033 1556 2118
3.15 -- -- 824 1233 1858 2528
4.0 -- -- -- -- 2202 2996
Falt roller 0.8 41 67 118 -- -- --
1.0 52 88 147 230 345 469
1.25 66 110 184 288 432 588
1.6 84 142 236 368 558 753
2.0 103 174 289 451 677 922
2.5 125 211 350 546 821 1117


Selection Conditions

♦ Material to be processed:

♦ Installation angle:

___°(if the installation is inclined)

♦ Bulk density:

t/m3

♦ Lifting height:

___m (if there is slope angle)

♦ Water content:

%

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material temperature:

°C

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

mm

♦ Working environment:

(indoor or outdoor)

♦ Max. Granule size:

mm

♦ Working environment temperature:

°C

♦ Handling capacity:

t/h

♦ Working power supply:

3 Phase V Hz

♦ Conveying length:

m

♦ Quantity:

sets
♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
