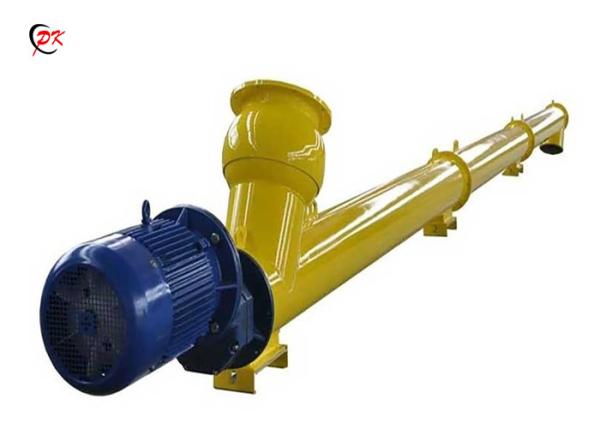

Small Cement Auger Screw Conveyor Inclined Tubular Hopper Concrete Powder Worm
Small Cement Auger Screw Conveyor Inclined Tubular Hopper Concrete Powder Worm
Small Cement Auger Screw Conveyor Inclined Tubular Hopper Concrete Powder Worm
Small Cement Auger Screw Conveyor Inclined Tubular Hopper Concrete Powder Worm
Specifications
Brand Name :
PK
Model Number :
LS
Certification :
CE Certificate, ISO9001:2015, BV, SGS,Business-license, ISO14001:2015
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2000SETS/YEAR
Delivery Time :
ABOUT 30 DAYS
Packaging Details :
Standard export package
Screw pitch :
160/200/250/315/400/500/560mm
Capacity :
3~180t/h
Reducer :
YZQ250/350/400/500/650/750/850
Material :
Stainless Steel
Material Feature :
Heat Resistant
Dimension(L*W*H) :
Customer Request
Description

Small Cement Auger Screw Conveyor Inclined Tubular Hopper Concrete Powder Worm

Introduction

Pipe screw conveyor is a mechanism that uses a rotating helical screw blade coiled around a shaft; it offers a variety of solutions for bulk materials conveying like granular and small bulk materials horizontally or at inclined angle, meanwhile, pipe screw conveyor is very cost-effective and requires minimal maintenance to operate. Pipe screw conveyor is widely used for transporting coal, ash, slag, cement, food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat and bone meal, municipal solid waste, and many others.

Features:

1. The large bearing capacity, safe and reliable.

2. Strong adaptability, easy installation and maintenance, long service life.

3. The machine is small in size, high speed, ensure rapid delivery uniformity.

4. The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.

5. Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.

Technical Parameter:

LS screw conveyor specification & technical parameters
Type LS160 LS200 LS250 LS315 LS400 LS500 LS630 LS800 LS1000 LS1250
Diameter/mm 160 200 250 315 400 500 630 800 1000 1250
Screw pitch/mm 160 200 250 315 355 400 450 500 560 630
technical parameters n 112 100 90 80 71 63 50 40 32 25
Q 8 14 24 34 64 100 145 208 300 388
n 90 80 71 63 56 50 40 32 25 20
Q 7 12 20 26 52 80 116 165 230 320
n 71 63 56 50 45 40 32 25 20 16
Q 6 10 16 21 41 64 94 130 180 260
n 50 50 45 40 36 32 25 20 16 13
Q 4 7 13 16 34 52 80 110 150 200
n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33


Small Cement Auger Screw Conveyor Inclined Tubular Hopper Concrete Powder WormSelection Conditions

♦ Material to be processed:

_

♦ Installation angle:

___° (if the installation is inclined)

♦ Bulk density:

t/m3

♦ lifting height:

___m (if there is slope angle)

♦ Water content:

%

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material temperature:

°C

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

mm

♦ Working environment:

(indoor or outdoor)

♦ Max. Granule size:

mm

♦ Working environment temperature:

°C

♦ Handling capacity:

t/h

♦ Working power supply:

3 Phase V Hz
♦ Conveying length (distance between inlet and outlet): m

♦ Quantity:

sets
♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
