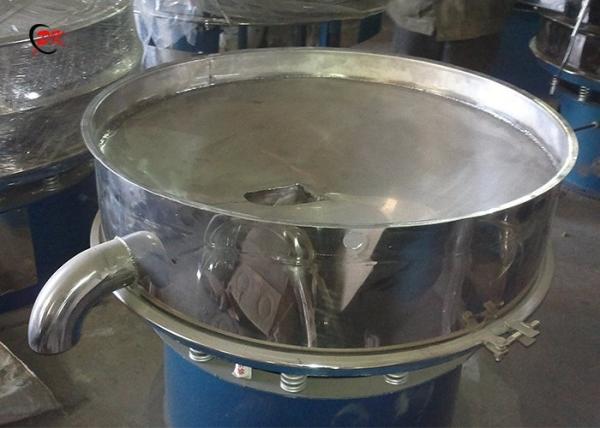

Ultrasonic Rotary Vibrating Screen Food Processing Coffee Powder Vibration Sieve Separator

Introduction
Cost-effective Ultrasonic Food Processing Coffee Powder Vibration Sieve Separator is a new vibrating sieve machine combining ultrasonic generator and round vibrating separator, in addition to three-dimensional round separator itself,Ultrasonic round separator overlaps ultrasonic vibrating on the screen surface, which effectively solves the materials difficult to screen, such as: various high electrostatic, superfine, strong adsorption, easily aggregated, light relative density materials.

Working Principle
The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode, rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.​

Application

1. Chemical industry: resin, paint, industrial drugs, cosmetics, paint, herbal powder and so on.

2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, etc.

3. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod4. powder, manganese dioxide, electrolytic copper powder, Electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.

5. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon.

Advantages and Features
1. Various material separation range- power or particle,wet or dry, heavy or light,coarse or fine, hot or cold.
2. Various size range-available diameter from 400mm to 2000mm,mesh size can reach 500 mesh ( 0.028 mm).
3. Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
4. Quick Screen Changes-Quick release device is provided to replace the screen with 5 minutes.
5. Automatic screen cleaning-bouncing balls keep screen openings clean and maintain a good efficiency.
6. Customized order- Rotary vibrating screen can be customized according to customer's demand.
7. Unique design-Mature technology,compact and simple structure,convenient installation and maintenance.
8. Wide application-Rotary vibrating screen is applicable to any powder, granule, particle and mucus.

Technical Parameters

Note: the parameter above is just for reference,it can be customized by different requirment.

Selection Conditions
