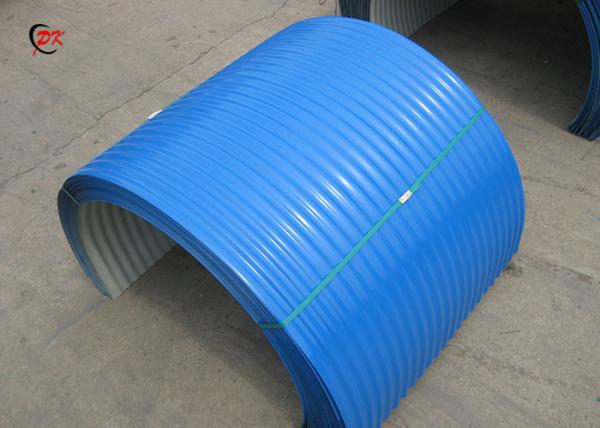

Easy Maintenance Conveyor Belt Hood Conveyor Fixed Type Carbon Steel Covers

Introduction

The rain cover is suitable for belt width B500-B3000, and can also produce special shape rain cover according to customer requirements. The thickness of the color plate for rain cover is 0.5mm-1.0mm, and the material is colored steel plate, galvanized plate, stainless steel plate, etc.

The rain cover of the belt conveyor has a simple manufacturing process and can be formed at one time, and the economic effect is outstanding, especially for a product with a complicated shape and a small amount of molding, and the process superiority is further emphasized.

Features and Advantages

1. No installation supports needed to brace covers on conveyor.

2. Rigid, corrugated covers are infinitely stronger than smooth designs.

3. Conveyor cover installation is not dependent on the location of idlers.

4. Overlapped edges double thickness increases conveyor cover strength.

5. Waves on surface to increase the support force, even can withstand a person.

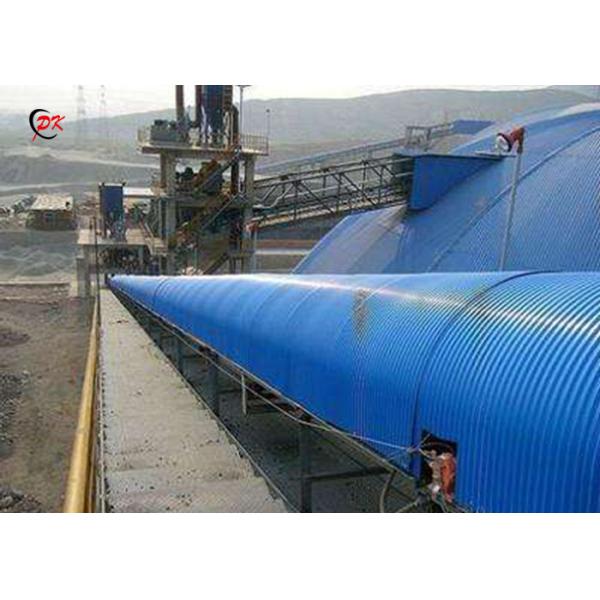

6. Conveyor cover protects belt conveyor free from rain, dust, sunshine, wind etc.

7. Galvanized steel plate or fiberglass construction material can be optional.

8. Symmetrical design allows easy placement, quick installation and safe access.

9. Openable conveyor cover designed with hinges and self-tapping screws.

10. Full style hinges of the conveyor covers are protected with rust free coating.

Technical Parameter

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦Thickness: ___mm (PS. We can customize the thickness according to the customer’s requirement as well as provide the common thickness of 0.5mm, 0.6mm and 0.8mm)

♦For it working with the belt conveyor, we will very appreciate if you can provide us the corresponding layout drawing to normally install it;

If can’t, please refer to the following picture and provide the core parameters for a better quote and production: L ___mm; H ___mm; R ___mm
