Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20
Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20
Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20
Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20
Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20
Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20
Specifications
Brand Name :
PK
Model Number :
YDT5~YDT20
Certification :
CE Certificate, ISO9001:2015, ISO14001:2015, BV, SGS, Business-license
Place of Origin :
Xinxiang City, Henan Province, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
50000 Pieces/Year
Delivery Time :
20 days

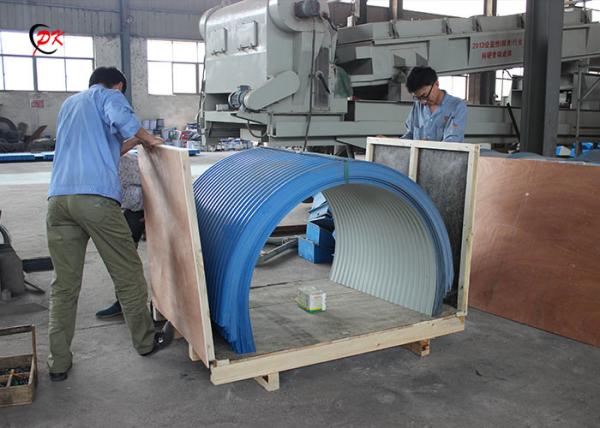

Packaging Details :
Standard Wooden Package
Material :
Colorized Galvanized Steel Plate or As Requested
Color :
Sea Blue/Orange or As Requested
Heigh :
573~1423mm or As Requested
Dimension(l*w*h) :
Customized Size
Radius :
423~1273mm or As Requested
Material feature :
Heat Resistant, Fire Resistant
Structure :
Conveyor Belt
Condition :
New
Application :
Food, Cement, Paper Making Mesh, Packaging, Crusher Plant
After-sales service provided :
Field maintenance and repair service, Online support
Type :
Grass PVC Belt PVC Pattern Belt PVC Conveyor Belt
Feature :
Simple Operation
Description

Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20

Introduction

The rain cover has a fixed cover and an open cover, which are all made of galvanized corrugated steel or color coated steel. Generally, there are 9 fixed covers and 1 open and closed cover for every 10 covers. It is also possible to alternate the two covers.

The main types of rain cover are sea blue, white ash, red, other colors, etc.

Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20

Features and Advantages

1. No installation supports needed to brace covers on conveyor.

2. Rigid, corrugated covers are infinitely stronger than smooth designs.

3. Conveyor cover installation is not dependent on the location of idlers.

4. Overlapped edges double thickness increases conveyor cover strength.

5. Galvanized steel plate or fiberglass construction material can be optional.

6. Symmetrical design allows easy placement, quick installation and safe access.

7. Openable conveyor cover designed with hinges and self-tapping screws.

8. Full style hinges of the conveyor covers are protected with rust free coating.

Technical Parameter

Model

Belt

Width

(mm)

Thickness

(mm)

 Material

Opening

Width

(mm)

Height

(mm)

Radius

(mm)
YDT5 500

0.5

0.6

0.8

1.0

Colorized

Galvanized

Steel Plate

 846 573 423
YDT6 650 996 648 498
YDT8 800 1196 748 598
YDT10 1000 1396 848 698
YDT12 1200 1606 953 803
YDT14 1400 1856 1078 928
YDT16 1600 2056 1173 1028
YDT18 1800 2300 1280 1150
YDT20 2000 2546 1423 1273

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Selection Conditions

♦Thickness: ___mm (PS. We can customize the thickness according to the customer’s requirement as well as provide the common thickness of 0.5mm, 0.6mm and 0.8mm)

♦For it working with the belt conveyor, we will very appreciate if you can provide us the corresponding layout drawing to normally install it;

If can’t, please refer to the following picture and provide the core parameters for a better quote and production: L ___mm; H ___mm; R ___mm

Food Industry Rubber Conveyor Belt Covers Corrugated Plate YDT5 ~ YDT20

We mainly provide the following equipment:

Vibrating Screen Rotary vibrating screen
Ultrasonic vibrating screen
Gyratory screen
Trommel screen
Linear vibrating screen
Circular vibrating screen
Dewatering screen
Vibrating feeder
Belt Conveyor Belt conveyor
Sidewall belt conveyor
Portable belt conveyor
Shuttle conveyor
Tripper
Bucket Elevator Efficient bucket elevator
Belt bucket elevator
Ring chain bucket elevator
Plate chain bucket elevator
Cement bucket elevator
Silo bucket elevator
Screw Conveyor U-type screw conveyor
Cement screw conveyor
Pipe screw conveyor
Scraper Conveyor Horizontal scraper chain conveyor
Incline scraper chain conveyor
Grain scraper chain conveyor
