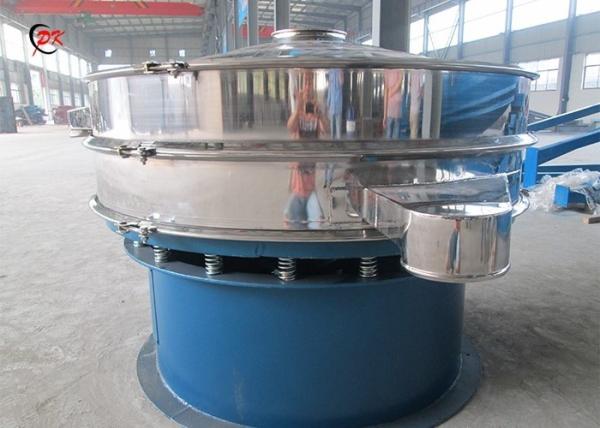

Milk Powder Rotary Vibrating Screen , Mini Vibratory Screening Equipment
Milk Powder Rotary Vibrating Screen , Mini Vibratory Screening Equipment
Milk Powder Rotary Vibrating Screen , Mini Vibratory Screening Equipment
Milk Powder Rotary Vibrating Screen , Mini Vibratory Screening Equipment
Specifications
Brand Name :
PK
Model Number :
XZS600/800/1000/1200/1500/1800/2000
Certification :
CE Certificate,ISO9001:2015, BV, SGS,Business-license, ISO14000:2015
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100SETS/MONTH
Delivery Time :
10-15DAYS
Packaging Details :
Standard export package
Model :
ΦXZS400/600/800/1000/1200/1500
Package :
Standard export packing
Screen diameter :
400-2000mm
Accessory :
Ultrasonic generator
Layer No. :
2-5
Power :
0.2-3kw
Material :
stainless steel
Production period :
18 days
Equipment color :
Customized
Frequency :
1500rpm
Description

Milk Powder Rotary Vibrating Screen , Mini Vibratory Screening Equipment

Introduction

Milk Powder Rotary Vibration Screen Mini Rotary Vibrating Sieve is suitable for sieving and filtering grain, powder and mucus material. The vibration source of rotary vibration sieve is vertical motor, the motor is installed with upper and lower eccentric weight at both ends,changing the motor rotary motion into horizontal, vertical, and inclined motions,hence the movement is transferred to the screen surface. It is featured by its low noise, high efficiency, fast network required for 3-5 minutes, fully enclosed structure,Rotary Vibrating Sieve is widely used in many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on, dealing with various kinds of materials.

Working Principle
The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode,rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.

Milk Powder Rotary Vibrating Screen , Mini Vibratory Screening Equipment

Technical Parameters

Model Nominal Diameter(mm) Screen Diameter(mm) Screen Surface Area(m3) Feeding size (mm) Specification NO. of Layers Frequency(rpm) Power(Kw)
XZ-400 400 340 0.09 <10 2-325 1-5 1500 0.18
XZ-600 600 530 0.22 <10 0.2
XZ-800 800 720 0.4 <20 0.55
XZ-1000 1000 900 0.63 <20 0.75
XZ-1200 1200 1100 0.95 <20 1.1
XZ-1500 1500 1400 1.5 <20 1.5
XZ-1800 1800 1710 2.3 <30 2.2
XZ-2000 2000 1910 2.86 <30 3.7


Note: the parameter above is just for reference,it can be customized by different requirment.

Selection Conditions

♦ Material to be processed: _____ ♦Max. granule size of the feeding material: _____mm
♦ Handling capacity (Ps. It means the total ♦Layer number: ______
material capacity feeding from the inlet): _____t/h ♦Mesh size of each layer: _____mm
♦ Bulk Density: _____t/m3 ♦Particle distribution percentage:____________
♦ Material temperature: _____ºC; (please check the following example to help you
♦ water content:____% understand it.Supposing the layer number is 2
♦ Material is corrosive or not: ____ (Ps. Yes or No) and the aperture size of each layer is 10mm and 5mm,
♦ Material is sticky or not: ____ (Ps. Yes or No) then you will get 3 kinds of products: X,Y and Z.
♦ Working environment is indoor or outdoor: _____ X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦ Working environment temperature: ______ ºC We want to confirm the following information:
♦ Upstream equipment (Ps. It means what kind of 1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____ 2)The percentage of Y in the whole material:_____%;
♦ Downstream equipment (Ps. It means what kind of 3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____ ♦Working power supply: _____V ______HZ
