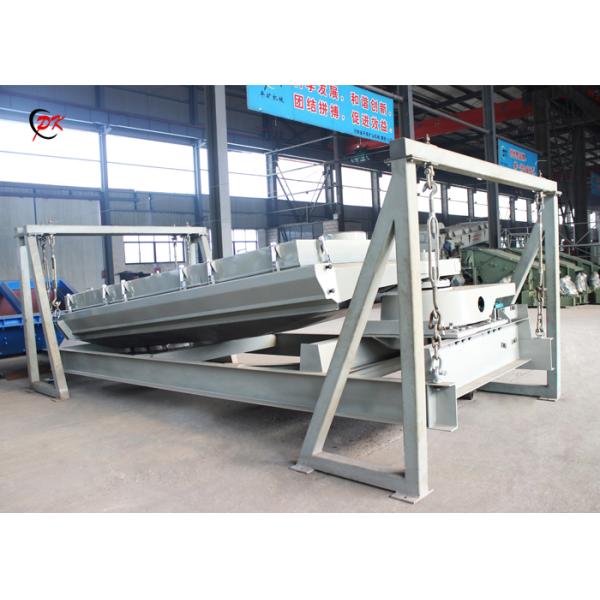

Chemical Vibrating Sieve Reciprocating Motion 75mm~90mm Amplitude
Chemical Vibrating Sieve Reciprocating Motion 75mm~90mm Amplitude
Chemical Vibrating Sieve Reciprocating Motion 75mm~90mm Amplitude
Chemical Vibrating Sieve Reciprocating Motion 75mm~90mm Amplitude
Specifications
Brand Name :
PK
Model Number :
PXZS
Certification :
CE Certificate,ISO9001:2008, BV, SGS,Business-license,ISO14001:2015
Place of Origin :
Xinxiang City, Henan Province,China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100SETS/MONTH
Delivery Time :
About 30 days
Packaging Details :
Standard export package
Model :
PXZS1224/1230/1236/1536/1830/1836/1840
Capacity :
10~120m3/h
Layer :
1
Feeding Size :
<75mm
Screening area :
2.0~10m2
Frequency :
770rpm-1000rpm
Amplitude :
70mm~90mm
Color :
Industrial ash
Description

Chemical Vibrating Sieve Reciprocating Motion 75mm~90mm Amplitude

Introduction

Gyratory screen is a new developed equipment particularly for fine material.The main function is to provide accurate separation of materials, as well as resulting greater product yields at higher production rates.

Plane rotary screen machine is the most effective sieve screening equipment to simulate the principle of artificial sieve movement. The principle of plane rotary motion is adopted to reduce the basic load of the equipment. Meet all ultra-fine powder and granular materials, especially the material which is difficult to handle.

Advantages and Features

1. Large capacity than normal vibrating screen;

2. The accurate is six stage separation, and screening efficiency is highly from 95% to 99%

3. Using silicone rubber ball, ultrasonic device such as efficient clean network system.

4. Without blocking mesh net,Sealed dust and safe operation;

5. The acceleration is 4.5 times lower than the vibrating screen,so the screening parts life increase and reduce maintenance;

6. With low noise which is less then 75 db. Optimize the weight balance, foundation dynamic load is low.

Application

1. Mainly used for screening, filtering, grading and removing impurity for all kinds of powder, particle, and liquid.
2. Mainly suitable materials: chemical, medical powder and particle, coating, pigment, cosmetic, grease, resin, ceramic sauce, slurry, quicklime, fireproofing powder, metallurgy powder, starch,flour, rice flour, carbon powder, graphite powder, manganese powder, sewage, waste oil, dung, etc.


Technical Parameters

Model Screen Surface Layer No. Feeding Size Amplitude (mm) Frequency (r/min) Power (kW)
width length
PXZS1224 1200mm 2400mm 1-4 <50mm 75-90 1450 5.5
PXZS1230 1200mm 3000mm 1-4 <50mm 75-90 1450 5.5
PXZS1236 1200mm 3600mm 1-4 <50mm 75-90 1450 5.5
PXZS1524 1500mm 2400mm 1-4 <50mm 75-90 1450 5.5
PXZS1530 1500mm 3000mm 1-4 <50mm 75-90 1450 5.5
PXZS1536 1500mm 3600mm 1-4 <50mm 75-90 1450 5.5
PXZS1830 1800mm 3000mm 1-4 <75mm 75-90 750 7.5
PXZS1836 1800mm 3600mm 1-4 <75mm 75-90 750 7.5
PXZS1840 1800mm 4000mm 1-4 <75mm 75-90 750 7.5
PXZS2036 2000mm 3600mm 1-4 <75mm 75-90 750 7.5
PXZS2040 2000mm 4000mm 1-4 <75mm 75-90 750 11
PXZS2050 2000mm 5000mm 1-4 <75mm 75-90 750 11

Note: The parameter above is just for reference,it can be customized by different requirment.


Chemical Vibrating Sieve Reciprocating Motion 75mm~90mm Amplitude

Selection Conditions

♦ Material to be processed:

♦ Screen layer/deck/sieve number:

♦ Bulk density:

t/m3

♦ Mesh size of every screen layer/deck/sieve:

mm

♦ Material Temperature:

ºC

 ♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Water Content:

%

 ♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

 ♦ Drive: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

 ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

mm

♦ Working environment:

(indoor or outdoor)

♦ Max. granule size:

mm

♦ Working environment temperature:

°C

♦ Particle distribution percentage:

♦ Working power supply:

3 Phase V Hz

♦ Handling capacity:

t/h

♦ Quantity:

sets
