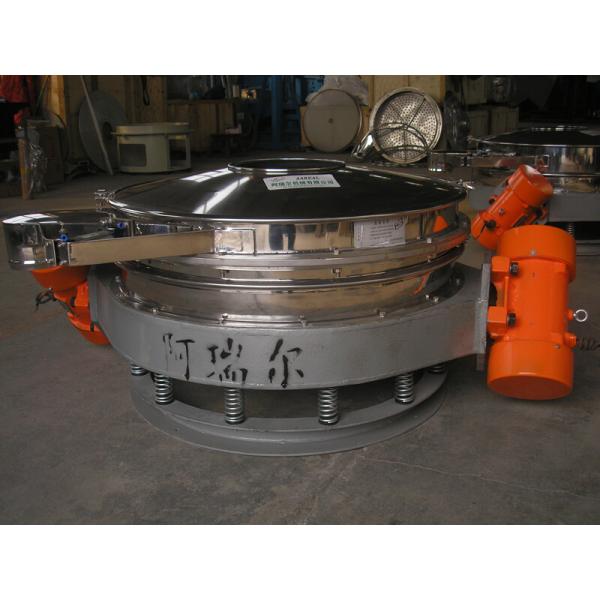

Stainless Steel Vibro Screen Machine Flow Thru Separator For Flour Impurity Removal

Overview of Low Profile Flow-thru Separator:
Low profile flow-thru separator is also called low-profile vibrating sieve, low profile separator, flow-thru separator, vibro flow-thru separator, inline screen, vibration in-line screen, inline vibro screen, vibrating control screener, direct discharge screen, low profile circular separator, straight-flow separator, flow through inline sifter, flowthru vibrating separator, flow-thru rotary vibrating separator, flow-thru vibro separator , flow- thru vibro screen, flour sifter etc.

The flow-thru separator is a kind of sieving machine with unique purpose, which is developed by our company's t technical personnel after absorbing Japanese technology. It can be widely used in the sieving of flour in the production of instant noodles, the classification of particles in the production of washing powder, the grading of particles in the production of starch, and other industries which require large screening output.

It has the characteristics of high screening accuracy, large throughput, good sealing, easy to combine with the production line, automatic materials and slag discharge, continuous production and so on.

There are two power arrangement modes: single motor and double motors.

Working Principle of Low Profile Flow-thru Separator:

The double motor type is driven by two horizontal vibration motors, which produce three-dimensional vibration. It not only makes the material more evenly distributed, but also removes large particles, keeping the screen surface clean and smooth. And the screening effect is better.

The single motor type adopts single horizontal vibration motor, simple and convenient.

Features of Low Profile Flow-thru Separator:
1. Compact structure, low occupancy height (can be as low as 340mm)
2. Material flow adopts direct-current design.The product is discharged directly from the bottom of the sieve machine, easy to connect with the production line.
3. It is used for the high production capacity of coarse screening, very suitable for the dry materials security screening with less large particles.
4. Small and light.

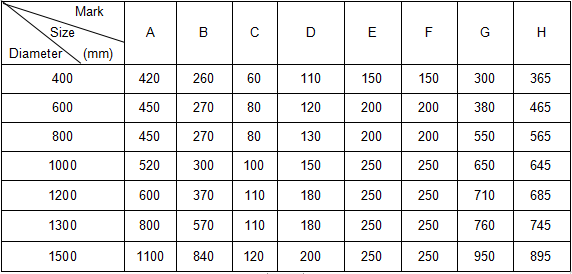

Technical Parameters of Low Profile Flow-thru Separator:

Double Motor type, with Pneumatic Gate Valve
