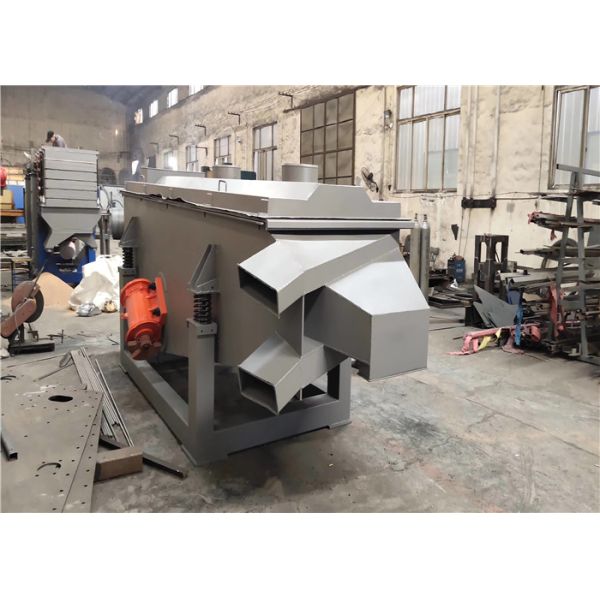

Rectangular Vibrating Screen Separators For Arenaceous Quartz Silica Sand

Introduction of Rectangular Vibrating Screen Separators for Arenaceous Quartz Silica Sand:

The rectangular vibrating screen separators for arenaceous quartz silica sand is is a kind of closed and lightweight linear vibrating sifting equipment that is commonly used, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen of the sifter, materials evenly go into the feed port of the linear vibrating screen from the feeding machine, generate multi-standarts materials through the multilayer screen and be discharged from each discharge hole. It is also called the linear vibrating screen, rectangular separator, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.

This sieving machine use two units of horizontal vibration motors as the power source, so that the screened material was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet. It can be supplied of different sizes depending on capacity required. And can be supplied of multi-layer as requirements of screening aim. Inlets, outlets and legs can be customized to fit your installation requirements.

Features of Rectangular Vibrating Screen Separators for Arenaceous Quartz Silica Sand​​​:

1. Simple structure, easy to install and maintain.
2. Low consumption with high yield and low cost.
3. Can be used for single-layer, multi-layers screening with long life.
4. Good sealing without dust flying.
5. Material auto discharge, be able to continuous operation.
6. Sieve body parts adopt steel plates and sectional material welded together (part of the body for bolt connection) the overall good stiffness, strong and reliable.

Technical Parameters of Rectangular Vibrating Screen Separators for Arenaceous Quartz Silica Sand:

Important Information About Rectangular Vibrating Screen Separators for Arenaceous Quartz Silica Sand​​:

Working Principle of Rectangular Vibrating Screen Separators for Arenaceous Quartz Silica Sand​​:

The rectangular vibrating screen separators uses double vibrating motors to be power source, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction, so its movement trajectory is linear. There is an angle of inclination two motor axis relative to screen deck, under the influence of exciter force and materials self weight,materials are threw up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials. Applied in flowing line to achieve automatic operation.

Structure of Rectangular Vibrating Screen Separators for Arenaceous Quartz Silica Sand​​​:

The linear vibrating screen is mainly composed of sieve box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.

Application of Rectangular Vibrating Screen Separators for Arenaceous Quartz Silica Sand​​:

It is mainly used in powder, granular materials selection and classification, widely used in plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon, fertilizer and other industries.

Chemical industry: Resin, powder, paint, fine powder, soda, citric acid etc.
Ceramic industry: Alumina, quartz sand, slurry, glaze and pigment etc.

Foodstuffs industry: Sugar, salt, alkali milk, powder, soybean milk, yeast etc.

Pharmacy: Chinese medicine powder, western medicine powder etc.
Metallurgy: Metal powder, welding rod powder etc.
Paper making industry: Black and white liquid paper, pulp, waste water recycle etc.
Pollutant treatment: Rubbish waste, oil animal, droppings etc.
