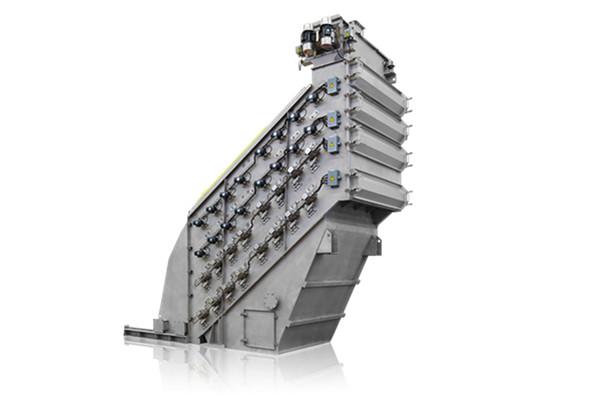

2400*6000mm 3 Deck High Frequency Screen Vibratory Sieve For Marble Calcium Carbonate Particles Precise Separation Driven By Unbalanced Motors

Specifications

Brand Name :

AAREAL

Model Number :

AWAU

Certification :

ISO9001:2015

Place of Origin :

China

MOQ :

1 Set

Price :

Negotiable

Payment Terms :

T/T, L/C

Supply Ability :

5 sets per month

Delivery Time :

30~35 work days after order confirmed

Packaging Details :

Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts

Vibration Frequency :

upto 3000 times/min, 3600 times/min etc.

Features :

only the mesh vibrates, the screen box does not vibrate

Control Box :

Included

Vibration Intensity :

8~10g

Inclincation Angle :

20°~45°, and the angle is adjustable

Screen Vibration Amplitude :

1~3mm

Characteristics :

Minimal dynamic load, small footprint, Safe to use, easy to maintain etc.

Application :

sugar, salt, frac sand, fertilizer etc.

Screen Width :

1~2m

Screen Length :

1.5~6 m

Mesh Size :

0.07~10mm

Layers of Screen :

1~4 layers

Power Source :

electromagnetic vibrators or unbalanced motors etc.

Description

2400*6000mm 3-Deck High Frequency Screen Vibratory Sieve for Marble Calcium Carbonate Particles Precise Separation Driven By Unbalanced Motors

Introduction of 2400*6000mm 3-Deck High Frequency Screen Vibratory Sieve for Marble Calcium Carbonate Particles Precise Separation Driven By Unbalanced Motors:

For high frequency fine screen, the screen surface vibrates, and screen box does not move. It is used for dry and wet screening and dehydration operations of 0.07~10 mm particles.

Features:

1. No clogged screen meshes due to to automatic cleaning;
2. Vibration amplitudes are freely adjustable;
3. No dynamic loads due to static housing;
4. Continued production even if one drive (unbalance motor or electromagnetic vibrator) breaks down;
5. Use end-tension screen structure, quick screen replacement without entering the machine;
6. Motor inspection possible during operation;
7. Optimal separation of aggregates with narrow particle size distribution;
8. Highly efficient energy transmission and therefore low energy consumption.

Working Principle of 2400*6000mm 3-Deck High Frequency Screen Vibratory Sieve for Marble Calcium Carbonate Particles Precise Separation Driven By Unbalanced Motors:

AAREAL high frequency screen uses electromagnetic vibrators or unbalanced motors as the power source, the high frequency vibration directly excites the screen, making the screen work in a near resonance state. The screen surface amplitude is 1~3mm, and the vibration strength is 2~4 times that of the general vibrating screen. Under the action of high-frequency vibration, the screen surface keeps the screen clean. Even difficult-to-screen materials can be screened with high efficiency and accuracy.

The installation angle can be easily adjusted at any time to adapt to different material properties and different screening operations.

Technical Parameters:

Power source: electromagnetic vibrators or unbalanced motors
Fed by a vibrating distributor, the feeding is uniform
Up to 4 layers of screens can complete the production of 2~5 products
Screen Width: 1~2 m
Screen Length: 1.5~6 m
Screen Angle: 20°~45°, and the angle is adjustable
Mesh Size: 0.07~10mm

Models:

WA(WAU WAF)-1015 1025 1035 1040

1220 1230 1240 1250

1530 1540 1550 1560

1840 1850 1860

2045 2060 2560 3060

WAW- 1230 1245 1260 1645 1660
