Specifications
Brand Name :
BVEM
Model Number :
BJZC-BFS-400-180
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 sets per year
Delivery Time :
30 work days
Packaging Details :
wooden case
Product name :
dry stone column device
Max rotation speed :
1800 rpm
Control type :
Inverter Control
Pipe diameter(mm) :
DN250
Description

China manufacturer 180kW dry bottom feed vibroflot for gravel pile compact vibroflotaton

Type BJZC-BFS-400-180
Power(kW) 180
Rotation speed(rpm) 1200-1800
Working pile diameter (mm) 900-1200
System pressure(bar) 6
Vibration force(kN) 200-300
Hopper volume(m³) 1.2
Pipe diameter(mm) DN250
Control type Inverter Control
Cooling-down method Circulating water cooling
Air flow rate(m³/min) 10
Vibrator size L/W/H(mm) 2600×600×700
The bin size L/W/H(mm) 4800×1300×(1300-1500)
Extension tube size L/W/H(mm) 12000×300×600
Weight (Standard part+Extension tube) (ton) 9+3×n

Overview

Bottom feed vibroflotation method : during the construction of Vibroflotation Gravel Pile or vibroflotation sand pile, the filling material directly reaches the real-time hole bottom position of pile making through the filling pipe attached to the vibroflotation equipment, and the gravel pile or sand pile is carried out. The emergence and application of bottom feed vibroflotation method further expands the applicable scope of vibroflotation method in various projects.

180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation 180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation

Bottom feed vibroflotation method-- bottom feed vibroflot--filling material

Component parts of bottom feed vibroflot system

The bottom bottom vibroflotation construction needs to be implemented by using the bottom feed vibroflotation integrated system. This integrated system consists of the following parts:

(1) Vibro float system: it is composed of electric or hydraulic vibrator, extension tube, vibration damper and electric control system.

(2) Feeding system: mainly composed of winch type and slide rail type lifting hopper.

(3) Stone bin system: it is composed of double bin or single bin silo, material level meter and silo control system.

(4) filling tube system: it is composed of filling tube and material tube and damper.

180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation 180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation 180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation

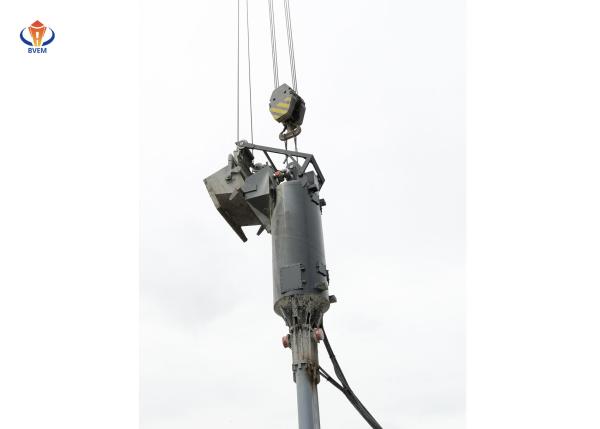

Stone Bin- Feeding Mid tube- vibroflot with feeding bottom tube

Description of bottom feed vibroflot construction accessories

The supporting lifting equipment for the bottom feed vibroflotation device includes crawler crane, walking pile frame, rotary drilling frame, etc. There are also cases of supporting the use of excavators abroad. In addition, the bottom discharge vibroflotation construction also needs to be equipped with other supporting equipment and facilities, such as loader, generator, air compressor, water pump, etc. The construction personnel shall select the type, model and capacity of these equipment or facilities according to different conditions of the project.

180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation

Auxiliary equipment display diagram for bottom feed vibroflot construction
