Specifications
Brand Name :
VICTOR
Model Number :
VC60E+
Certification :
CE
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
T/T PAYPAL
Supply Ability :
10000PCS
Delivery Time :
5-45 DAYS
Packaging Details :
28PCS/CTN
Price :
100pcs: USD62.3/pc; 100pcs to 500pcs: USD59.3/pc; 500pcs to 1000pcs: USD56.2/pc;
COLOR :
BLACK AND ORANGE
SIZE :
175(L) ×110(W) ×70(D) mm
POWER :
1.5V AA * 6PCS
WEIGHT :
0.7KG
PACKING :
28PCS/CTN
Material :
Plastic, metal
Description

Digital 5000V High Voltage Insulation Tester With Multimeter / Analog

VC60E+ Digital 5000V Insulation Resistance Tester High Voltage megohmmeter meter with Multimeter and Analog

Introduction

The digital insulation tester uses the DC-excited transducer to convert DC 12V to DC high voltage 2500V/5000V. The main amplifier tests the insulation voltage by the current ratio measurement of traditional megger. The input terminal uses micro-current to test anti-interference circuit and the output terminal adopts the division function of double integrating digital voltmeter to process the data conversion. It is characteristic of strong loading capacity, high anti-interference of electric field, portable operation, wide range, backlight display and so on. It could also be used to test commercial electric power. With its stable performance and high grade appearance, it is widely used to test the insulated voltage resistance for electrical equipment, instrumentation, cables and so on.

Appearance Description

1.2.3.4. Voltage Selection Switch (It includes AC750V/2GΩ/ 20GΩ/200GΩ)

5. Voltage Selection Switch (2500V/5000V) (except AC750V)

6. Power Switch: Self-locking power switch (POWER).

7. High voltage indication: LED display.

8. Test Switch

9. LCD display: display the measuring value and unit symbol.

1. Instrument mode

11. L: jack for circuit under test.

12. G: Protection jack. When the object under test is requested to add the

protection ring to eliminate leakage effects, the electrode wire of protection

ring should be connected to "G" jack.

13. ACV: Input end for AC voltage measurement.

14. E: Jack for object under test.

15. Power adapter jack .

Technical Features

3.1. General Features

(1) Display: 84.8×59.8mm LCD display. The max display “1999”.

(2) Over range indication: the MSD shows "1" when it is over ranged.

(3) Alarm function: the meter will alarm automatically when the tested resistance is below the lower range and the reading is invalid.

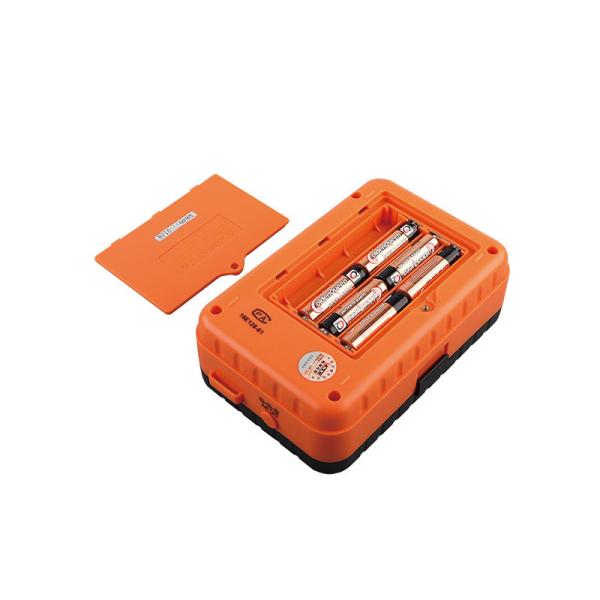

(4) Power supply: #5 batteries LR6 (1.5) ×8.

(5) Low battery indication: “”displays

(6) Operation environment: temperature 0~40℃,30% R.H- 85% R.H

(7) Weight: Approx. 630g (including batteries)

Basic function Range Basic accuracy
Output Voltage 2500V/5000V ±20%
Short-circuit current <4mA

Insulated Resistance

2500V

2GΩ:0.05-1.999GΩ ±(5%±5 digit)
20GΩ:0.5-19.99GΩ ±(5%±5 digit)
200GΩ:5.0-199.9GΩ ±(10%±5 digit)

Insulated Resistance

5000V

2GΩ:0.05-1.999GΩ ±(5%±5 digit)
20GΩ:0.5-19.99GΩ ±(5%±5 digit)
200GΩ:5.0-199.9GΩ ±(10%±5 digit)
Voltage Measurement AC750V ±(1% +6 digit)
Jack Position Insulated Resistance: L,E AC750V: ACV G
