Specifications
Brand Name :
VICTOR
Model Number :
VICTOR 81B
Certification :
CE / RoHS
Place of Origin :
CHINA
MOQ :
100pcs
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
10000pcs available
Delivery Time :
5 to 30 days
Packaging Details :
Color box , 60pcs/Carton, 20KG/Carton
Price :
100pcs: USD7.2/pc; 100pcs to 500pcs: USD6.8/pc; 500pcs to 1000pcs: USD6.5/pc; Above 3000pcs: USD6.2/pc
Color :
Orange and Black
Size :
145mm*73mm *30mm
Product Name :
Digital Multimeter
Model No. :
VICTOR 81B
Product Packing :
Color box
Packing Details :
60pcs/Carton; Carton Size:47*32.5*35
Display :
LCD Display with Backlight, 1999 (3 1/2digit)
Material :
Plastic, metal, silica gel
Description

Small Type VICTOR Digital Multimeter Resistance Capacitance Frequency Temperature

VICTOR 81B Auto Range Digital Multimeter 1999 Counts Large Lcd Display Small Type Resistance Capacitance Frequency Temperature


Product Descriptiopn

This is a steady performance, high security 3 1/2 digital multimeter(мультиметр). It uses LCD with 18.9mm high figure to make the reading clear.The digital multimeter has the function of measuring ACV, DCV, ACA, DCA, Resistance, Celsius & Fahrenheit Temperature, Diode, Continuity. The instrument also has the features of Unit Symbol Display, Auto/Manual Range Selection, Auto Power Offer and Alarm Function. It adopts the directly driven 8 digits microprocessor and dual-integral A/D converter, which provide the high resolution, high accuracy displaying driver. Because of its outstanding functions, the instrument is an excellent tool and most suitable for lab, factory, maintenance and repair users.

Packing Details

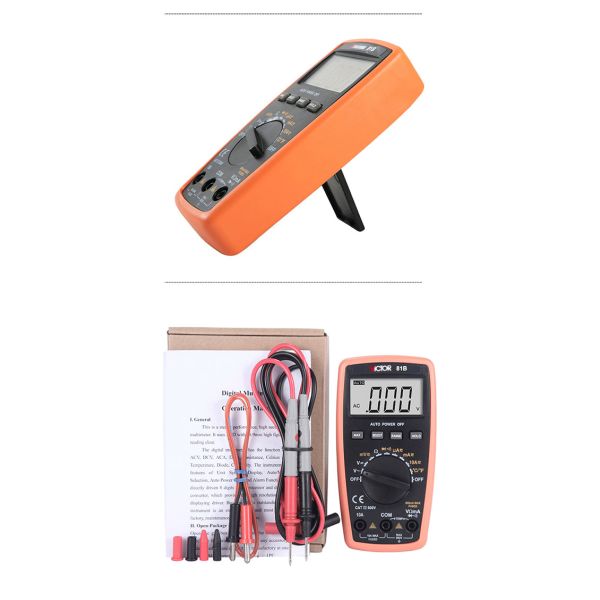

Open the gift box and take out the instrument, carefully check the following accessories. If any accessory is missed or damaged, please contact the manufactory at once.

● Digital Multimeter 1PC

● Operation Manual 1PC

● Test Leads 1SET

● Temperature Probe(K Type Thermocouple) 1PC

● AAA(1.5V)7# Battery 2PCS

● Holster 1PC

General Property

1-1．Display:LCD

1-2．Max Display:1999(3 1/2)counts automatic polarity display and unit display

1-3．Measuring Method:Dual integral A/D converter

1-4．Sampling Rage:Approx. 3 times / sec.

1-5．Over range Indication:Display“OL”

1-6．Low Battery Indication

1-7．Operation Environment:(0～40)℃,Relative Humidity: ＜80% ；

1-8．Storage Environment:(0～50)℃,Relative Humidity: ＜80% ；

1-9．Power:2pcs 1.5V batteries(“AAA”7# battery)；

1-10．Dimension(size):145×74×36mm

1-11．Weight:Approx. 185g(Including 2pcs 1.5Vbatteries)

1-12．Accessories:1pc operation manual,Holster,1pc gift box,1 set 10A lest leads,1pc K Type Temperature Probe TP01 and 2pcs 1.5 batteries.

Technica Data

Basic Function Range Basic accuracy
DC Voltage 200mV/2V/20V/200V/600V ±(0.5%+4)

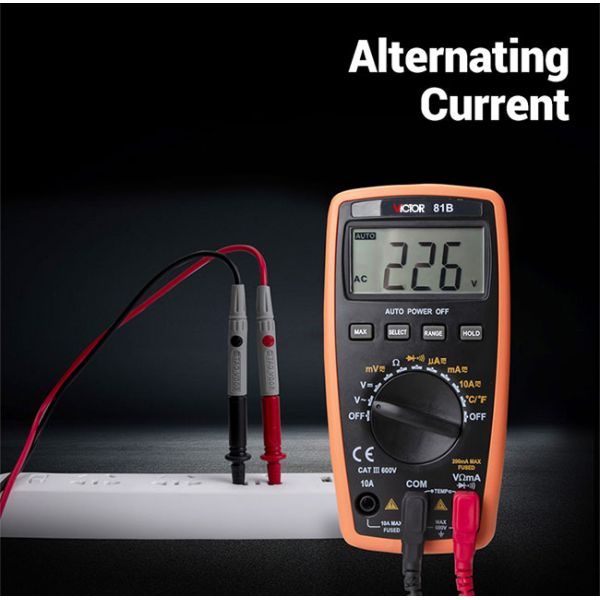

AC Voltage 200mV/2V/20V/200V/600V ±(0.8%+6)
DC Current 200uA/2000uA/20mA/200mA/10A ±(1.0%+10)
AC Current 200uA/2000uA/20mA/200mA/10A ±(1.5%+10)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+4)
Celsius (-20-1000)℃ ±(1.0%+5)
Fahrenheit (0-1832)℉ ±(1.0%+5)
Special Function VICTOR 81B
Diode test & Continuity buzzer √
Low battery indication √

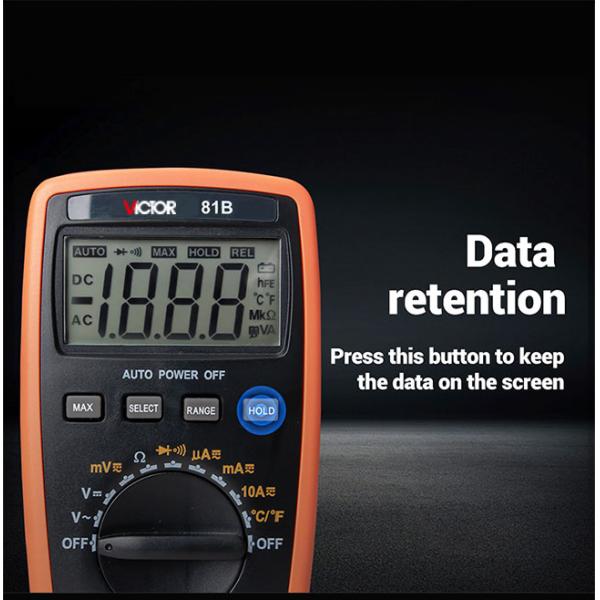

Data hold √

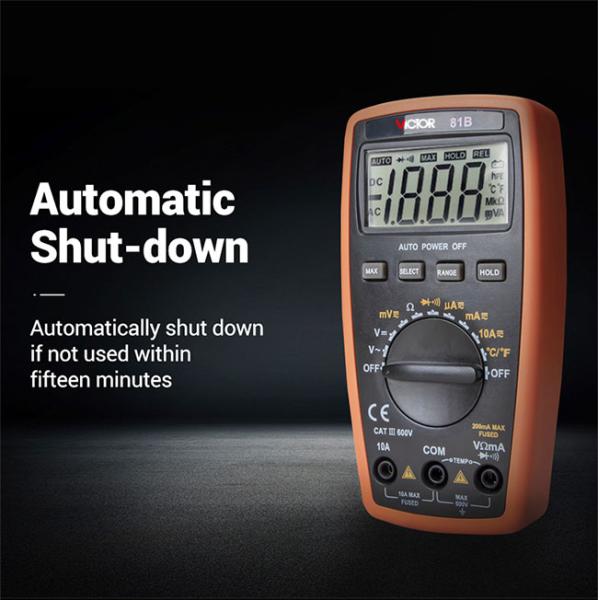

Auto power off √
Function protection √
10A fuse √

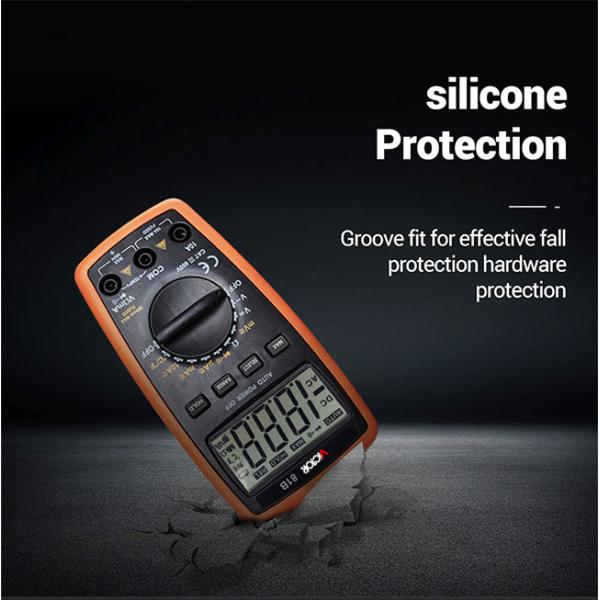

Shockproof protection √
self-resume fuse protection for mA √
Unit symbol display √
Max. value measurement √
Input impedance 10MΩ
Sampling rate 3 times/s
AC Frequency response (50-200)Hz
Operation way Auto/Manual range
Max. Display 3 1/2 (1999)
LCD size 57×33mm
Battery 3V(1.5×2)
General Characters
Product color Case: black; Holster color:orange
Product Net Weight Approx: 200g(including battery)
Product Dimension 145×80×30mm
Standard Accessories Test leads,battery,instruction manual,TP01 K style temperature probe,
Standard inner packing Color box
Standard Quantity Per Carton 60Pcs
Carton size 470×325×35mm
Standard Gross Weight Approx:20kg
