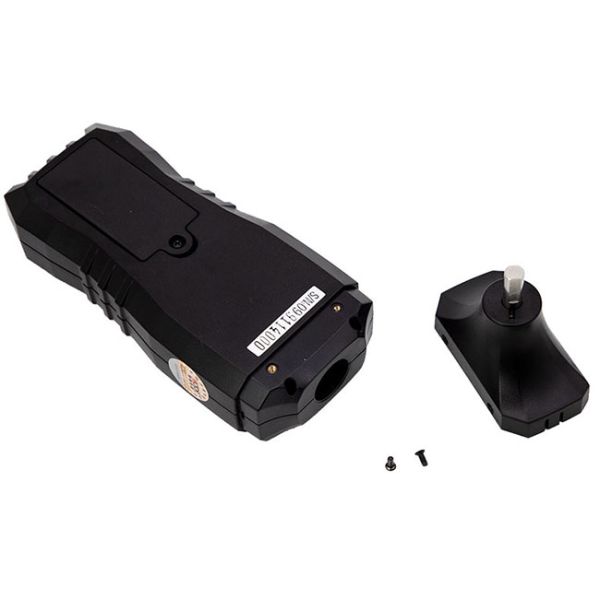

VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Multifunction Environment Meters
Specifications
Brand Name :
VICTOR
Model Number :
VICTOR 6236P
Certification :
CE
Place of Origin :
CHINA
MOQ :
100pcs
Price :
100pcs: USD13.5/pc; 100pcs to 500pcs: USD12.8/pc; 500pcs to 1000pcs: USD12.2pc; Above 3000pcs: USD11.6/pc
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
3000pcs available
Delivery Time :
5 to 30 days
Packaging Details :
Color box packing; 40pcs/Carton; Carton Size: 46*29*52cm ;13KG/Carton
Color :
Orange and Black
Size :
157×64×31mm
Product Name :
Digital Tachometer
Model No. :
VICTOR 6236P
Display :
5 digits, LCD display
Material :
Plastic, metal, silica gel
Description

VICTOR 6236P Multifunction Environment Meters

VICTOR 6236P Digital Tachometer High Precision Tachometer Motorcycle 2 In 1 Contact And Non-Contact Tacometro Rpm For Chainsaws

Description

Characteristics

  • Beautiful and elegant appearance design, convenient and comfortable to use;
  • Wide measurement range, and high resolution;
  • Single-chip microcomputer technology, photoelectric technology and anti-interference technology used, to accurately measure the rotation speed;
  • Super large-size LCD, with clear reading;
  • Automatically memorizing the measured maximum, minimum and the last displayed values;
  • Low power indication when the battery voltage is lower than the specified value;
  • Automatic off: Automatic off in about 15min when no key is operated.

Specifications

Function
Photoelectric type △
Contact type △
Contact line speed (metric system) △

Contact line speed

(British system)

Display: 5-digit 16mm LCD

Accuracy: ± (0. 05%+5)

Range selection: Automatic range

Effective distance: 50mm-500mm

Dimension: 157mm*64mm*31mm

Power supply: 1*9V 6F22 batteries

Power consumption: Less than 40mA

Weight: About 200g (including batteries)

Measurement range:

10-99999 rpm for photoelectric rotation speed

1.0-19999 rpm for contact rotation speed

1.00-1999.9 m/min for contact line speed

Resolution:

Photoelectric rotation speed: 0.1rpm (2.5-999.99rpm)

1rpm (above 1000rpm)

Contact rotation speed: 0.1rpm (0.5-999.99rpm)

1rpm (above 1000rpm)

Contact line speed: 0.01m/min (0.05-99.999m/min)

0.1m/min (above 100m/min)

Model 6236P
Specification
Type Laser + Contact Type
Display 5 digits, LCD display
Range Laser 2.5~99999RPM
Surface Speed (m/min):1.0~1999.9RPM
Contact 1.0~19999RPM
Resolution RPM 0.1RPM
Surface Speed (m/min):0.01m/min
Accuracy ±0.05%+1
Time Base 4MHz quartz crystal
Features
Display 5 digits, LCD display
Max. Display 40000
Low battery indication √
Data Store √
Auto Range √
Auto Power off √
Max /Min Value √
General Information
Power Supply 4×1.5V AAA(Not Include)
Product Size 157×65×30mm
Product Weight Approx:200g
Standard Accessories Manual, Battery(Not,include) Reflective tape; Contact wheel; Touch tips
