Specifications
Brand Name :
VICTOR
Model Number :
VICTOR 5001
Certification :
CE
Place of Origin :
CHINA
MOQ :
500pcs
Supply Ability :
10000PCS

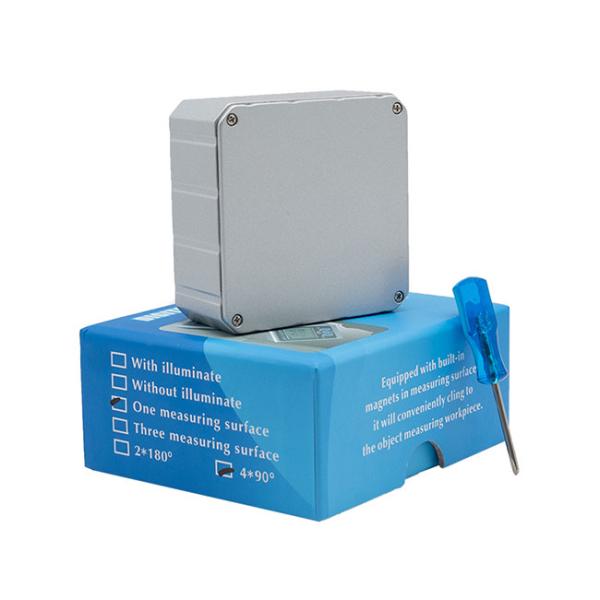

Packaging Details :
Color box ,100pcs/Carton ,27KG/Carton
Price :
USD13/pc
Payment Terms :
T/T, Western Union, L/C, Paypal
Delivery Time :
5 to 30 days
Color :
Silver and orange
Product Size :
57*57*30.5mm
Carton Size :
47.5*34*23.5cm
Packing :

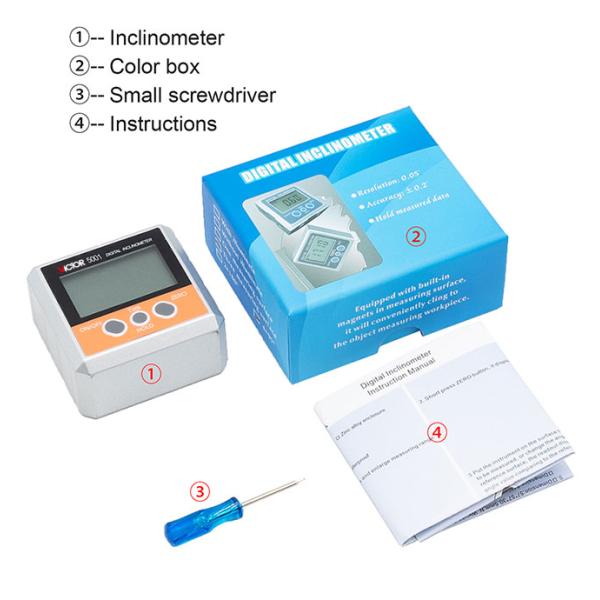

color box
Weight :
Approx 200g
Power :
1.5V AAA *2
Description

Relative Absolute Magnetic Digital Inclinometer 4*90° Magnets In Bottom Pocket Type

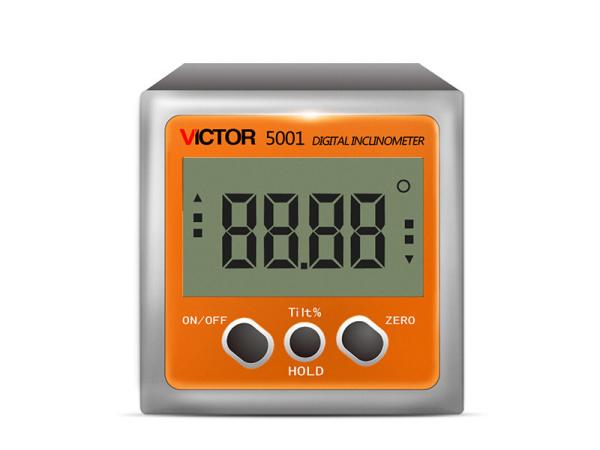

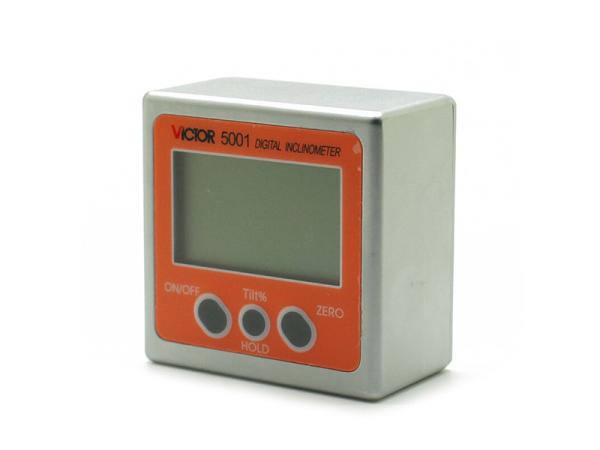

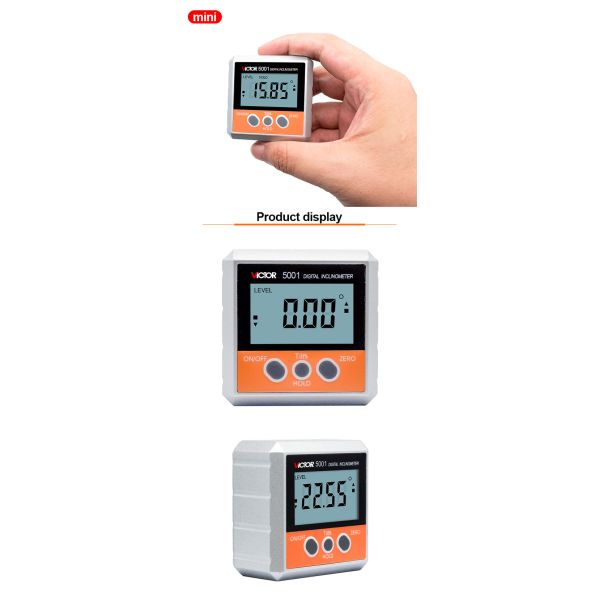

VICTOR 5001 Digital lnclinometer 4*90° Magnets in bottom pocket type

Mode 5001

Technical Parameters

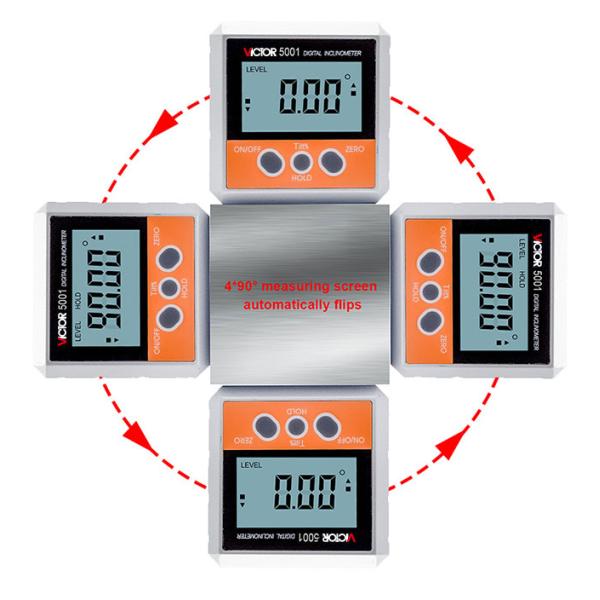

1. Measuring range: 4*90°

2. Resolution: 0.05°

3. Accuracy: ±0.2°

4. Repeatability: 0.1°

5. Battery: AAA×2 battery

6. Working temperature: 0℃~40℃

7. Convenient to be attached to the object Measuring workpiece

8. Absolute zero measurement based on the level surface

9. Dimension: 57*57*30.5mm; N.Weight: 200g

Technical data
Model 5001
Specification
Measuring range 4* 90°
Resolution 0.05°
Accuracy +0.2°
Repeatability 0.1°

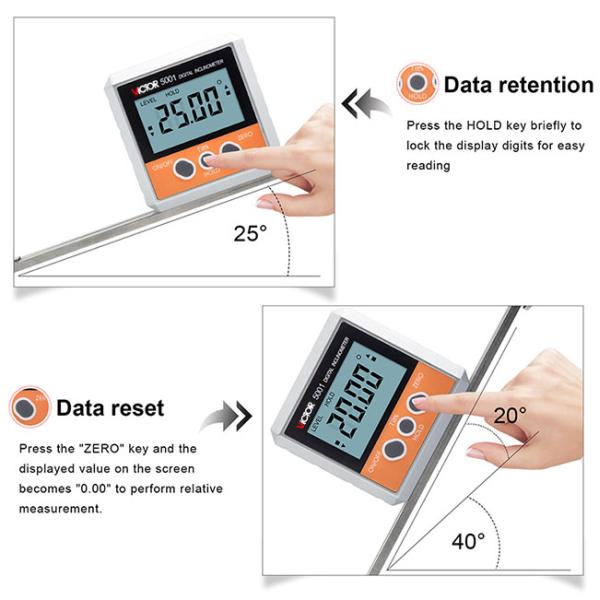

Unit conversion √
Data retention √

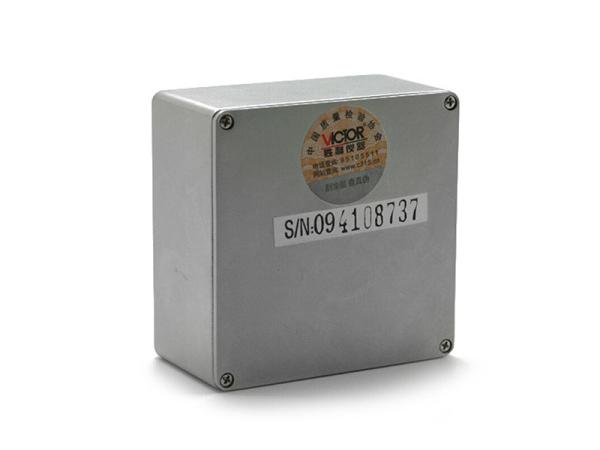

Magnetic contact surface bottom
Working temperature 0~40°C
Automatic shut-down 5min
Zero setting √
Standard test √
Inclination test √

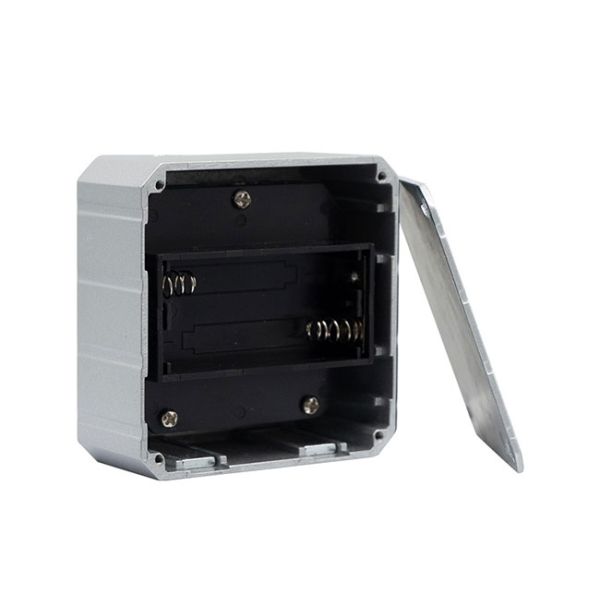

Battery AAA*2 battery

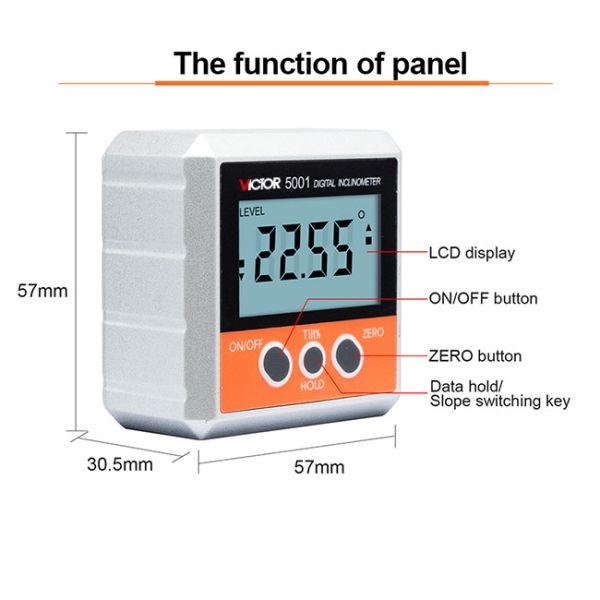

Product size 57 * 57 * 30.5mm
Product weight 200g

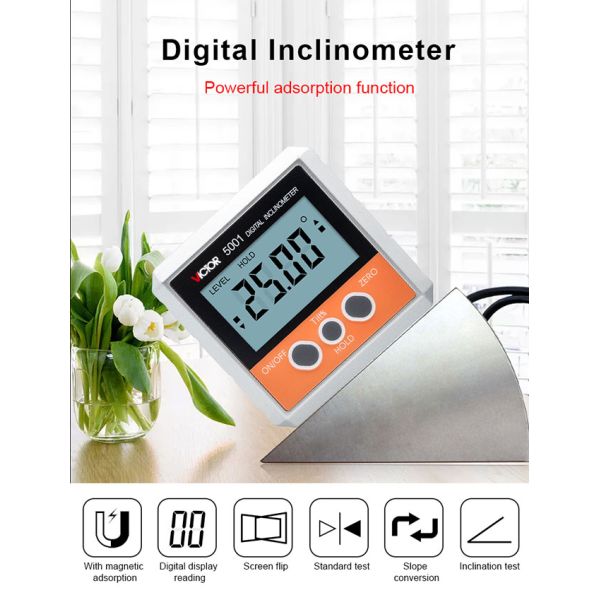

General characteristics

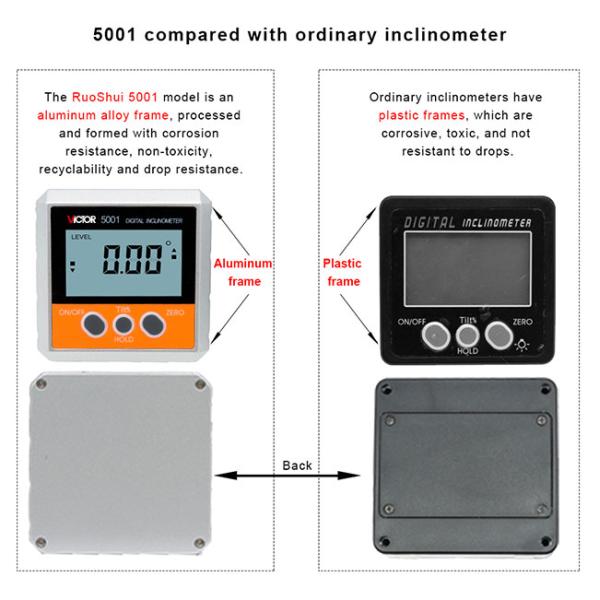

●Aluminum alloy enclosure
●Relative/Absolute measurment interchange at any postion
●Absolute zero measurement based on the level surface
