20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter
Specifications
Brand Name :
VICTOR
Model Number :
VICTOR 1700
Certification :
CE
Place of Origin :
CHINA
MOQ :
1pcs
Price :
USD480/pc
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
10000PCS
Delivery Time :
5 to 30 days
Packaging Details :
Color box ,1pcs/Carton ,13.5KG/Carton
Color :
Black and Orange
Packing :
color box
Weight :
Approx 496g
Display Mode :
3.5-inch true color LCD display
Dimension :
310mm×270mm×52mm
Nuclear Phase Distance :
About 160m
Current Range :
0-20000A
Product Name :
Wireless High Voltage Nuclear Phase Ammeter
Description

20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter

VICTOR 1700 Current Detector Wireless High-Low Voltage Nuclear Phase Ammeter Electricity Leakage Patrol Of Multi-Conductor Cable

Brief Introduction

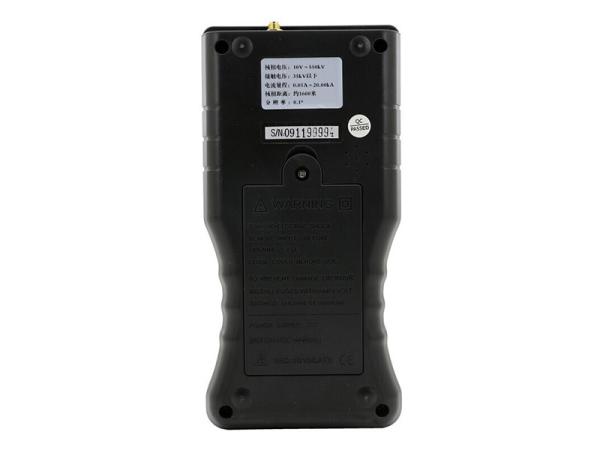

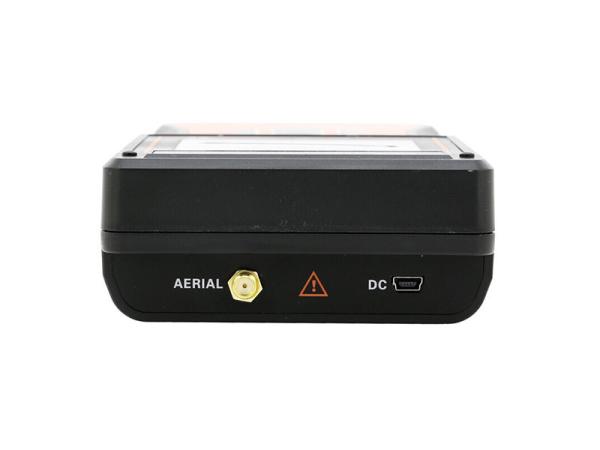

1700 Wireless High Voltage Nuclear Phase Ammeter checking instrument, also known as smart wireless high voltage voice phase checking instrument, wireless high voltage phase checking instrument, referred to as phase checking instrument or phase checking meter, contains wireless receiver, XY detector, retractable insulated rod and other components. The receiver contains a 3.5-inch true color LCD screen, which

can show the phase checking results, phase, frequency, and vector diagram instructions at the same time, which makes it clear and intuitive.

The phase checking distance on the open ground is up to 1600m far, full intelligent phase checking of the voltage line covers the voltage of 10V

~ 550kV, in which the bare wire voltage of 35kV and below can be directly conducted with contact phase checking, and the bare wire voltage of over 35kV can be directly conducted with non-contact phase checking. Noncontact phase checking is to make the detector closer to the wire under test, and when the electric signal is inducted, the phase checking will be completed. This method avoids direct contact with the high voltage wire, so it is safer! The phase checking instrument can also function as high-voltage electroscope, high-pressure phase meter and high-pressure phase sequence meter, which can be used for testing electricity, phase sequence test, transformer group judgment and so on.

Technical Specification

VICTOR 1700
Function phase checking of wireless high-low voltage, current, leakage current, frequency, phase, phase sequence and electricity verification tested; electricity leakage patrol of multi-conductor cable
Power Supply DC 3.7V chargeable lithium battery, USB charging portal, working continuously for 10h
Transmission Method 315MHz 433MHz wireless transmission
Nuclear Phase Distance 150m
Display Mode 3.5-inch true color LCD display
Tested Line Diameter Ф168mm Conductor, or 168mm×245mm bus bar
Range Phase: 0.0°～360.0°; Phase checking voltage level: AC 10V～550kV; Frequency: 45Hz～75Hz; current: 0~20000A
Resolution 0.1°; 0.1Hz; 10mA
Accuracy phase: ≤±10° ; frequency: ≤±2Hz; current: 0~6000A, ±3%±5dgt; 6000A~2000A, ±4%±5dgt
Phase Judge In phase:-30°～30°; out of phase: 90°～150° and 210°～270°
Voice Function Voice such as in phase, out of phase, X signal normal, Y signal normal, etc.
Size of Insulation Rod About 5m long after extended; about 1m long after drawn back (5 nodes)
Phase Checking Method Contact phase checking: When the bare wire voltage is less than 35kV, or less than 110kV with a safety insulation sheath wire, adopt contact phase checking. (operating with an insulation rod)
Noncontact phase checking: When the bare wire voltage is more than 35kV, or more than 110kV with a safety insulation sheath wire, adopt noncontact phase checking. (operating with an insulation rod)
Automatic Shutdown About 15mins after startup, the instrument will be automatically shut down to reduce battery consumption
Rated Current Detector: 35mA max; Receiver: 300mA max
Instrument Mass Detector: 496g (including battery) Receiver: 395g (including battery)
Insulation rod: 1.45kg Total mass: 13.5kg (including box)
Working Humidity And Temperature -10℃～40℃; below 80%Rh
Storage Humidity And Temperature -10℃～60℃; below 70%Rh
