Specifications
Brand Name :
VICTOR
Model Number :
VICTOR 3015A/3015B/3015C
Certification :
CE
Place of Origin :
CHINA
MOQ :
50pcs
Price :
3015A: USD20/pc; 3015B: USD23/pc;3015C: USD30/pc
Payment Terms :
T/T, Western Union, L/C, Paypal
Delivery Time :
5 to 30 days
Packaging Details :
Color box, carton size:63.5*32*55cm, 29.8kg/carton
Product Color :
Orange
Product Name :
Battery Tester
Power :
6V 12V
Packing :
Color Box
Max Voltage :
DC 19.99V
Battery Inner Resistance :
1-99.99mΩ
Description

UPS Multifunction Environment Meters 12v Battery Tester For Electric Vehicles

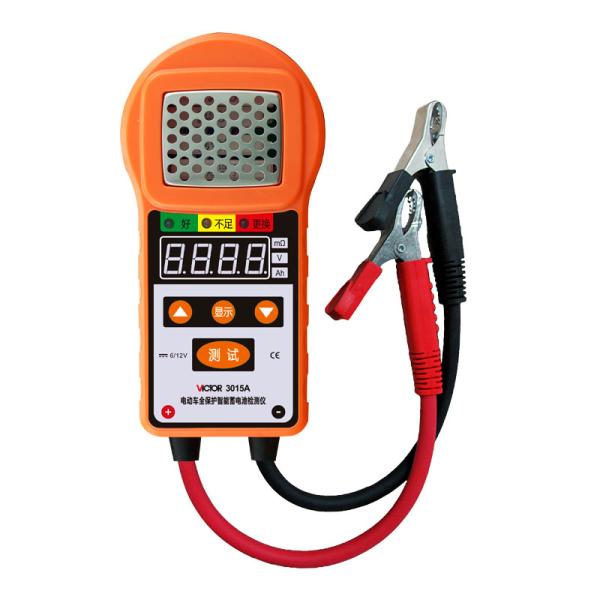

VICTOR 3015A/3015B/3015C Battery Tester For Electric Vehicles UPS Batteries Solar Energy Battery System Analyzer

Products Introduction

The instrument can quickly, simply, accurately and reliably judge the no-load energy, the on-load condition, the internal resistance of

the battery and the charging system conditions of 6V and 12V lead- acid accumulator. The instrument, provided with 32-bit high-end micro
control unit for computation operation, can automatically judge the batteries with different voltages (6V or 12V) at the same time and the
charging state thereof. Moreover, the instrument is internally provided with reverse polarity protection, over voltage input protection, poor
contact prompt and over-temperature prompt. Therefore, the test can be smoothly, simply and conveniently carried out.
The on-load test method recommended by the international battery association is adopted for the instrument. Specifically, the
corresponding mode is selected and set in advance according to the rated capacity of the accumulator tested thereby, and the short-time
heavy load discharge of the battery is controlled to detect the discharge conditions of the batteries at the same time, and three LED
indicator lights are adopted to simply and conveniently display the test result. The test process of the instrument and the data result judgment
are processed by the internal arithmetic unit. Additionally, the test result can be reviewed.
The instrument shell is made of solid ABS engineering materials, and the load heating simulation part is up and down installed with
stainless steel porous plate, and the fan is configured to strengthen heat dissipation in order to make the test process more stable and
more reliable. The test line part is composed of thick pure copper test wire, and is also configured with four-wire Kelvin test clamp for
connection. The test sampling data are directly sampled from the outgoing terminal of the battery in order to really recover the battery
working condition in the battery working process and make the test result more accurate.
Excellent materials, reliable process and design, advanced circuit control, good workmanship and quality control system can ensure the
high quality, accuracy and reliability of the instrument.
Specification and Parameters
1. The instrument is applicable to common 6V and 12V lead-acid accumulators.
2. Load test current: about 20A.
3. Accumulator capacity detection range: 5Ah ~ 80Ah.
4. Maximum voltage: DC 19.99V.
5. Internal resistance range of battery: 1.00milliohm ~ 99.99 milliohm.
6. LED status indication: Battery condition: “Green” (Sufficient Capacity), “Yellow” (Insufficient Capacity), “Red” (Replace Battery);
Charging system: “Green” (Normal Charging), “Yellow” (Abnormal Charging).
7. Accumulator capacity presetting: continuously adjustable in the range of 5-80Ah, with 5Ah increment.
8. Test time: less than 10s; test time interval: it is suggested as about 5min.
9. Poor contact prompt for test clamp; reverse clamp connection protection; input over voltage protection.
10. Using condition: -10℃ 55 relative humidity: lower than 80%.
11. Product dimension: about 9.5*5.0*19cm; dead weight: about 860g.
◆ Indication Diagram for Instrument
Technical Data
3015A 3015B 3015C
6/12V batteries, ≤20A discharge, 5~80AH test range 6/12V batt eries, ≤80A discharge, 40~200AH test range 6/12V batteries, ≤80A discharge, 40~200AH test range
The internal resistance of battery will be tested synchronously The internal resistance of battery will be tested synchronously The internal resistance of battery will be tested synchronously
Micro-computer strictly control the discharge time, to reduce the battery damage Micro-computer strictly control the discharge time, to reduce the battery damage Micro-computer strictly control the discharge time, to reduce the battery damage
Over-temperature, anti-burning and reverse polarity protection Over-temperature, anti-burning and reverse polarity protection Over-temperature, anti-burning and reverse polarity protection
The meter will make a judgement automatically since the test finished; sound and light indicate The meter will make a judgement automatically since the test finished; sound and light indicate The meter will make a judgement automatically since the test finished; sound and light indicate
Tested reading hold automatically Tested reading hold automatically Tested reading hold automatically
Clear and direct-viewing display with four digits Clear and direct-viewing display with four digits
Discharge time: less than 10s Discharge time: less than 10s Discharge time: less than 10s (for dynamic batteries measuring)
Battery amp hour rating testing range
: 5-80AH		 Battery amp hour rating testing range
: 40~200AH		 Battery amp hour rating testing range
: 40~200AH
Internal resistance range of battery: 0~99mΩ Internal resistance range of battery: 0~99mΩ Internal resistance range of battery: 0~99mΩ
Usable scope: applicable to the dynamical type battery such as the batteries supply for electric bicycle, UPS batteries, solar storage energy batteries Usable scope: applicable to the dynamical type battery such as the batteries supply for electric bicycle, UPS batteries, solar storage energy batteries Usable scope: starter battery (car battery)
Dynamic accumulator: applicable to the dynamical type battery such as the batteries supply for electric bicycle, UPS batteries, solar storage energy batteries
Starter battery range:
CCA: 100~1700 IEC: 100~1000 EN:100~1700 DIN: 100~1000
This is a battery tester which contains both testing method of dynamical battery and starter battery
