Specifications
Brand Name :
VICTOR
Model Number :
VICTOR 610B+/ 610C+
Certification :
CE
Place of Origin :
CHINA
MOQ :
300
Price :
VICTOR610B+ USD18/pc VICTOR610C+ USD9.2/pc
Payment Terms :
T/T, Western Union, L/C,Paypal
Supply Ability :
10000 pc available
Delivery Time :
5-30 days
Packaging Details :
Color box ,30pcs/Carton ,14.5KG/Carton
Color :
Black and orange
Weight :
Approx 313g
Name :
1000V/1000A clamp on multimeter
Display :
5999 Counts
Operation way :
Auto range
Product size :
230×75×40mm
Battery :
1.5V*2
NCV :
yes
Description

VICTOR 610B+ 610C+ 1000V 1000A Digital Clamp Meter 5999 counts VFC True RMS NCV Live Flashlight clamp multimeter

SUMMARIZE

This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as DCV, ACV, ACA and DCA, Resistance, Continuity Buzzer, Diode, Frequency etc.

GENERAL FEATURE

Displaying:Max. displaying:5999,

Sampling rate: approx. 3 times/second.

Polarity indication:Automatic negative polarity indication

Over range indication:” OL” shown on the LCD

Low battery indication:“ ” appears

Operation environment:0℃～40℃,R.H.< 75%.

Storage environment:-10℃～50℃,R.H.<80%.

Power supply:(Size AAA battery)1.5V×2

Size:230×75×40mm

Weight:about 313g.

Accessories:user’s manual,battery, probes.

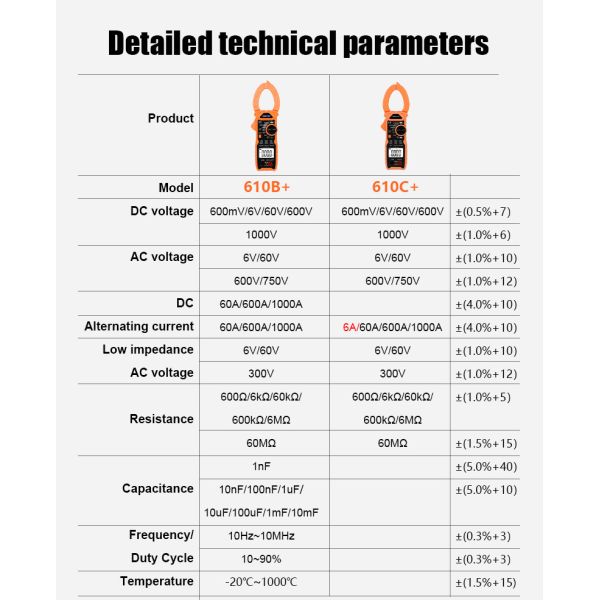

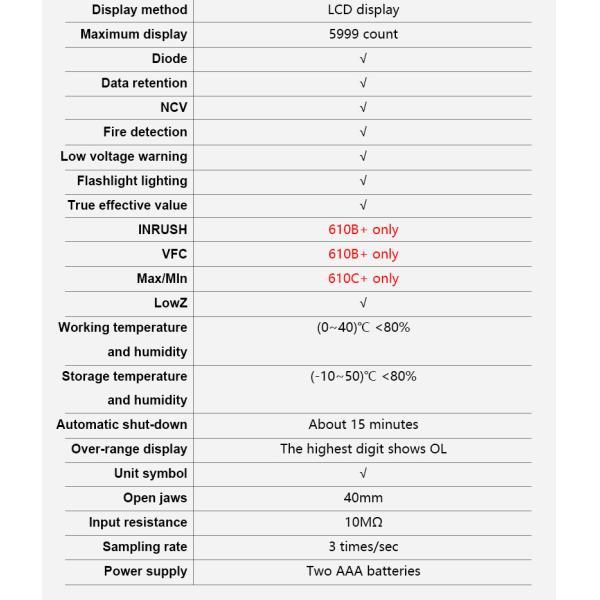

Technical Data

Model 610B+ 610C+
DCV 600mV/6V/60V/600V ±(0.5%+7) 600mV/6V/60V/600V ±(0.5%+7)
1000V ±(1.0%+6) 1000V ±(1.0%+10)
ACV 6V/60V ±(1.0%+10) 6V/60V ±(1.0%+10)
600V/750V ±(1.0%+12) 600V/750V ±(1.0%+12)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(1.0%+5) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(1.0%+5)
20MΩ ±(1.5%+15) 20MΩ ±(1.5%+15)
60MΩ ±(2.5%+20) 60MΩ ±(2.5%+20)

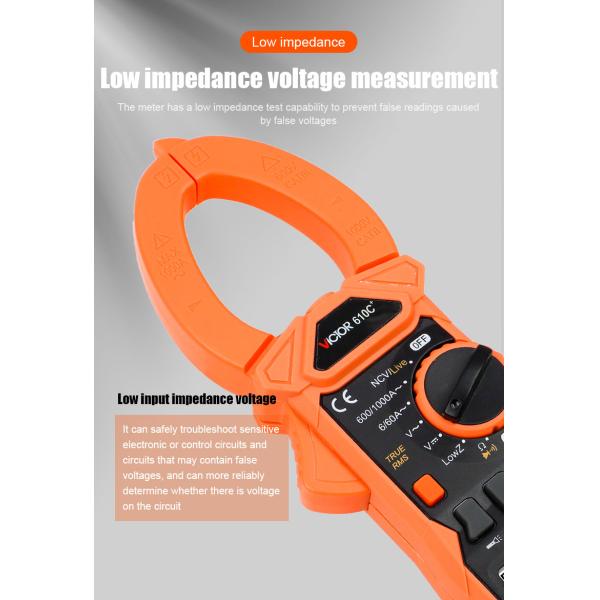

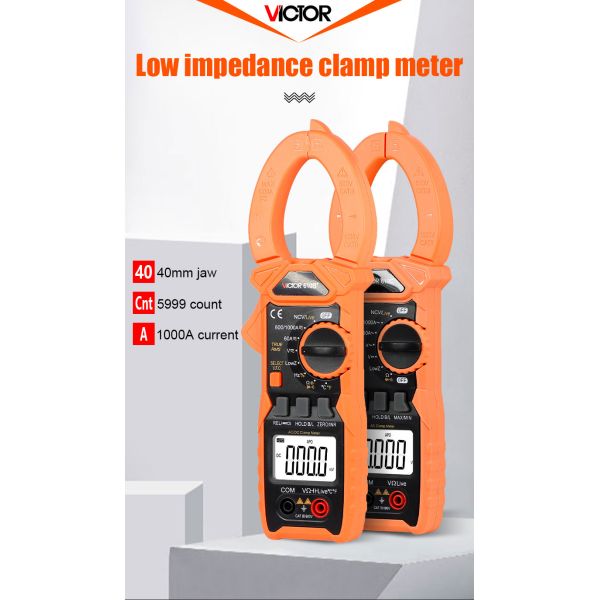

Low Impedance 6V/60V ±(1.0%+10) 6V/60V ±(1.0%+10)
300V ±(1.0%+12) 300V ±(1.0%+12)
DCA 60A/600A/1000A ±(4.0%+10) / /

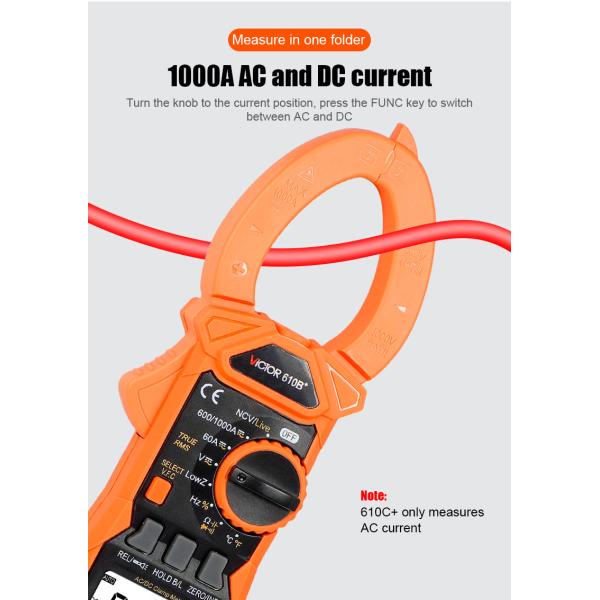

ACA 60A/600A/1000A ±(4.0%+10) 6A/60A/600A/1000A ±(4.0%+10)
Frequency 10Hz~10MHz ±(0.3%+3) / /
Capacitance 1nF ±(5.0%+40) / /
10nF/100nF/1uF/10uF/100uF/1mF/10mF ±(5.0%+10) / /
Temperature -20℃~1000℃ (-4-1832)℉ ±(2.0%+5) / /
Continuity alarm √ √
Data hold √ √
Low voltage display √ √
Auto power off √ √
Max/Min √

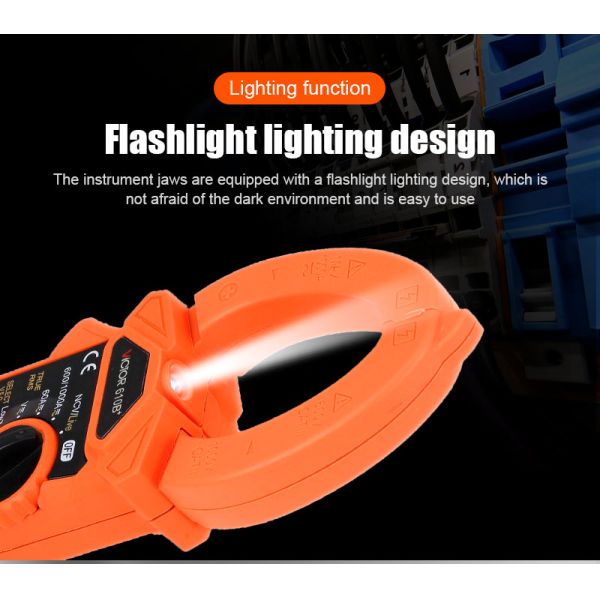

Flashlight √ √
Overload Protection √ √

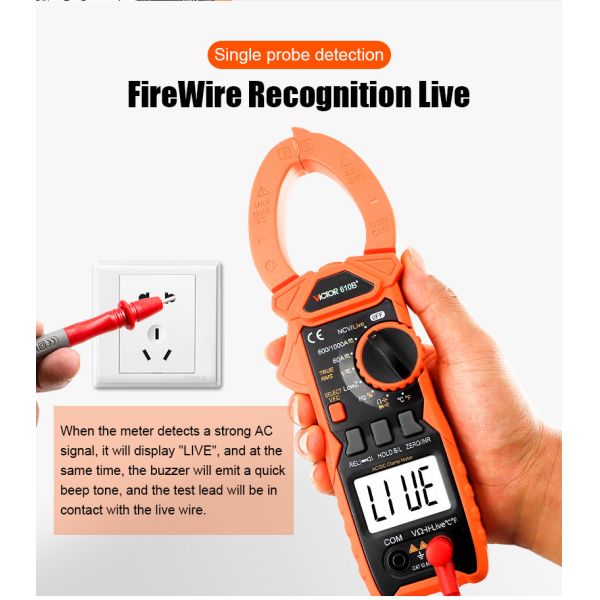

Living Wire Detecting √ √

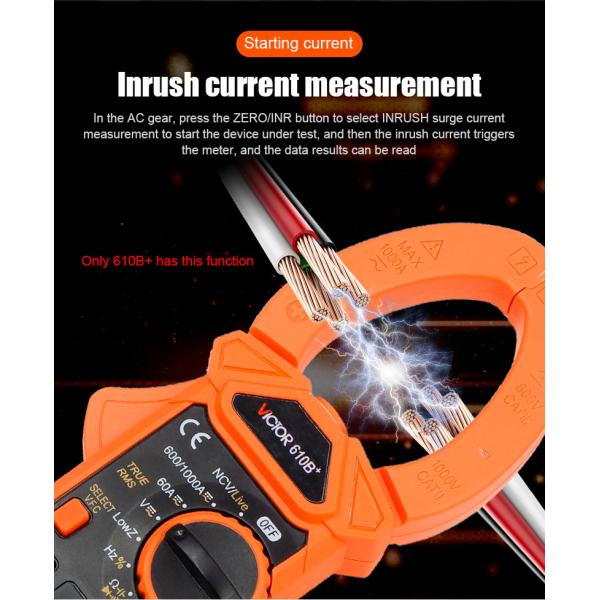

INRUSH √

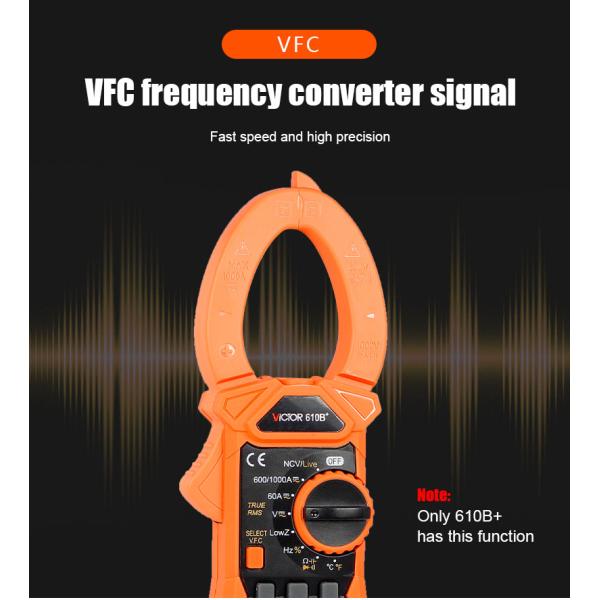

VFC √

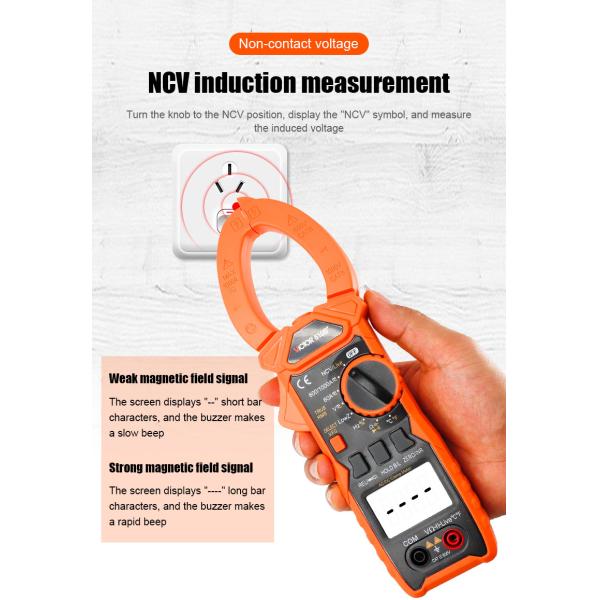

NCV √ √
True RMS √ √
Auto power off about 15 minutes about 15 minutes

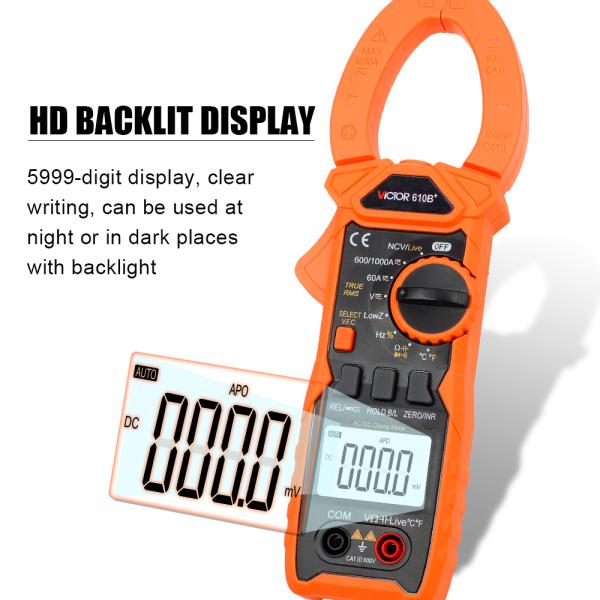

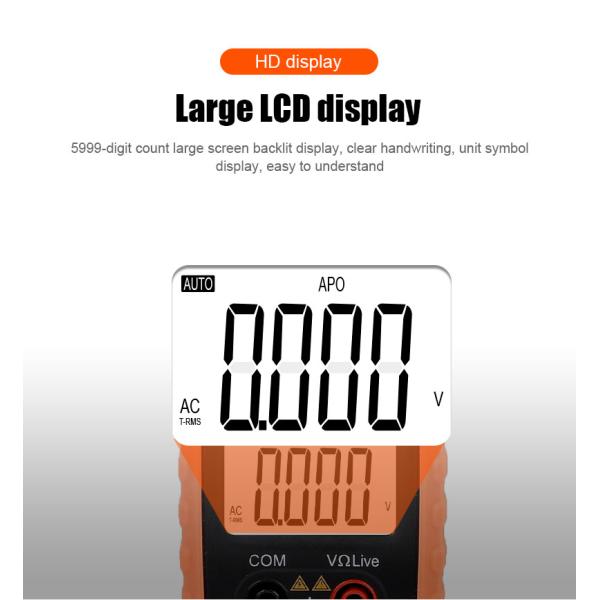

Display LCD Display, Max. display 5999, update 3 times/s LCD Display, Max. display 5999, update 3 times/s

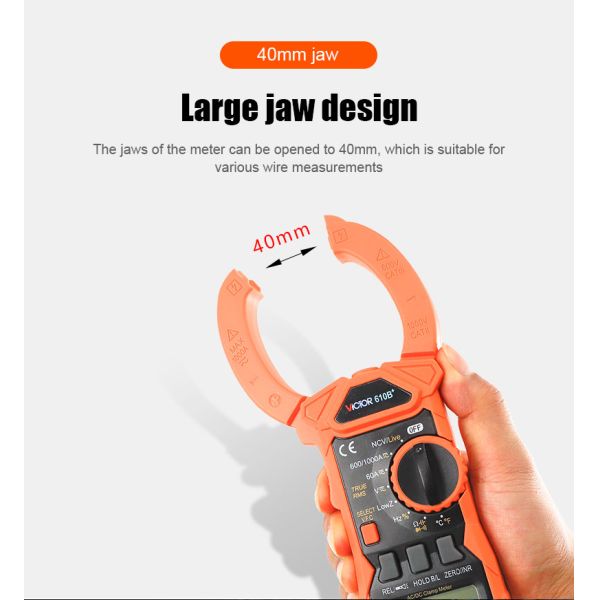

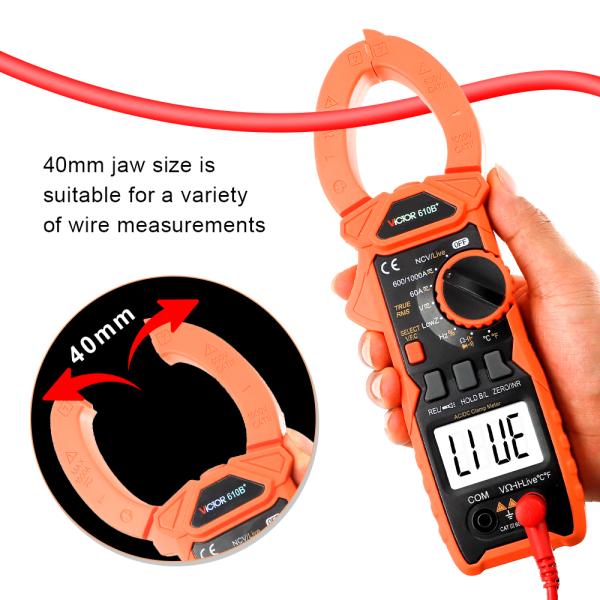

Jaw opening 40mm 40mm
Polarity indicate Cathode auto display Cathode auto display
Overload indicate OL indicating on the LCD OL indicating on the LCD
Low battery display indicating on the LCD indicating on the LCD
Operation temperature 0℃~40℃, less than 80%RH 0℃~40℃, less than 80%RH
Storage temperature -10℃~50℃, less than 80%RH -10℃~50℃, less than 80%RH
Battery type (Size AAA) 1.5V×2 (Size AAA) 1.5V×2
Size 230*75*40mm 230*75*40mm
Weight About 313g About 313g
