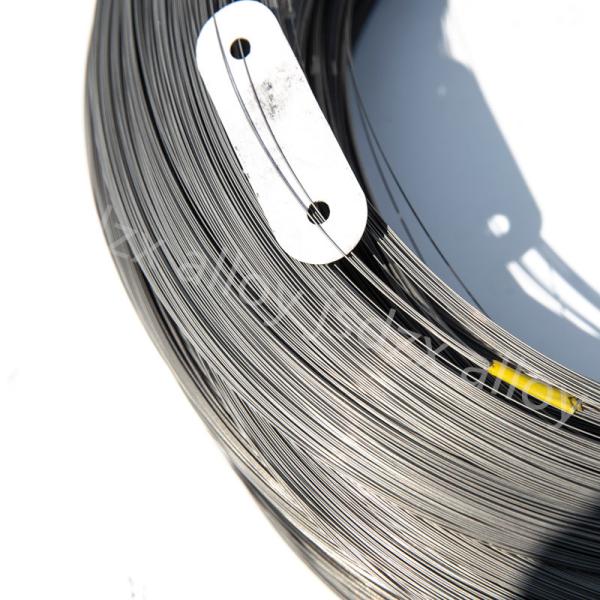

Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
Specifications
Brand Name :
Victory
Model Number :
CuNi23、CuNi30、CuNi34、6J8、6J11
Place of Origin :
China
MOQ :
5
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
5-21 days
Packaging Details :
Spool package with Carton box, Coil package with polybag
Certification :
CE,ROHS,ISO 9001
Product Name :
CuNi Wire
Cu (Min) :
55%
Ultimate Strength (≥ MPa) :
420
Elongation (≥ %) :
35
Application :
Air Condition Or Refrigerator
Size :
customize
Resistivity :
0.5
Density :
8.9g/cm3
Technology :
Rolling and Drawing
Description

CuNi19 resistance alloy, which is a type of copper nickel binary alloy that has a low temperature coefficient of resistance. This means that its electrical resistance does not change significantly with changes in temperature, making it ideal for use in low voltage electrical components such as rheostats, shunts, and controllers.

Furthermore, the alloy has a maximum operating temperature of 300°C, which makes it suitable for use in applications that require high temperatures. It also has a good heat coefficient, which makes it useful in low temperature heating cables for applications such as automobile heating cushions and railway snow melting.

Overall, CuNi19 resistance alloy is a versatile material that is widely used in various electrical and heating applications due to its unique properties.

Properties/ Material
Resistivity (200C μΩ.m)
Max. Working Temperature(C)
Tensile Strength (Mpa)
Melting Point
Density(g/cm3)
NC003(CuNi1)
0.03
200
210
1085
8.9
NC005(CuNi2)
0.05
200
220
1090
8.9
NC010(CuNi6)
0.1
220
250
1095
8.9
NC012(CuNi8)
0.12
250
270
1097
8.9
NC015(CuNi10)
0.15
250
290
1100
8.9
NC020(CuNi14)
0.2
300
310
1115
8.9
NC025(CuNi19)
0.25
300
340
1135
8.9
NC030(CuNi23)
0.3
300
350
1150
8.9
NC035(CuNi30)
0.35
350
400
1170
8.9
NC040(CuNi34)
0.4
350
400
1180
8.9
NC050(CuNi44)
0.5
400
420
1200
8.9

Shape Size(mm)
Wire 0.08-7.5
Bar 8.0-50
Ribbon (0.05-0.35)*(0.5-6.0)
Strip (0.5-2.5)*(5-180)

Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire Low Resistance Wire Copper Nickel Cuni6 CuNi40 Cuni44 Wire Hot Electric Resistance CuNi Wire
