Specifications
Brand Name :
Victory
Model Number :
Cr20Ni80
Certification :
CE
Place of Origin :
China
MOQ :
5
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
7-20 days
Packaging Details :
Spool package with Carton box, Coil package with polybag for Resistance wire
Material :
Nickel, Chromium
Nickel(Min) :
77%
Resistivity :
1.09+/-0.05
Tensile Strength :
637MPA
Elongtation :
≥20%
Application :
Heating, Resistivity
Condition :
Hard / Soft
Sureface :
Bright, Oxided, Acide
Name :
Resistance wire
Description

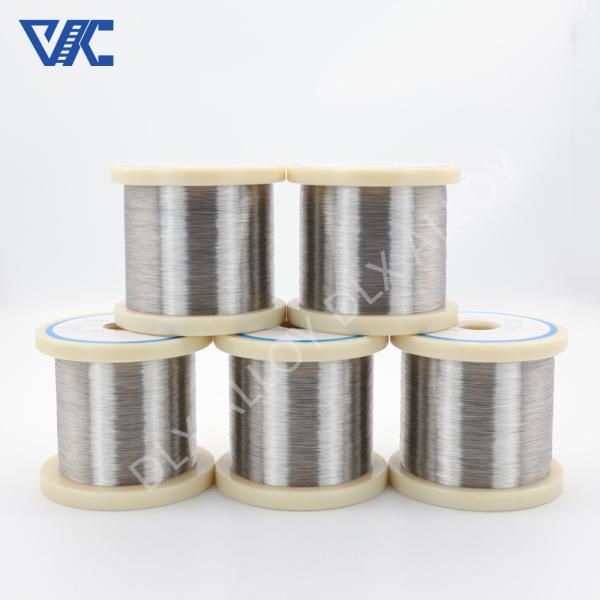

2mm Cr20Ni80 Nickel Chrome Electric Heating Element Flat Resistance Wire

80/20 Ni Cr Resistance Wire is a highly versatile alloy that can be used in a wide range of applications. This alloy is capable of operating at temperatures of up to 1200°C (2200°F), making it an excellent choice for use in heating elements, wire-wound resistors, and other industrial and domestic appliances. Its chemical composition provides excellent oxidation resistance, making it particularly suitable for use in environments where frequent switching or wide temperature fluctuations are common.

Due to its unique properties, 80/20 Ni Cr Resistance Wire is widely used in the aerospace industry, where it is used in a variety of applications. This alloy is also known by several other names, including Nichrome / Nicrhrome V, Brightray C, Cronix 80, Nicrothal 80, Chromalloy, Chromel, and Gilphy 80.

In addition to its excellent resistance to oxidation, 80/20 Ni Cr Resistance Wire is also highly durable and long-lasting. This makes it an ideal choice for use in applications where reliability is critical. Whether you are looking for a heating element for your home or business, or need a wire-wound resistor for an industrial application, 80/20 Ni Cr Resistance Wire is an excellent choice that will provide reliable performance for years to come.

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composición Ni 90 Rest Rest 55.0～61.0 34.0～37.0 30.0～34.0
Cr 10 20.0～23.0 28.0～31.0 15.0～18.0 18.0～21.0 18.0～21.0
Fe － ≤1.0 ≤1.0 Rest Rest Rest
Temperatura máxima℃ 1300 1200 1250 1150 1100 1100
Punto de fusion ℃ 1400 1400 1380 1390 1390 1390
Densidad g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistividad μΩ·m,20℃ 0.76±0.05 1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
Alargamiento a la ruptura ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Calor especifico J/g.℃ － 0.44 0.461 0.494 0.5 0.5
Conductividad térmica KJ/m.h℃ － 60.3 45.2 45.2 43.8 43.8
Coeficiente de expansión de líneas a×10-6/(20～1000℃) － 18 17 17 19 19
Estructura micrográfica － Austenite Austenite Austenite Austenite Austenite
Propiedades magnéticas － Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic

Form Specification
Wire Diameter=0.025mm~8mm
Flat wire Width=0.40~6.0mm Thick=0.03~0.50mm
Strip width=8~250mm Thick=0.05~3.0mm
Bar Diameter=8~100mm Long=50~1000
