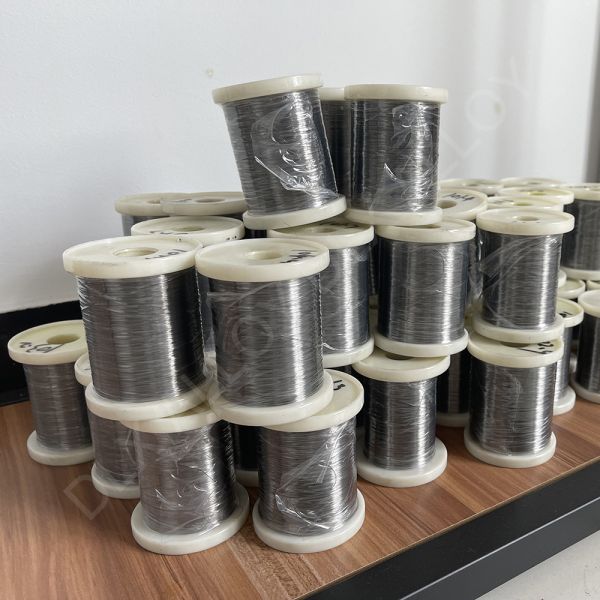

Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
Specifications
Brand Name :
Victory
Model Number :
Cr20Ni80
Certification :
CE
Place of Origin :
China
MOQ :
5
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
7-20 days
Packaging Details :
Spool package with Carton box, Coil package with polybag for Resistance wire
Material :
Nickel, Chromium
Nickel(Min) :
77%
Resistivity :
1.09+/-0.05
Tensile Strength :
637MPA
Elongtation :
≥20%
Application :
Heating, Resistivity
Condition :
Hard / Soft
Sureface :
Bright, Oxided, Acide
Name :
Resistance wire
Description

NiCr Series

Nichrome wire is a type of alloy that is composed primarily of nickel, chromium, and iron. One of the key properties of nichrome wire is its high resistivity, which means that it is able to resist the flow of electrical current. Another important feature of nichrome wire is its good oxidation resistance, which allows it to withstand high temperatures and prevents it from corroding over time.

In addition to its high resistivity and good oxidation resistance, nichrome wire also has excellent ductility after use and weldability. This means that it can be easily shaped and formed into various shapes and sizes, and can be easily welded together to form larger structures.

Given these properties, nichrome wire is widely used in a variety of applications. It is commonly used to manufacture heating elements for laboratory and industrial electric furnaces, as well as various electrical devices that require thermal action, such as heat guns and industrial hair dryers. Nichrome wire is also used in water heating systems, high-value electrical resistors, heating cords, and cables.

Overall, nichrome wire is a versatile and reliable material that is essential in many industries. Its unique combination of properties makes it an ideal choice for applications that require high-temperature resistance, electrical resistance, and ductility.

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composición Ni 90 Rest Rest 55.0～61.0 34.0～37.0 30.0～34.0
Cr 10 20.0～23.0 28.0～31.0 15.0～18.0 18.0～21.0 18.0～21.0
Fe － ≤1.0 ≤1.0 Rest Rest Rest
Temperatura máxima℃ 1300 1200 1250 1150 1100 1100
Punto de fusion ℃ 1400 1400 1380 1390 1390 1390
Densidad g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistividad μΩ·m,20℃ 0.76±0.05 1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
Alargamiento a la ruptura ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Calor especifico J/g.℃ － 0.44 0.461 0.494 0.5 0.5
Conductividad térmica KJ/m.h℃ － 60.3 45.2 45.2 43.8 43.8
Coeficiente de expansión de líneas a×10-6/(20～1000℃) － 18 17 17 19 19
Estructura micrográfica － Austenite Austenite Austenite Austenite Austenite
Propiedades magnéticas － Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic

Form Specification
Wire Diameter=0.025mm~8mm
Flat wire Width=0.40~6.0mm Thick=0.03~0.50mm
Strip width=8~250mm Thick=0.05~3.0mm
Bar Diameter=8~100mm Long=50~1000

Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace
