Product Description:

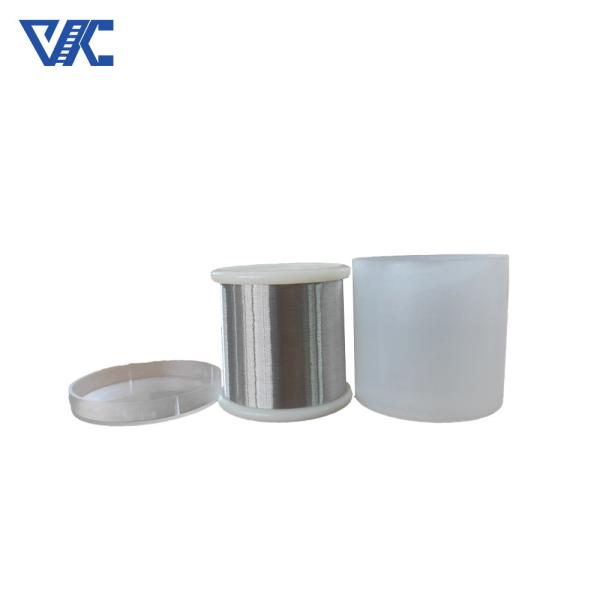

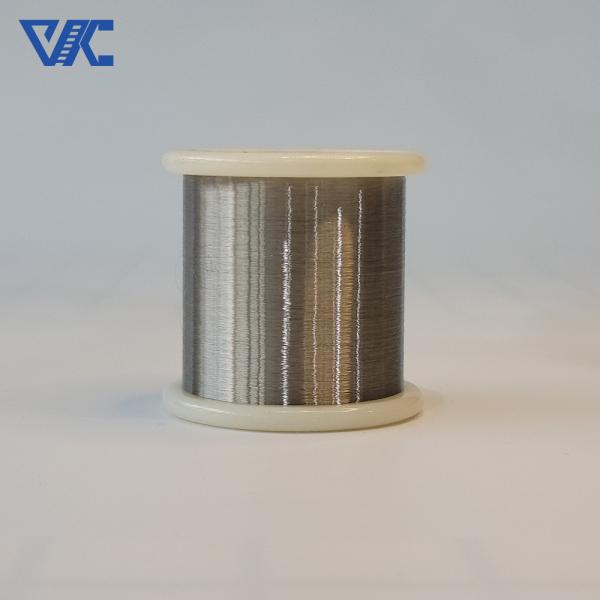

Pure nickel wire is a high-purity metal wire material composed of nickel element with a purity of more than 99.9%. It has excellent chemical stability, corrosion resistance and high temperature oxidation resistance, and is widely used in many fields.
Main feature:
High purity: Pure nickel wire is made of high-quality nickel material with a purity of over 99.9%, ensuring the stability and reliability of the product.
Corrosion resistance: Pure nickel wire has excellent corrosion resistance and shows excellent stability in corrosive media such as acids, alkalis, and salts.
High-temperature anti-oxidation performance: Pure nickel wire exhibits excellent anti-oxidation performance in high-temperature environments and can operate stably in high-temperature environments for a long time.
Excellent electrical conductivity: Pure nickel wire has good electrical conductivity and can be widely used in electronic, electrical and electromagnetic fields.
Easy processability: Pure nickel wire has good plasticity and processability, and can be cut, welded, formed and other processing operations according to actual needs.
Main application areas:
Electronic industry: Pure nickel wire can be used to manufacture resistors, capacitors, electron tubes, electric heating devices and other electronic components, and is widely used in communication equipment, electronic instruments, household appliances and other fields.
Chemical industry: Pure nickel wire is used in the chemical industry as an anti-corrosion material for corrosive media such as catalysts, storage tanks, pipes and valves.
High-temperature field: Pure nickel wire has important applications in the high-temperature field and can be used to manufacture high-temperature stoves, high-temperature heating elements, and high-temperature sensors.
Medical devices: Pure nickel wire is used in the field of medical devices to make artificial joints, dental equipment, and medical guide wires. It is favored because of its good biocompatibility.
Specification
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.8 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.2 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
Physical Data | |
Density | 8.89g/cm3 |
Specific Heat | 0.109(456 J/kg.ºC) |
Electrical Resistivity | 0.096×10-6ohm.m |
Melting Point | 1435-1446ºC |
Thermal Conductivity | 70.2 W/m-K |
Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
Typical Mechanical Properties | |
Mechanical Properties | Nickel 200 |
Tensile Strength | 462 Mpa |
Yield Strength | 148 Mpa |
Elongation | 47% |
Our Production Standard | |||||
Bar | Forging | Pipe | Sheet/Strip | Wire | |
ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
