Specifications
Brand Name :
Victory
Model Number :
Cr20Ni80
Certification :
CE
Place of Origin :
China
MOQ :
3.5
Price :
5-100kg, $20-$30
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
5-20 days
Packaging Details :

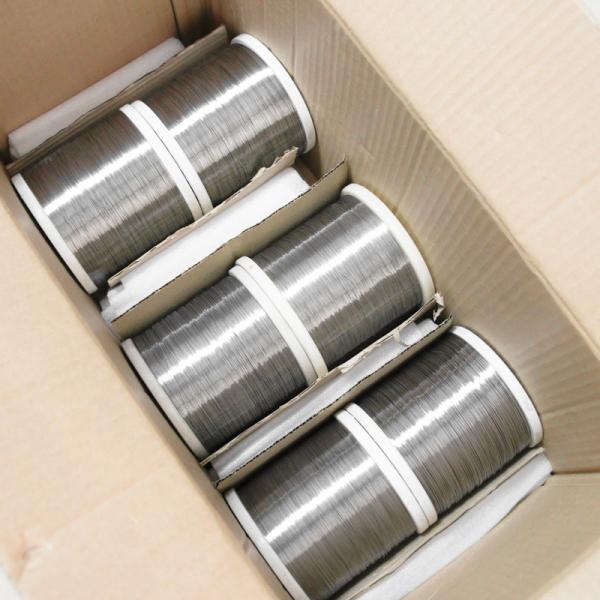

Spool package with Carton box, Coil package with polybag for Resistance wire
Applications :
heater, heating elements, Industry, etc, oven
Nickel(Min) :
77%
Elongation :
≥20%
Melting Point :
1400-1450°C
Electrical Resistivity :
1.1-1.2 μΩm
Resistivity :
1.09+/-0.05
Tensile Strength :
637MPA
Hardness :
HV400-500
Thermal Conductivity :
15-20 W/mK
Name :
NiCr Alloy
Shape :
wire, strip, ribbon, foil, round and flat
Density :
<9.6g/cm3
Material :
nichrome, Nickel Chrome alloy, Cu Ni, NiCr, Chromium
Description

Х20Н80 Ni80Cr20/NiCr 8020 Ni80 nichrome heating resistance wire

Introduction:

The Ni80 Nichrome heating resistance wire typically has the following specifications:
Nickel (Ni): Approximately 80%
Chromium (Cr): Around 20%
Maximum Operating Temperature: Up to 1200°C (2192°F)
Resistivity: Approximately 1.09 μΩ·m
Density: About 8.4 g/cm³
Melting Point: Around 1400°C (2552°F)
Tensile Strength: Typically between 600-900 MPa
Elongation: Generally around 20-35%

Nichrome wire, such as Ni80Cr20 wire, finds applications in various industries and products due to its unique properties. Some common applications of Nichrome wire include:

Heating Elements: Nichrome wire is widely used in heating elements for electric ovens, toasters, space heaters, industrial furnaces, and other heating appliances due to its high electrical resistance and ability to generate heat efficiently.

Resistors: It is used in resistors for regulating electrical current and voltage in electronic circuits.

Industrial Furnaces: Nichrome wire is used in industrial furnaces for high-temperature applications due to its excellent oxidation resistance and durability at elevated temperatures.

2. High temperature performance: Cr20Ni80 alloy wire can work stably in high temperature environments. It has a high melting point and good oxidation resistance, and can withstand high temperature environments in high temperature heating and heating element applications, with a maximum use temperature of up to 1200 degrees Celsius.

3. Resistivity: Cr20Ni80 alloy wire has moderate resistivity, making it a commonly used resistance wire material. Its resistivity is usually in the range of 1.09-1.12 μΩ·m and can be adjusted as needed.

4. Corrosion resistance: Cr20Ni80 alloy wire shows good corrosion resistance in common acid and alkali media. It can resist corrosion by acids and alkalis of general concentrations, but it still needs to be used with caution in special corrosive media.

Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composición Ni 90 Rest Rest 55.0～61.0 34.0～37.0 30.0～34.0
Cr 10 20.0～23.0 28.0～31.0 15.0～18.0 18.0～21.0 18.0～21.0
Fe － ≤1.0 ≤1.0 Rest Rest Rest
Temperatura máxima℃ 1300 1200 1250 1150 1100 1100
Punto de fusion ℃ 1400 1400 1380 1390 1390 1390
Densidad g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistividad μΩ·m,20℃ 0.76±0.05 1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
Alargamiento a la ruptura ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Calor especifico J/g.℃ － 0.44 0.461 0.494 0.5 0.5
Conductividad térmica KJ/m.h℃ － 60.3 45.2 45.2 43.8 43.8
Coeficiente de expansión de líneas a×10-6/(20～1000℃) － 18 17 17 19 19
Estructura micrográfica － Austenite Austenite Austenite Austenite Austenite
Propiedades magnéticas － Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic

Form Specification
Wire Diameter=0.025mm~8mm

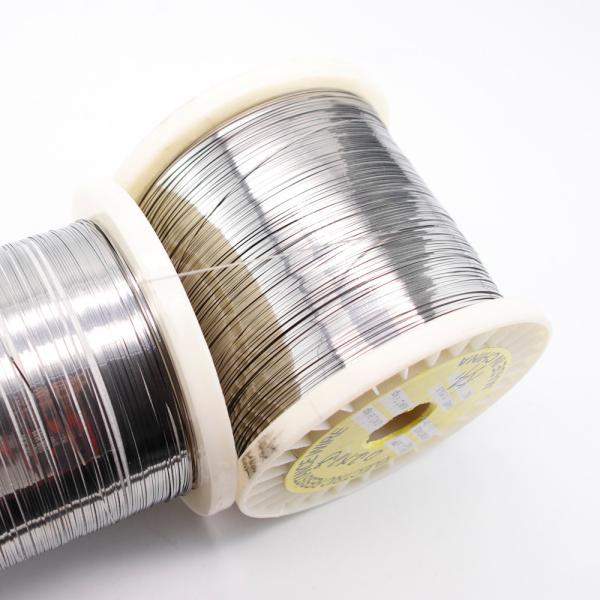

Flat wire Width=0.40~6.0mm Thick=0.03~0.50mm
Strip width=8~250mm Thick=0.05~3.0mm
Bar Diameter=8~100mm Long=50~1000

Application fields:

Due to its high temperature performance and corrosion resistance, Cr20Ni80 alloy wire is widely used in industrial heaters, electric furnace heating elements, hot blast furnaces, resistance heaters, heat treatment equipment and other fields. It is also used to make electric heating elements such as resistance wires, heating wires, and electric heaters.

Service:

We provide comprehensive nickel-chromium alloy technical support and services to ensure the normal operation of our customers' products. Our experienced technical team will provide customers with various services such as installation, maintenance, troubleshooting, and answer any questions they may have about the product. We also provide customized solutions, designing and manufacturing nickel-chromium alloy products according to customer needs. We are committed to ensuring customers are satisfied with their purchases, providing timely support and building great relationships.

Х20Н80 Ni80Cr20/NiCr 8020 Ni80 Nichrome Heating Resistance Wire Х20Н80 Ni80Cr20/NiCr 8020 Ni80 Nichrome Heating Resistance Wire

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

FAQ:

Are you a manufactuer?

Yes, we are the factory and mailny produce heating resistance alloy wire, like Fecral/Nichrome material.
What is the chemical composition of Cr20Ni80 alloy wire?
The chemical composition of Cr20Ni80 alloy wire is approximately 20% chromium (Cr) and 80% nickel (Ni).
What is the diameter range of Cr20Ni80 alloy wire?
The diameter range of Cr20Ni80 alloy wire can be customized according to needs, usually ranging from a few microns to a few millimeters.
