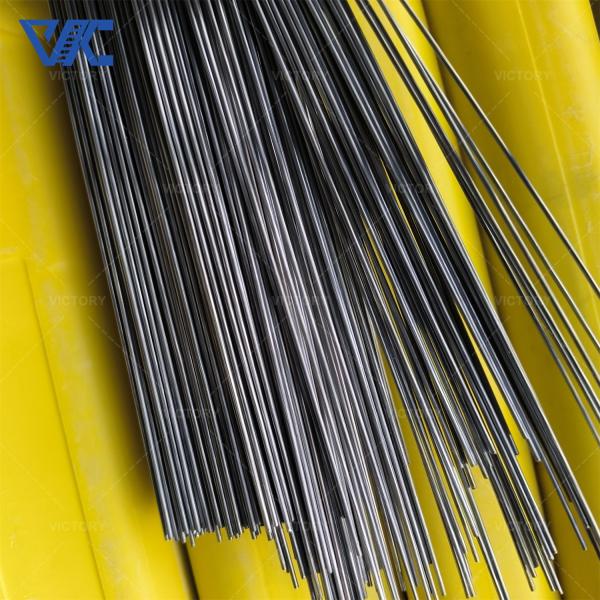

ERNiCrMo-3 ERNiCr-3 ERNiCrMo-4 Welding Nickel Alloy Incoloy 625 800 718 MIG TIG Wire Per Kg Nickel Wire
ERNiCrMo-3 ERNiCr-3 ERNiCrMo-4 Welding Nickel Alloy Incoloy 625 800 718 MIG TIG Wire Per Kg Nickel Wire
ERNiCrMo-3 ERNiCr-3 ERNiCrMo-4 Welding Nickel Alloy Incoloy 625 800 718 MIG TIG Wire Per Kg Nickel Wire
ERNiCrMo-3 ERNiCr-3 ERNiCrMo-4 Welding Nickel Alloy Incoloy 625 800 718 MIG TIG Wire Per Kg Nickel Wire
ERNiCrMo-3 ERNiCr-3 ERNiCrMo-4 Welding Nickel Alloy Incoloy 625 800 718 MIG TIG Wire Per Kg Nickel Wire
ERNiCrMo-3 ERNiCr-3 ERNiCrMo-4 Welding Nickel Alloy Incoloy 625 800 718 MIG TIG Wire Per Kg Nickel Wire
Specifications
Brand Name :
Victory
Model Number :
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-7,ERNiCr-3
Certification :
CE,ROHS,ISO 9001
Place of Origin :
China
MOQ :
15
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
5-21 days
Packaging Details :
Spool package with Carton box, Coil package with polybag
Material :
Ni, Mo, Cr
Elongation :
≥22 %
Density :
8.60 g/cm3
Tensile strength Rm N/mm² :
≥600
Yieldstrength R P0. 2 N/mm² :
≥360
Melting point :
1310-1360℃
Certificates :
AWS A5.14 / ASME SFA A5.14
Description

Standard Welding Nickel Alloy Incoloy 925 926 825 800 Wire Per Kg Nickel Wire

Nickel-based alloy welding wires exhibit excellent resistance to reactive gases, harsh environments, and corrosive reducing acid media. They also possess high strength, good ductility, and the capability for cold and hot deformation, as well as weldability.

Consequently, they find extensive applications in industries such as petrochemicals, metallurgy, nuclear energy, marine development, aerospace, and aviation. These alloys are utilized to address engineering corrosion challenges that general stainless steel and other metals or non-metal materials cannot effectively tackle, making them crucial corrosion-resistant materials.

Nickel-based alloys are characterized by nickel serving as the base metal with the inclusion of alloying elements, offering corrosion resistance in specific environments. When classified based on their chemical composition, these alloys primarily include nickel, nickel-copper alloys, nickel-molybdenum (nickel-molybdenum-iron) alloys, nickel-chromium (nickel-chromium-iron) alloys, nickel-chromium-molybdenum alloys (comprising nickel-chromium-molybdenum and nickel-chromium-molybdenum-copper alloys), and nickel-iron-chromium (iron-nickel-based) alloys.

Pure nickel welding wire ERNi-1 is employed for welding nickel alloys 200 and 201, as well as nickel-plated steel sheets; welding dissimilar materials such as steel and nickel; and surface cladding of steel. Nickel-copper welding wire ERNiCu-7 is utilized for welding Monel 400 alloy itself; welding Monel 400 alloy with steel; and surface cladding of steel.

Chemical Properties

C Si Mn Cr P Ni
≤0.01 ≤0.2 ≤0.5 22.0-24.0 ≤0.015 Rem
Al Mo Fe Cu S Co
0.10-0.40 15.0-16.50 ≤0.5 ≤0.1 <0.01 <0.20

Typical Welding Parameters
Diameter Process Volt Amps (flat) Amps (V/OH)
inch (mm)
0.035 0.9 GMAW 26-29 150-190 Spray Transfer 100% Argon
0.045 1.2 GMAW 28-32 180-220 Spray Transfer 100% Argon
1/16 1.6 GMAW 29-33 200-250 Spray Transfer 100% Argon
1/16 1.6 GTAW 14-18 90-130 100% Argon
3/32 2.4 GTAW 15-20 120-175 100% Argon
1/8 3.17 GTAW 15-20 150-220 100% Argon

Tensile Strength 109 Ksi 790 MPA
Yield Strength 68 Ksi 470 MPA
Elongation 40-45%
Density g/cm3 8.60 g/cm3
Melting Point ℃ 1300-1360℃
Coefficient of Expansion. 21-93 Co, μm/m * Co 11.90

Item
ERNiCrMo-3
ERNiCrMo-4
ERNiCrMo-13
ERNiCrFe-7
ERNiCr-3
ERNiCu-7
ERCuNi
ERNi-1
C
0.1
0.02
0.01
0.04
0.1
0.15
0.03
0.15
Mn
0.05
1
0.5
1
2.5-3.5
4
0.5-1.0
1
Fe
5
4-7
1.5
7-11
3
2.5
0.65
1
P
0.02
0.04
0.015
0.02
0.03
0.02
0.01
0.03
S
0.015
0.03
0.005
0.015
0.015
0.015
0.01
0.015
Si
0.05
0.08
0.1
0.5
0.5
1.25
0.15
0.75
Cu
0.5
0.5
N/A
0.3
0.5
rest
rest
0.25
Ni
≥58
rest
rest
rest
≥67
62-69
30-32
≥93
Co
N/A
2.5
0.3
N/A
N/A
N/A
N/A
N/A
Al
0.4
N/A
0.1-0.4
1.1
N/A
1.25
0.15
1.5
Ti
0.4
N/A
N/A
1
0.75
1.5-3
0.5
2-3.5
Cr
20-23
14.5-16.5
22-24
28.5-31
18.0-22.0
N/A
N/A
N/A
Nb+Ta
3.5-4.15
N/A
1.8-2.5
0.01
2.0-3.0
N/A
N/A
N/A
Mo
8.0-10
15-17
15-16
0.5
N/A
N/A
N/A
N/A
V
N/A
0.35
N/A
N/A
N/A
N/A
N/A
N/A
W
N/A
3.-4.5
N/A
N/A
N/A
N/A
N/A
N/A
Rest
≤0.50
≤0.50
≤0.50
≤0.50
≤0.50
≤0.50
≤0.50
≤0.50
