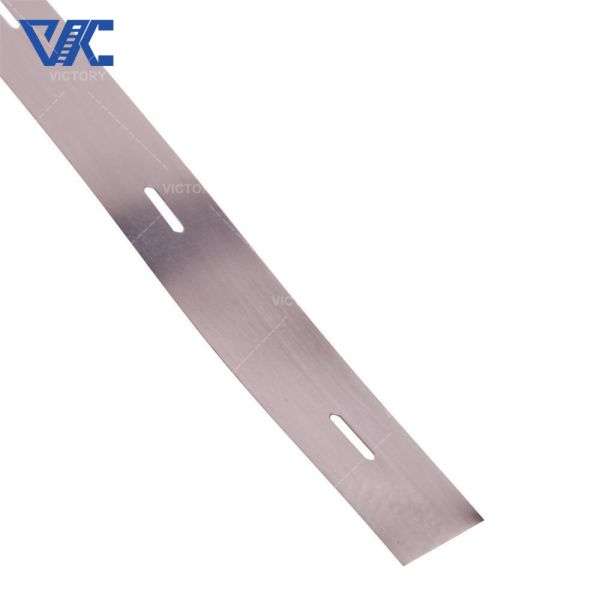

Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
Specifications
Brand Name :
Victory
Model Number :
Ni200 Ni201
Place of Origin :
China
MOQ :
2 Kg
Price :
1 - 49 kilograms US$35.00
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
7 to 20 Days
Packaging Details :
Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case
Type :
Pure Nickel Strip
Density (g/cm3) :
8.9 g/cm3
Melting Point(℃) :
1435-1446 ℃
Condition :
Bright,soft
Surface :
Bright
Material :
Nickel
Material Purity :
>99.9%
Conductor :
Pure Nickel Connector
Metal :
Nickel
Ni(min) :
99.5%
Application :
Chemical Industry，Battery Assembly
Description

Product Description:

Pure nickel strip is a strip material made of high-purity nickel metal. Its main component is nickel, usually with a purity of 99% or higher. Pure nickel belt has excellent corrosion resistance and can resist erosion by corrosive media such as acids, alkalis, and salt solutions.Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068

This makes pure nickel strips widely used in the chemical industry for manufacturing chemical storage tanks, pipes, valves and other equipment.

In addition, pure nickel tape also has excellent conductive properties and is one of the important conductive materials in the electronics industry. It has low resistivity and good electrical conductivity, making it suitable for manufacturing circuit boards, connectors, electrodes and conductive components, etc. Pure nickel ribbon also plays an important role in the battery manufacturing and energy fields, where it is used to make lithium-ion batteries, fuel cells, solar cells, etc.

Corrosion resistance:

The corrosion resistance of pure nickel strips in high temperature environments can be improved by coating or covering materials. Coatings or cladding materials can provide an additional layer of protection against corrosion and reduce direct contact with corrosive media, thus extending the service life of pure nickel strips.

The following are some common coatings or cladding materials that can be used to improve the high temperature corrosion resistance of pure nickel strip:

1. Oxide layer: At high temperatures, an oxide layer can form on the surface of pure nickel strips. This oxide layer can provide a certain degree of corrosion protection and prevent further oxidation reactions from occurring. If higher corrosion resistance is required, the quality and thickness of the oxide layer can be improved by controlling oxidation conditions, oxidants, and atmosphere.

2. Metal coating: Applying a layer of corrosion-resistant metal coating, such as nickel-chromium alloy, aluminum, titanium, etc., can improve the corrosion resistance of pure nickel strips. These coatings provide better oxidation and corrosion resistance while maintaining the high-temperature strength of pure nickel.

3. Ceramic coating: Some ceramic materials, such as alumina, zirconia, silicon carbide, etc., have excellent high-temperature corrosion resistance. Coating these ceramic materials provides increased resistance to corrosion and wear.

Coating materials: Applying coating materials such as ceramic fiber, high-temperature glue or ceramic paper to the surface of pure nickel strips can provide certain isolation and protection effects and reduce the contact between corrosive media and pure nickel strips.

Heat treatment process:

Heat treatment can have an impact on the corrosion resistance of pure nickel strips. The specific impact depends on the heat treatment method and conditions used. Here are some common effects:

1. Grain boundary structure and grain size: Heat treatment can change the grain boundary structure and grain size of pure nickel ribbons. Proper heat treatment can lead to the clarity of grain boundaries and refinement of grains, thereby improving the strength and corrosion resistance of the material. Fine grains and clear grain boundaries can reduce erosion by corrosive media and the formation of cracks.

2. Chemical composition uniformity: Solution treatment or aging treatment during heat treatment can improve the chemical composition uniformity of pure nickel strips. Uniform chemical composition can improve the corrosion resistance of materials and avoid local corrosion caused by local composition deviation.

3. Residual Stresses: Heat treatment may introduce or eliminate residual stresses in pure nickel strip. Residual stress may cause increased or decreased susceptibility to stress corrosion cracking, thereby affecting corrosion resistance. Proper control of heat treatment conditions can help reduce residual stress and improve corrosion resistance.

4. Phase Changes and Precipitate Formation: Certain heat treatment conditions may lead to phase changes or the formation of precipitates in pure nickel ribbon. Phase changes and the formation of precipitates can change the crystal structure and chemical composition of the material, thereby affecting its corrosion resistance. Sometimes, the corrosion resistance of pure nickel strips can be improved by properly controlling phase changes and precipitate formation.

Technical Parameters:

Attribute Value
Application Chemical Industry, Battery Assembly
Conductor Pure Nickel Connector
Melting Point(℃) 1435-1446 ℃
Ultimate Strength (≥ MPa) 462
Power Or Not Not
Type Pure Nickel Strip
Material Purity >99.9%
Purity 99.5%Min/ 99.9%Min(customized)
Elongation (≥ %) 45
Resistance (μΩ.m) 1.5

Grade
Ni+Co
Cu
Si
Mn
C
Mg
S
P
Fe
N4
99.8
0.015
0.03
0.002
0.01
0.01
0.001
0.001
0.04
N6
99.6
0.10
0.10
0.05
0.10
0.10
0.005
0.002
0.10
Ni201
≥99.0
≤0.25
≤0.35
≤0.35
≤0.02
/
≤0.01
/
≤0.40
Ni200
≥99.2
≤0.25
≤0.35
≤0.35
≤0.15
/
≤0.01
/
≤0.40

Material
18650/21700/26650/32650 nickel strip
Dimension
1P to 9P
Available Space
18.5mm,19mm, 19.5mm, 20.2mm
Usage
Use for 18650 battery pack
Package
Nickel strip in roll pack into carton
Physical properties
High temperature resistant, corrosion resistance,
Technical support
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
Functions
Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
Advantage
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.

Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068 Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068

FAQ:

What is the maximum service temperature of pure nickel belt in high temperature environment?

Pure nickel tape can be used at temperatures up to 1000°C and has good high temperature performance.

What is the custom width and thickness range for pure nickel strip?

Customized width and thickness ranges can be negotiated and determined according to customer needs.

Do you provide cutting services for pure nickel strips?

Yes, pure nickel strip suppliers usually provide cutting services to meet customer requirements.
​
