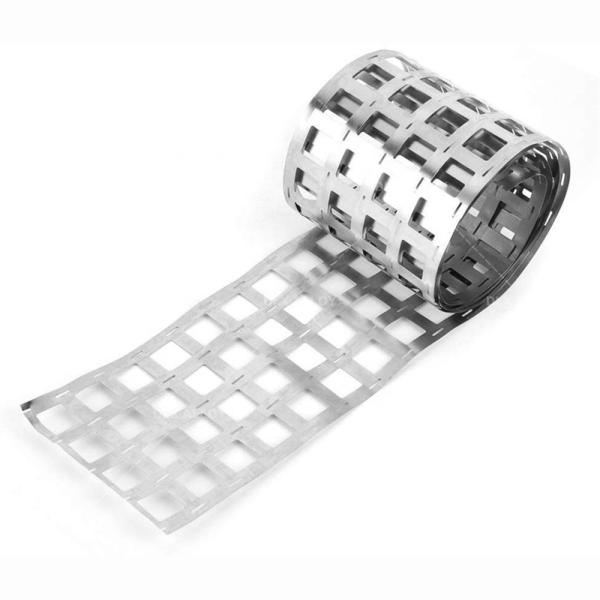

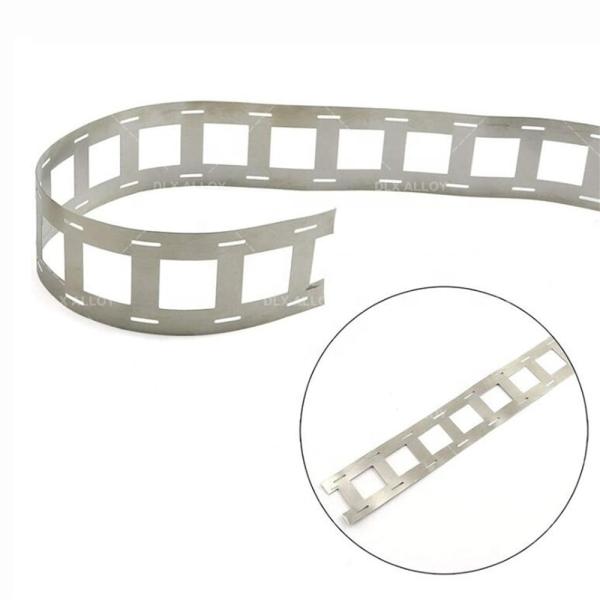

Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650
Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650
Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650
Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650
Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650
Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650
Specifications
Brand Name :
Victory
Model Number :
N4,N6,Ni200,Ni201
Certification :
ISO,TUV, RoHS
Place of Origin :
China
MOQ :
2kg
Price :
1 - 49 kilograms US$35.00
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
5-21 days
Packaging Details :
Spool package with Carton box, Coil package with polybag,
Product name :
Pure Nickel Strip
Grade :
N4,N6,Ni200,Ni201
Metal :
Nickel
Ni(min) :
99.5%
Resistance (μΩ.m) :
1.5
Ultimate Strength (≥ MPa) :
462
Elongation (≥ %) :
45
Surface :
Bright
Density (g/cm3) :
8.9 g/cm3
Resistivity :
1.35±0.07
Melting Point(℃) :
1435-1446 ℃
Application :
Chemical Industry，Battery Assembly
M.O.Q :
2KG
Description

Introduction:

1. Our pure nickel strip is a top-of-the-line product that offers exceptional performance and versatility for a wide range of applications.

2. With its superior corrosion resistance, it can withstand harsh environments, ensuring long-lasting durability. The strip's excellent electrical conductivity enables efficient energy transfer and minimizes power losses in electrical systems.

3. Additionally, its high thermalOur pure nickel strip is a high-quality product that offers exceptional performance and versatility for a wide range of applications.

4. With superior corrosion resistance, it can withstand harsh environments, ensuring long-lasting durability. The strip's excellent electrical conductivity enables efficient energy transfer and minimizes power losses in electrical systems.

5. Additionally, its high thermal conductivity allows for effective heat dissipation, making it suitable for applications that require temperature management.

6. With customizable options and easy formability, our pure nickel strip is a reliable choice for various industries, including electronics, automotive, and aerospace.

Characteristics:

1. Excellent corrosion resistance: Pure nickel strip exhibits exceptional resistance to corrosion, ensuring long-lasting durability even in harsh environments.

2. High electrical conductivity: It offers excellent electrical conductivity, enabling efficient flow of electrical current with minimal resistance.

3. Good thermal conductivity: Pure nickel strip has high thermal conductivity, facilitating effective heat dissipation and temperature management.

4. Customizable dimensions: It is available in various dimensions, allowing for customization to meet specific project requirements.

5. Easy formability and weldability: Pure nickel strip is highly ductile and malleable, making it easy to shape, bend, and form. It also exhibits excellent weldability for secure connections.

6. Versatile applications: Pure nickel strip finds application in diverse industries, including battery manufacturing, electronics, automotive, aerospace, and more, due to its reliability and performance.

Specification:
Grade
Ni+Co
Cu
Si
Mn
C
Mg
S
P
Fe
N4
99.8
0.015
0.03
0.002
0.01
0.01
0.001
0.001
0.04
N6
99.6
0.10
0.10
0.05
0.10
0.10
0.005
0.002
0.10
Ni201
≥99.0
≤0.25
≤0.35
≤0.35
≤0.02
/
≤0.01
/
≤0.40
Ni200
≥99.2
≤0.25
≤0.35
≤0.35
≤0.15
/
≤0.01
/
≤0.40

Material
18650/21700/26650/32650 nickel strip
Dimension
1P to 9P
Available Space
18.5mm,19mm, 19.5mm, 20.2mm
Usage
Use for 18650 battery pack
Package
Nickel strip in roll pack into carton
Physical properties
High temperature resistant, corrosion resistance,
Technical support
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
Functions
Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
Advantage
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.

Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650

Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650

Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650 Custom Spot Welding Tab Battery Contact Pure Nickel Strip For 18650
