Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding
Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding
Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding
Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding
Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding
Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding
Specifications
Brand Name :
Victory
Model Number :
N4,N6,Ni200,Ni201
Certification :
ISO,TUV, RoHS
Place of Origin :
China
MOQ :
2kg
Price :
1 - 49 kilograms US$35.00
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
5-21 days
Packaging Details :

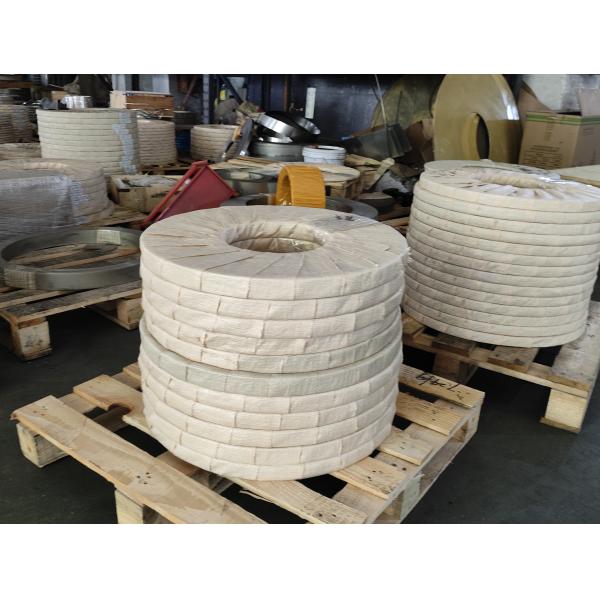

Spool package with Carton box, Coil package with polybag,
Product name :
Pure Nickel Strip
Grade :
N4,N6,Ni200,Ni201
Metal :
Nickel
Ni(min) :
99.5%
Resistance (μΩ.m) :
1.5
Ultimate Strength (≥ MPa) :
462
Elongation (≥ %) :
45
Surface :
Bright
Density (g/cm3) :
8.9 g/cm3
Resistivity :
1.35±0.07
Melting Point(℃) :
1435-1446 ℃
Application :
Chemical Industry，Battery Assembly
M.O.Q :
2KG
Description

Introduction:

1. Pure nickel strip, also known as nickel ribbon or nickel tape, is a versatile metal strip made from high-purity nickel.

2. It is widely used in various industries due to its excellent electrical conductivity, corrosion resistance, and heat resistance properties.

3. The strip is typically manufactured through a process of rolling and annealing, resulting in a uniform thickness and smooth surface.

4. Pure nickel strip is commonly available in different widths and thicknesses to suit specific application requirements.


Features:

Pure nickel strip is characterized by the following key features:

1. Excellent Electrical Conductivity: Pure nickel strip exhibits high electrical conductivity, making it an ideal choice for applications that require efficient current flow and low resistance.

2. Corrosion Resistance: Pure nickel strip possesses exceptional resistance to corrosion and oxidation, even in harsh environments.

3. Heat Resistance: Nickel has excellent heat resistance properties, and pure nickel strip can withstand high temperatures without significant deformation or loss of performance.

Specification:
Grade
Ni+Co
Cu
Si
Mn
C
Mg
S
P
Fe
N4
99.8
0.015
0.03
0.002
0.01
0.01
0.001
0.001
0.04
N6
99.6
0.10
0.10
0.05
0.10
0.10
0.005
0.002
0.10
Ni201
≥99.0
≤0.25
≤0.35
≤0.35
≤0.02
/
≤0.01
/
≤0.40
Ni200
≥99.2
≤0.25
≤0.35
≤0.35
≤0.15
/
≤0.01
/
≤0.40

Material

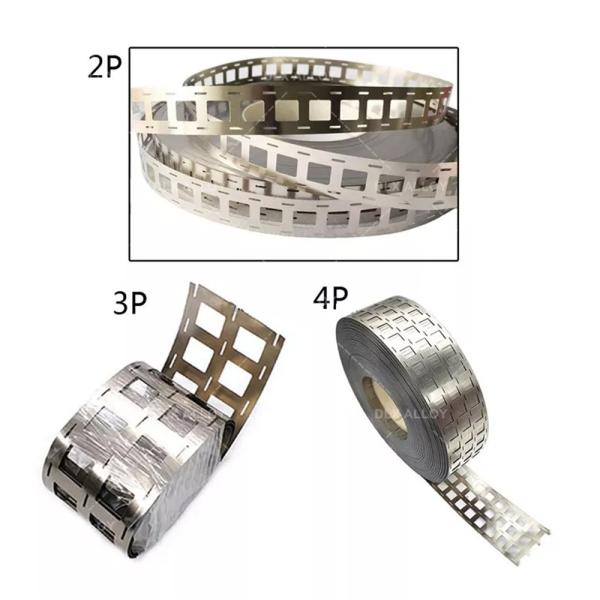

18650/21700/26650/32650 nickel strip
Dimension
1P to 9P
Available Space
18.5mm,19mm, 19.5mm, 20.2mm
Usage
Use for 18650 battery pack
Package
Nickel strip in roll pack into carton
Physical properties
High temperature resistant, corrosion resistance,
Technical support
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
Functions
Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
Advantage
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.

Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding

Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding

Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding Custom Pure Nickel Strip 6mm 8mm 10mm For 18650 21700 Battery Welding
