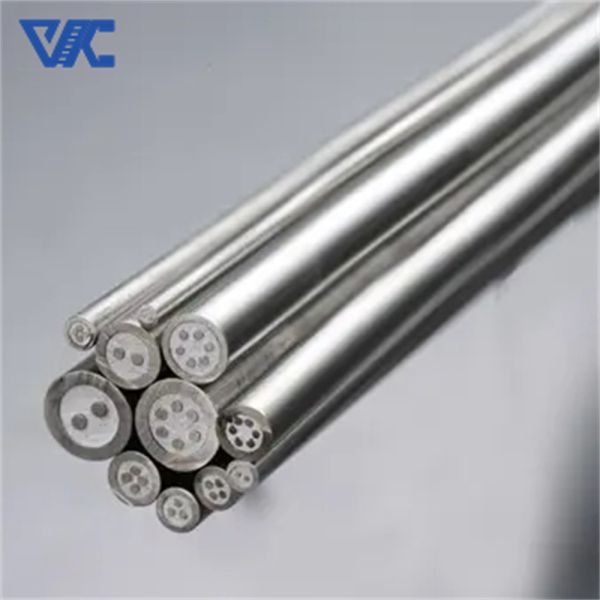

99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator
Specifications
Brand Name :
Victory
Model Number :
K,N,E,J,T,B,R,S Types
Certification :
CE,ROHS,ISO 9001
Place of Origin :
China
MOQ :
5 Kg
Price :
50 - 499 meters $3.00
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 - 999 meters $2.88
Delivery Time :
5-21 days
Packaging Details :
in coils, carton and wooden case.
Product name :
MI Thermocouple Cable
Warranty :
1 Year
Conductor Material :
NiCr-NiSi,NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Kon
Sheath material :
SS304,SS321, SS316, SS310, INCL600,601, Nicrobell,SS446
Dia(mm) :
0.25mm to 12.7mm
Insulator :
99.6% high purity MgO
Temperature range :
0~1100(℃)
Size :
Customized Size
Customized support :
OEM, ODM, OBM, Software reengineering
Application :
Temperature Measuring
Description

MI Thermocouple Cable is a mineral insulated thermocouple cable that provides reliable temperature measurement and control solutions. Its models include K, N, E, J, T, B, R, S Types, which are suitable for industrial furnaces, chemical plants, power equipment, metallurgical engineering, laboratories and other fields. Excellent high temperature resistance and interference immunity, parameters include wire diameter, mineral insulation material, cable length and available thermocouple types. When purchasing, you can select the appropriate model and specifications based on specific application needs to ensure accurate and stable temperature monitoring.

Code
Wire Component of the thermocouple
+Positive leg
- Negative Leg
N
Ni-Cr-Si(NP)
Ni-Si-magnesium (NN)
K
Ni-Cr(KP)
Ni-Al(Si) (KN)
E
Ni-Cr(EP)
Cu-Ni (EN)
J
Iron (JP)
Cu-Ni (JN)
T
Copper (TP)
Cu-Ni (TN)
B
Platinum Rhodium-30%
Platinum Rhodium -6%
R
Platinum Rhodium-13%
Platinum
S
Platinum Rhodium -10%
Platinum

Material
Type
Grade
Working temperature (deg)
Tolerance
Standard
Long Term
Short Term
NiCr-NiSi
K
1
-40~1100
-40~1300
±1.5 deg
GB/T 2614-1998
2
±2.5 deg
NiCr-CuNi
E
1
-40~800
-40~900
±1.5 deg
GB/T 4993-1998
2
±2.5 deg
Fe-Constantan
J
1
-40~600
-40~800
±1.5 deg
GB/T 4994-1998
2
±2.5 deg
Cu-CuNi
T
1
-200~300
-200~400
±0.5 deg
GB/T 2903-1998

Outer Sheath(mm)
core wire Dia.( mm)
Outer Sheath(mm)o core wire Dia.( mm)
Length(m)
Out Dia
Wall Thickness
K,N,E,J,T Types
S,R,B Types
K,N Types
E,J,T Types
S,R Types
B Types
0.5
0.05-0.10
0.08-0.12
...
SS304,
SS321,
SS316,
SS310,
INCL600
SS30,
SS32,
SS316
INCL60,
INCL800
INCL60,
INCL800
500
1.0
0.10-0.20
0.15-0.20
...
300
1.5
0.15-0.25
0.23-0.30
...
200
1.6
0.16-0.26
0.26-0.36
...
200
2.0
0.25-0.35
0.40-0.50
0.25-.030
180
3.0
0.38-0.48
0.50-0.60
0.30-0.40
80
3.2
0.48-0.58
0.58-0.68
0.30-0.40
75
4.0
0.52-0.62
0.60-0.70
0.35-0.40
70
4.8
0.73-0.83
0.75-0.85
0.40-0.45
40
5.0
0.78-0.88
0.80-0.90
0.40-0.45
40
6.0
0.98-1.08
0.90-1.10
0.45-0.50
30
6.4
1..05-1.15
1.02-1.12
0.45-0.50
30
8.0
1.30-1.44
1.30-1.40
0.45-0.50
20
12.7
1.75-1.90
1.95-2.05
...
10
